Thermal Limiting Fuse: Service and Repair

1. Remove the bolt, field coil terminal, and retainer.

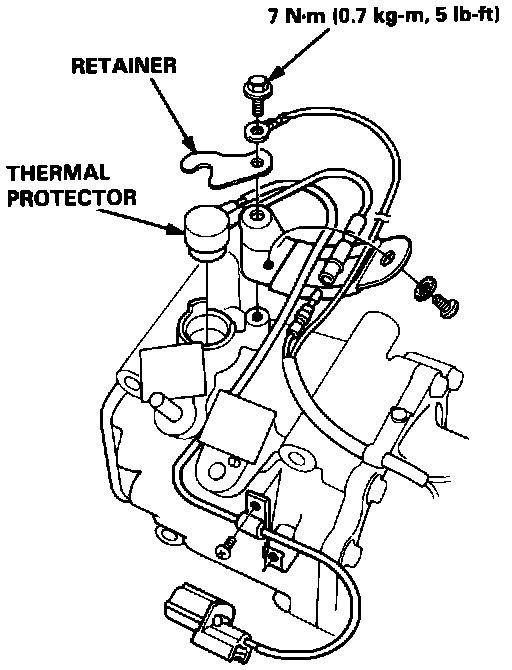

Thermal Protector Removal:

2. Remove the thermal protector. Remove the residue of silicone sealant from the top of thermal protector.

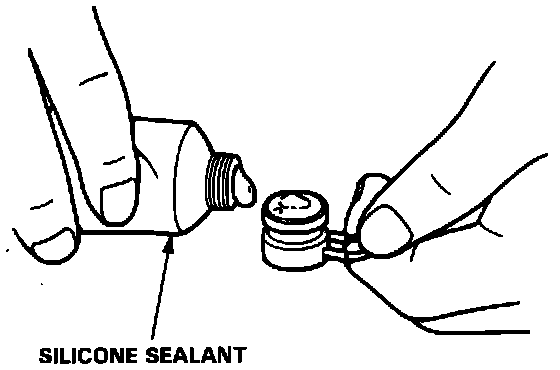

Silicon Sealant Application To Thermal Protector:

3. Apply silicone sealant to the top of the thermal protector.
4. Install in the reverse order of removal.
