Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> System Pressure Testing and Diagnosis

System Pressure Testing and Diagnosis

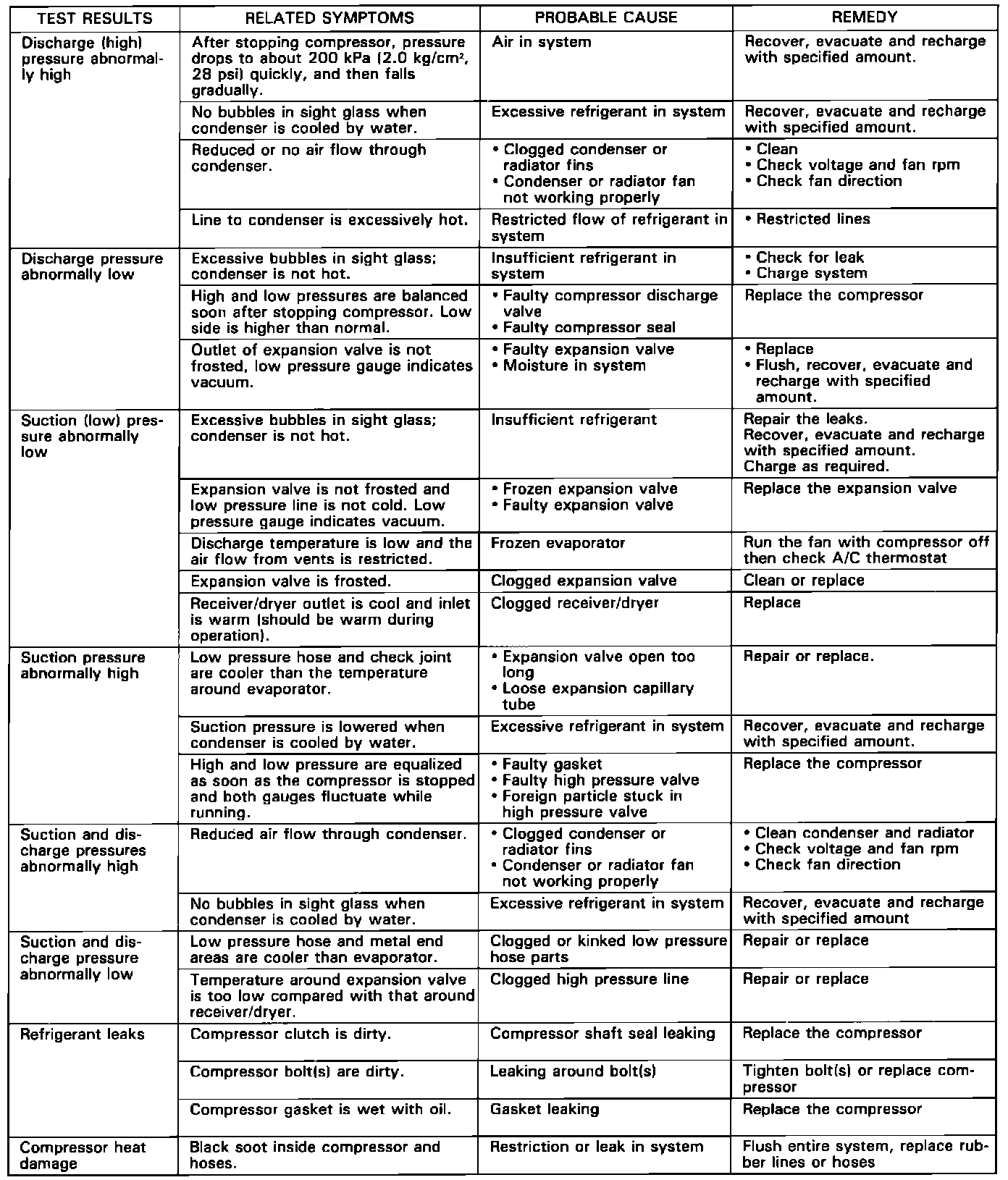

A/C System Pressure Test Chart:
