Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom >> A/C Clutch and Both Cooling Fans Do Not Come on >> Part 1 of 3

Part 1 of 3

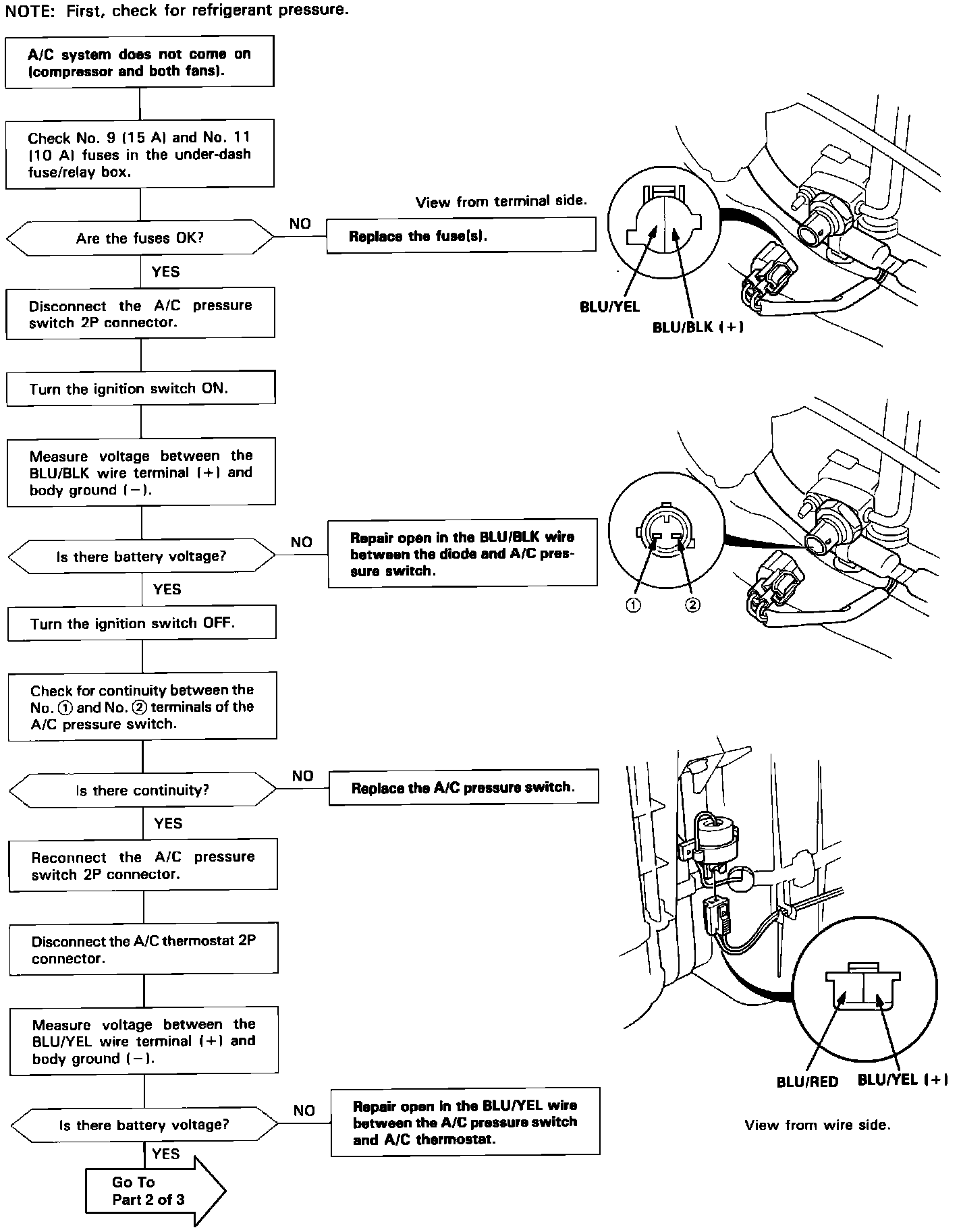

A/C System Inoperative (Compressor And Both Fans (Part 1 Of 3)):
