Control Assembly: Service and Repair

Heater Control Panel Removal:

1. Remove the front console.
2. Remove the stereo radio/cassette player.
3. Disconnect the air mix control cable from the heater unit, refer to Air Mix Control Cable.

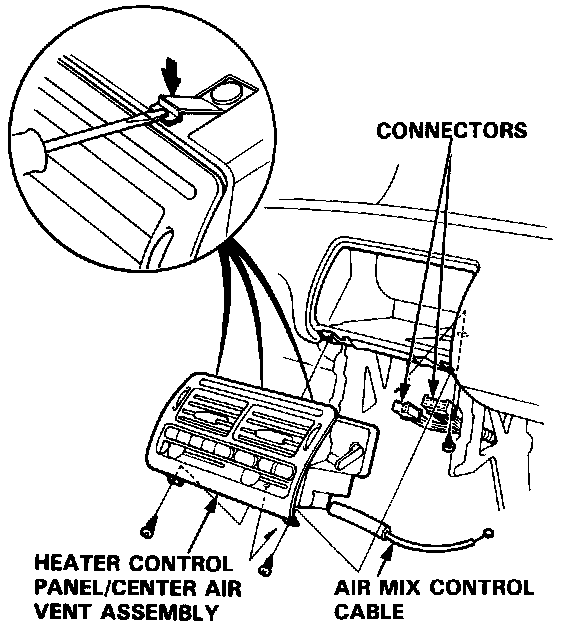

4. Remove the three self-tapping screws. Disconnect the connectors and remove the heater control panel/center air vent assembly.

NOTE: The locking tabs are on the bottom of the connectors.

Heater Control Panel Removal From Center Air Vent:

5. Remove the two self-tapping screws, and remove the heater control panel from the center air vent.
6. Install in the reverse order of removal, and refer to Air Mix Control Cable for installation of the air mix control cable. If necessary, adjust the heater valve cable, refer to Heating and Air Conditioning/Temperature Control Cable/Adjustments.
