Heater - Blower Motor Noise

Bulletin No.
95-011

Issue Date
FEB 21, 1995

Model:
ACCORD
CIVIC
DEL SOL
PRELUDE

Applicable To
See VEHICLES
AFFECTED

File Under
ELECTRICAL

Blower Motor Noise

SYMPTOM

The blower motor makes a high pitched-noise after running for 15 to 30 minutes on speed 2 or 3. The frequency of the noise is very high and, therefore, not audible to everyone.

PROBABLE CAUSE

The blower motor brushes are vibrating.

VEHICLES AFFECTED

1994 Accord

4-Door - Thru VIN JHMCD5...RC108166
1HGCD5...RA161285

2-Door - Thru VIN 1HGCD7...RA049970
Wagon - Thru VIN 1HGCE1...RA010149

1992-94 Civic

4-Door - Thru VIN 1HGEG8...RL056199
JHMEG8...RS017038
JHMEH9...RS014811

3-Door - Thru VIN 2HGEH...RH525709

2-Door - Thru VIN 1HGEJ...RL032667
1HGEJ...RL030207
2HGEJ...RH553868

1992-94 del Sol

S - Thru VIN JHMEH6...RS007660

Si - Thru VIN JHMEG1...RS006425

VTEC - Thru VIN JHMEG2..RS002967

1992-94 Prelude

S - Thru VIN JHMBA8...RC004437

Si - Thru VIN JHMBB2...RC008222

VTEC - Thru VIN JHMBB1...RC001693

CORRECTIVE ACTION





Replace the blower motor as described in the appropriate service manual.

PARTS INFORMATION

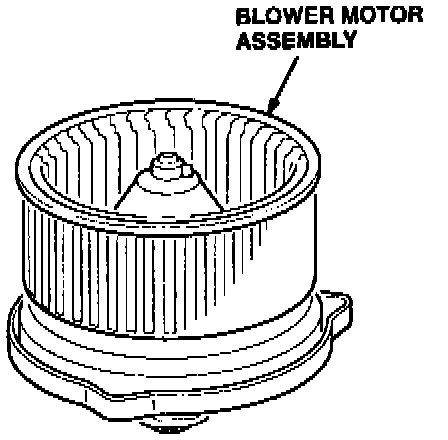

Blower motor assembly:

P/N 79310-SR3-A01, H/C 3892916

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

Operation number: 612105

Flat rate time: 0.4 hour - Prelude
0.2 hour - Accord, Civic, and del Sol

Failed part: P/N 79310-SR3-A01, H/C 3892916

Defect code: 042

Contention code: B07
