Air Door Cable: Service and Repair

Air Mix Control Cable Replacement:

Air Mix Control Cable Replacement

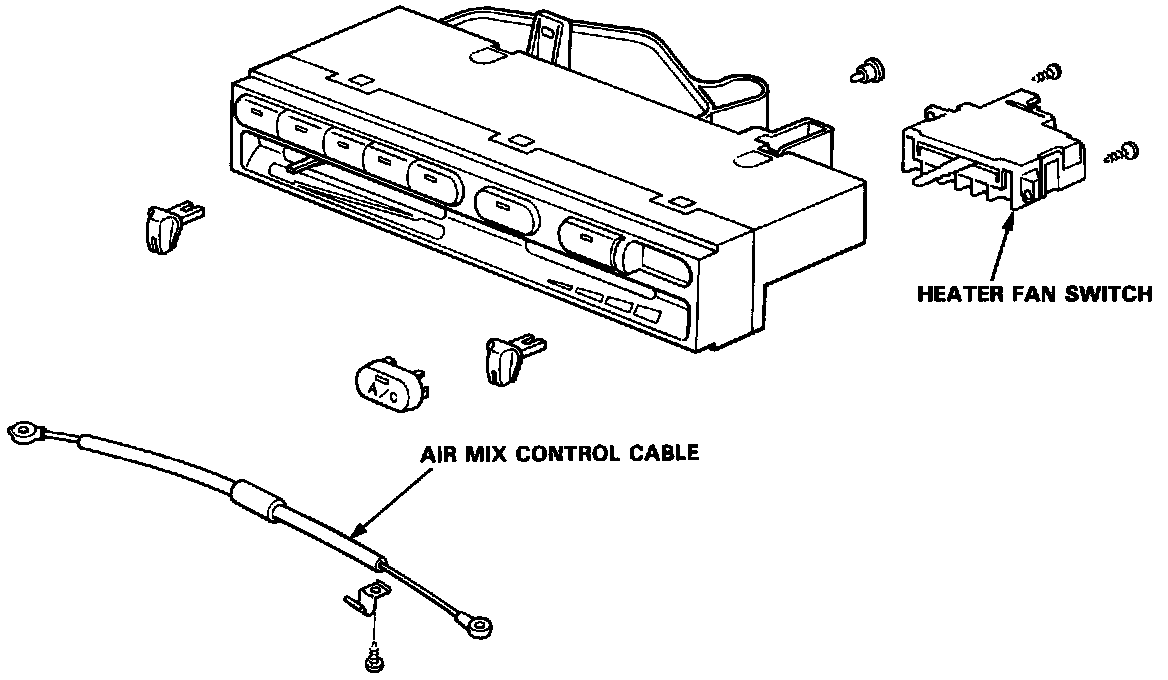

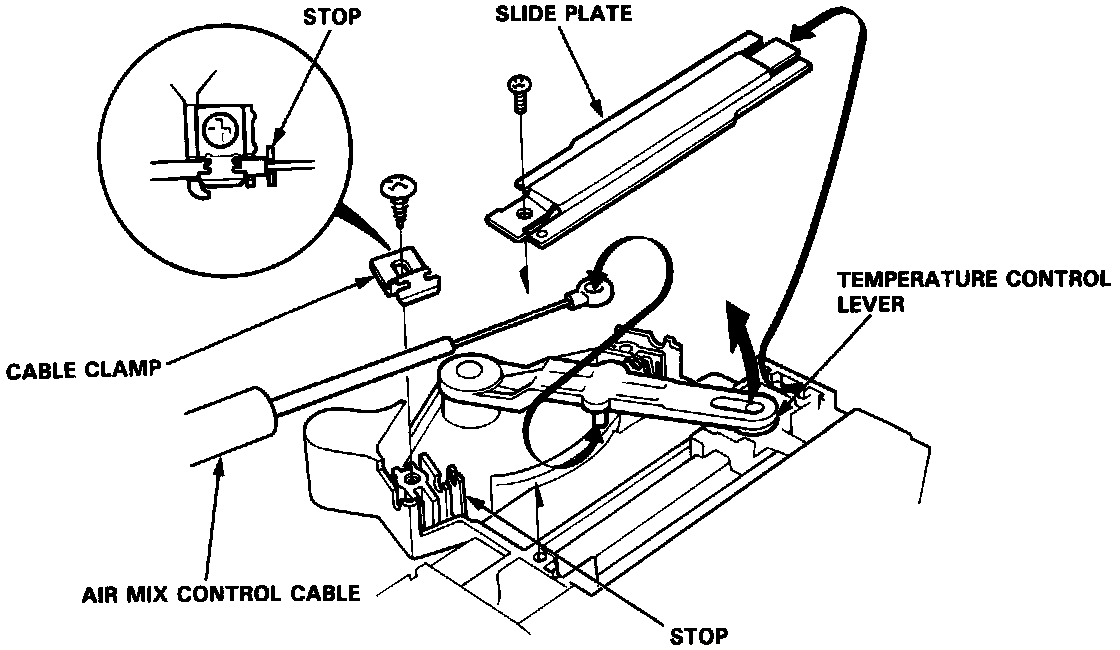

1. Remove the screw and slide plate.
2. Remove the self-tapping screw and cable clamp.

Air Mix Control Cable Removal:

3. Lift the end of the temperature control lever up and remove the air mix control cable.
4. Install in the reverse order of removal, and:
- Be sure the end of the cable housing is against the stop before tightening the cable clamp.
- After assembly, check that the temperature control lever slides smoothly through the full stroke from right to left.
