Ignition Timing: Adjustments

1. Remove rubber cap from timing inspection window located on rear of cylinder block.
2. Start and run engine until it reaches normal operating temperature.

Service Check Connector / Data Link Connector:

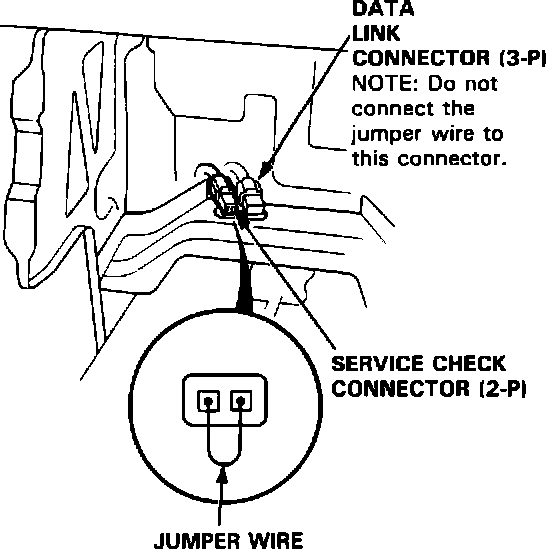

3. Pull out the SERVICE CHECK CONNECTOR located under the middle of the dash. Connect the BLU/WHT and BRN/WHT terminals with a jumper wire.
4. Remove rubber plug from access WINDOW at the flywheel/drive plate housing.

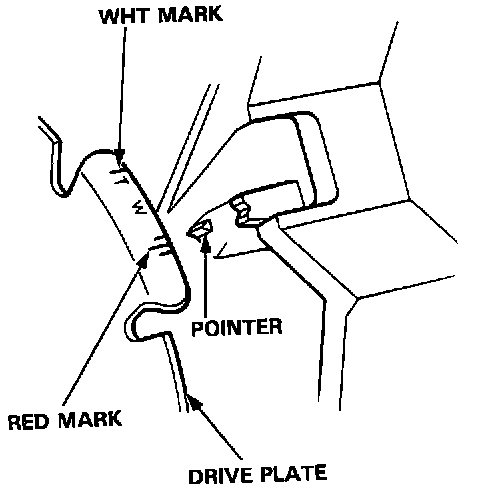

5. Connect a timing light to the # 1 ignition wire. Point the light toward the pointer on the flywheel (M/T), or on the drive plate (A/T).

Ignition Timing Marks:

IGNITION TIMING
15 +/- 2° BTDC (Red mark) @ 700 +/- 50 RPM in neutral

Adjusting Ignition Timing:

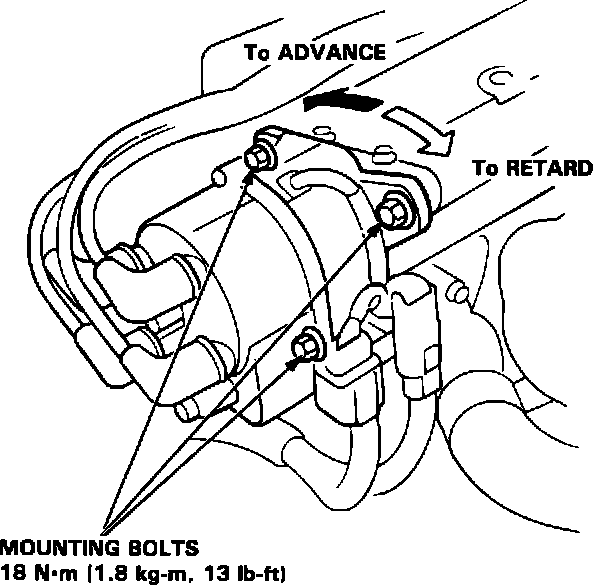

6. Adjust ignition timing by loosening the distributor hold down bolts. Turn the distributor clockwise to retard and counter clockwise to advance the ignition timing.

7. Tighten the distributor hold down bolts and recheck the ignition timing.

8. Remove the jumper wire from the ignition timing connector, install the cap to the connector, and install the rubber cap on the engine block timing window.
