Torque Specifications

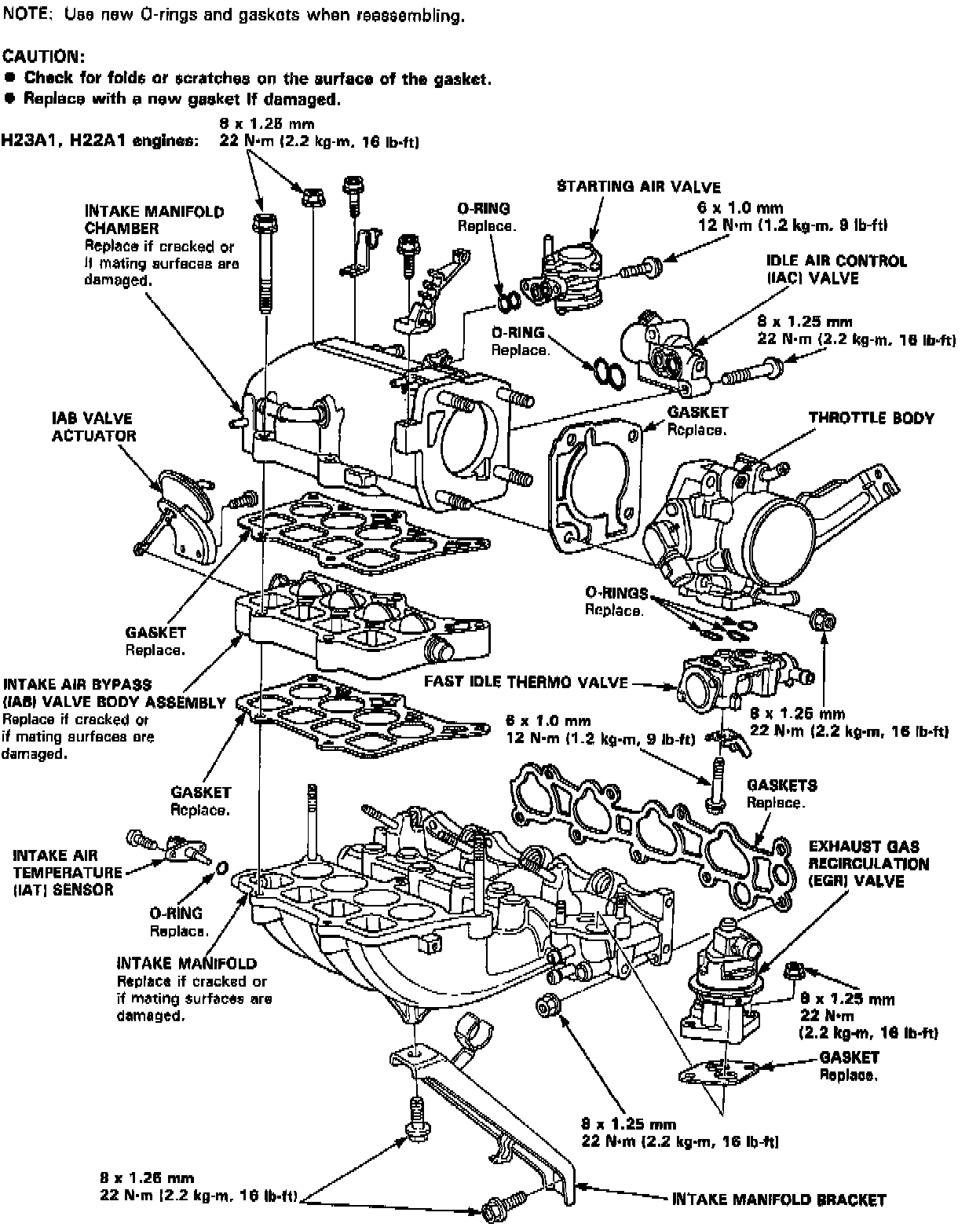

Intake:

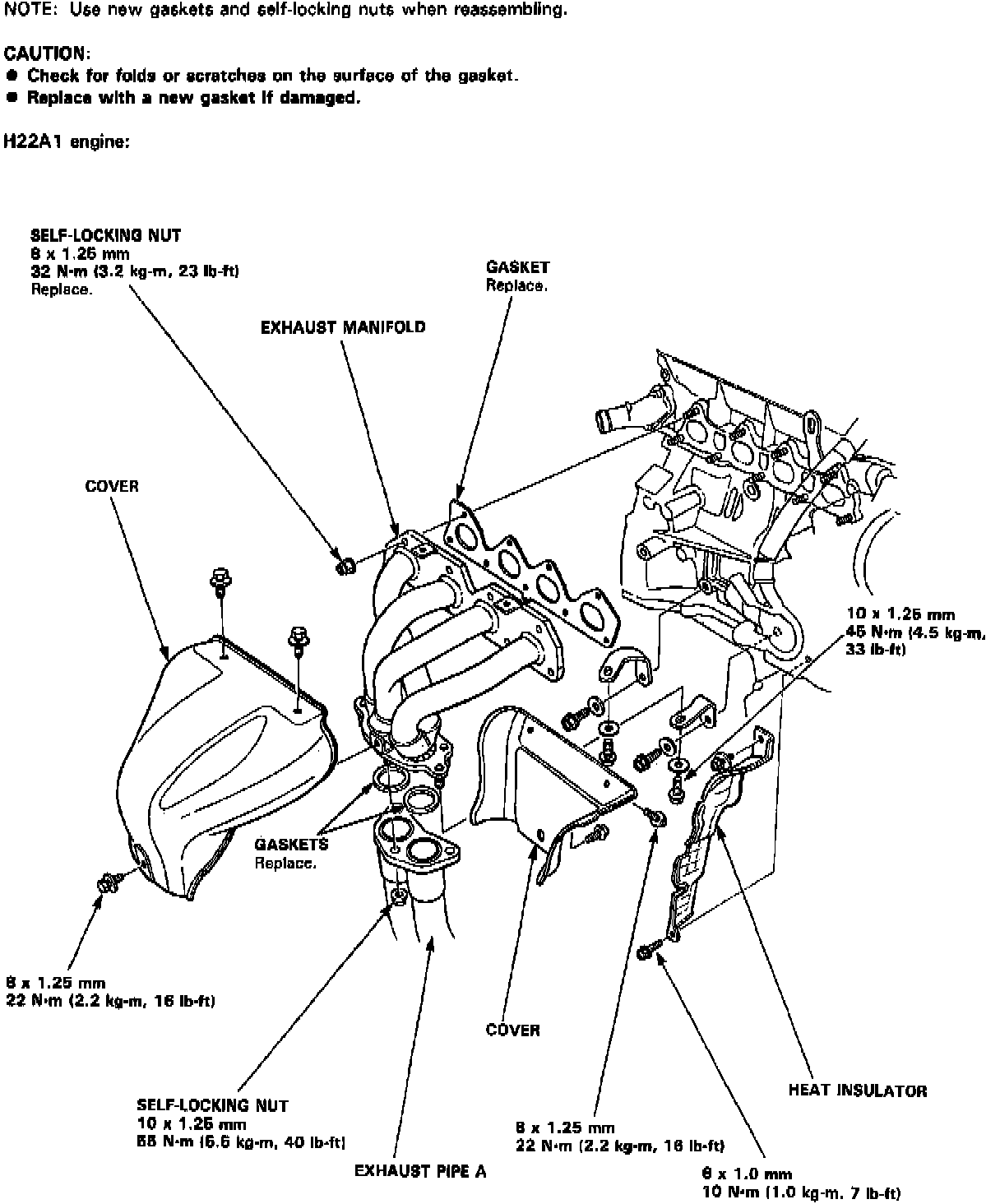

Exhaust Manifold:
Cam Holder Loosening Sequence:

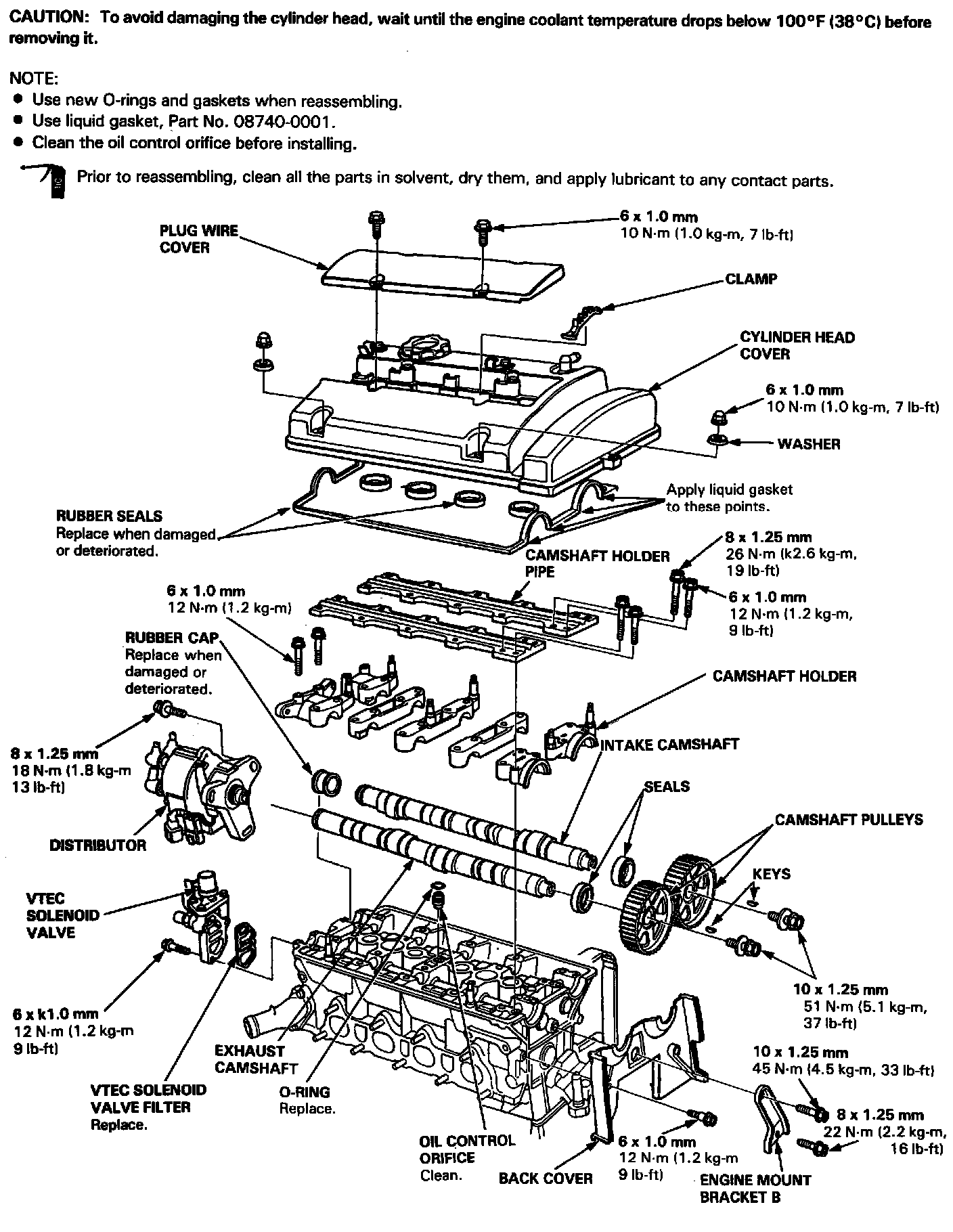

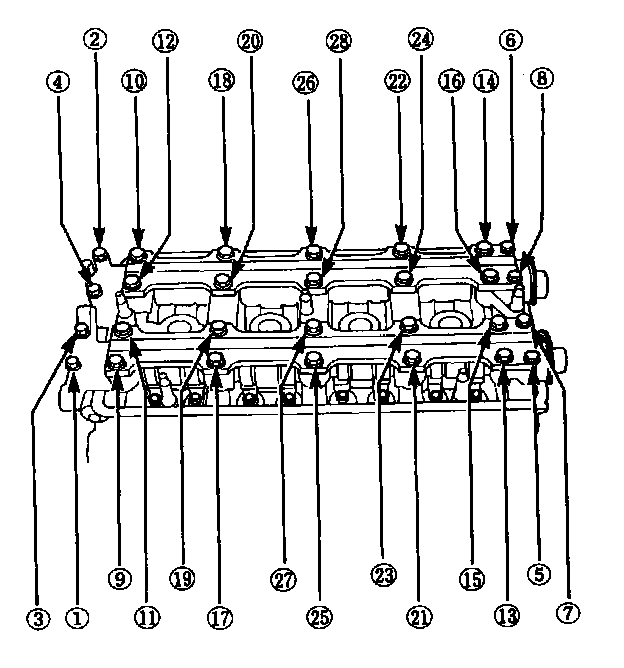

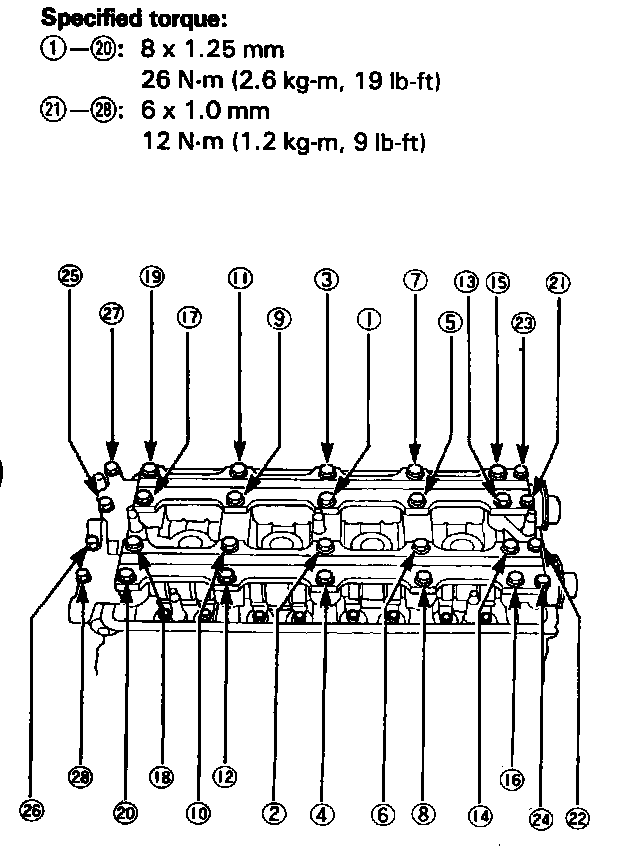

Cam Holder Torque/Sequence:

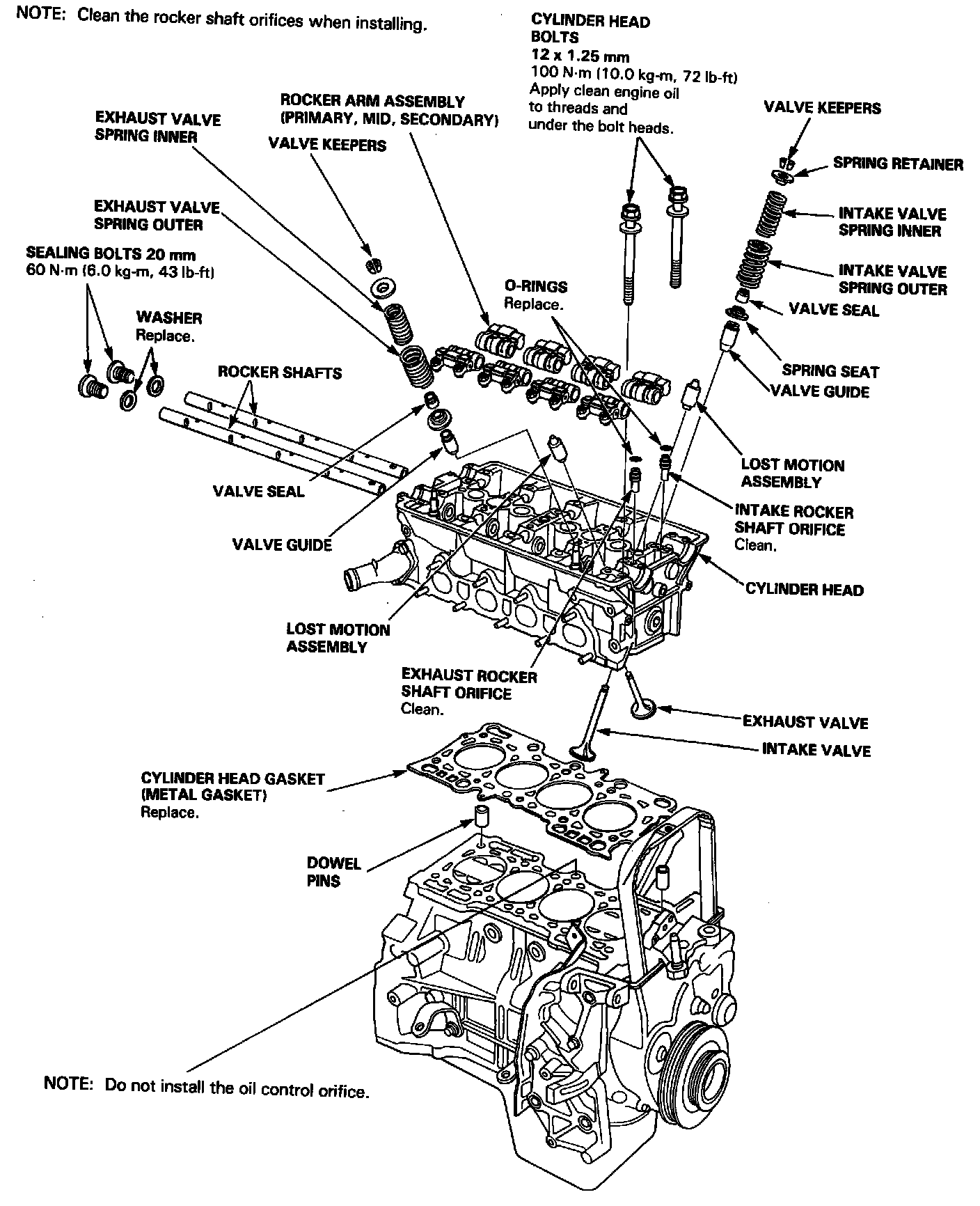

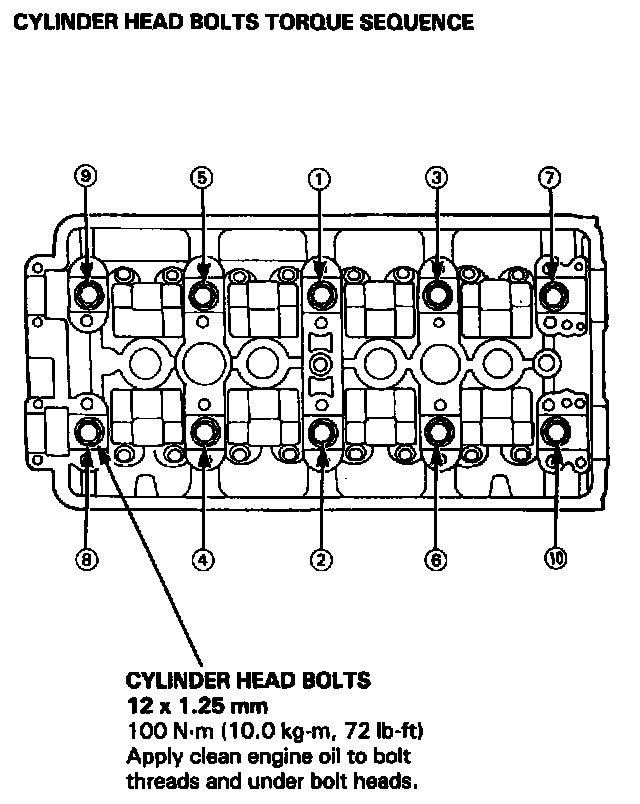

Head Bolt Torque Sequence:
Torque cylinder head attaching bolts in three steps; first step to 29 ft. lbs., second step to 51 ft. lbs., third step to 72 ft. lbs.

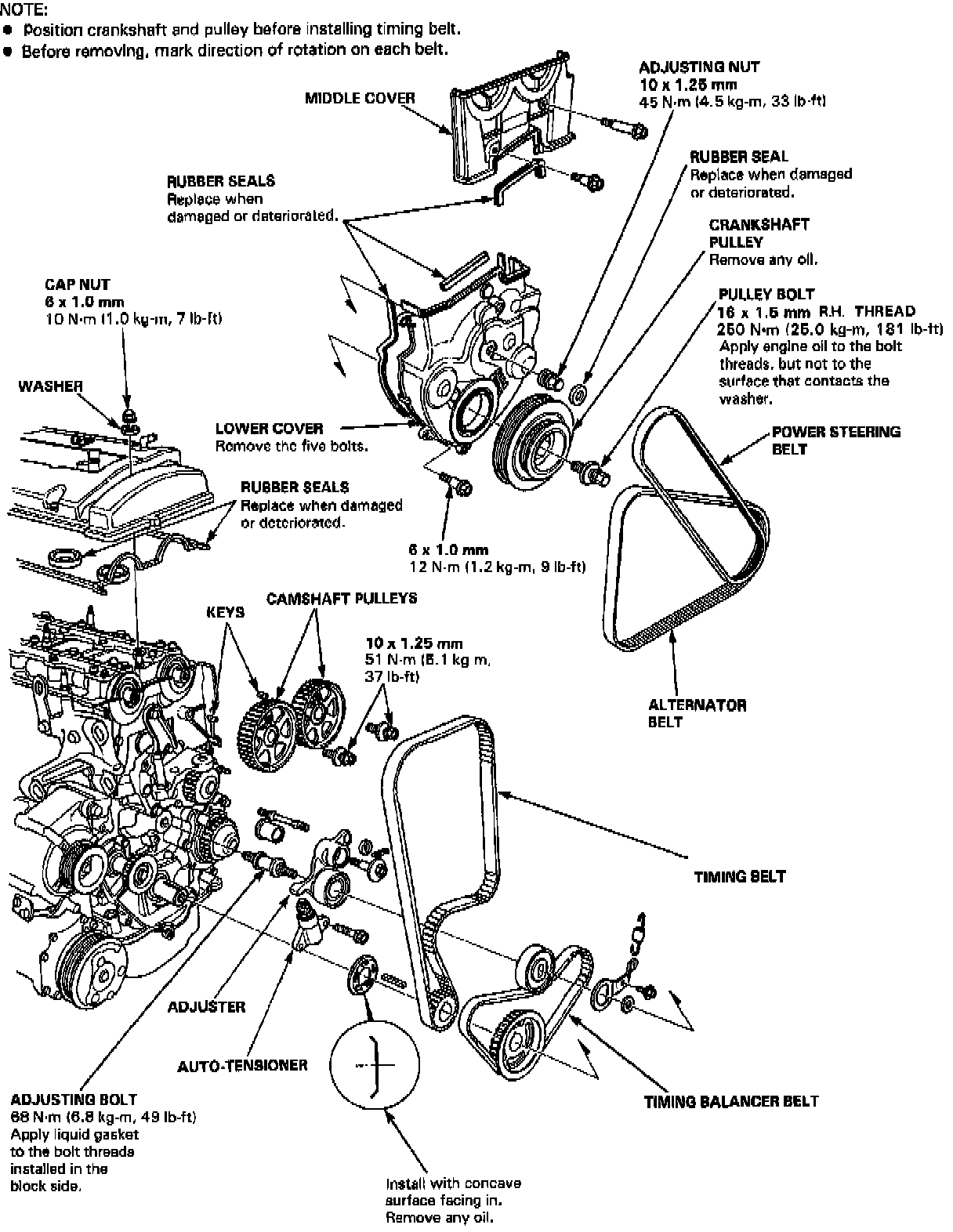

Timing Components:

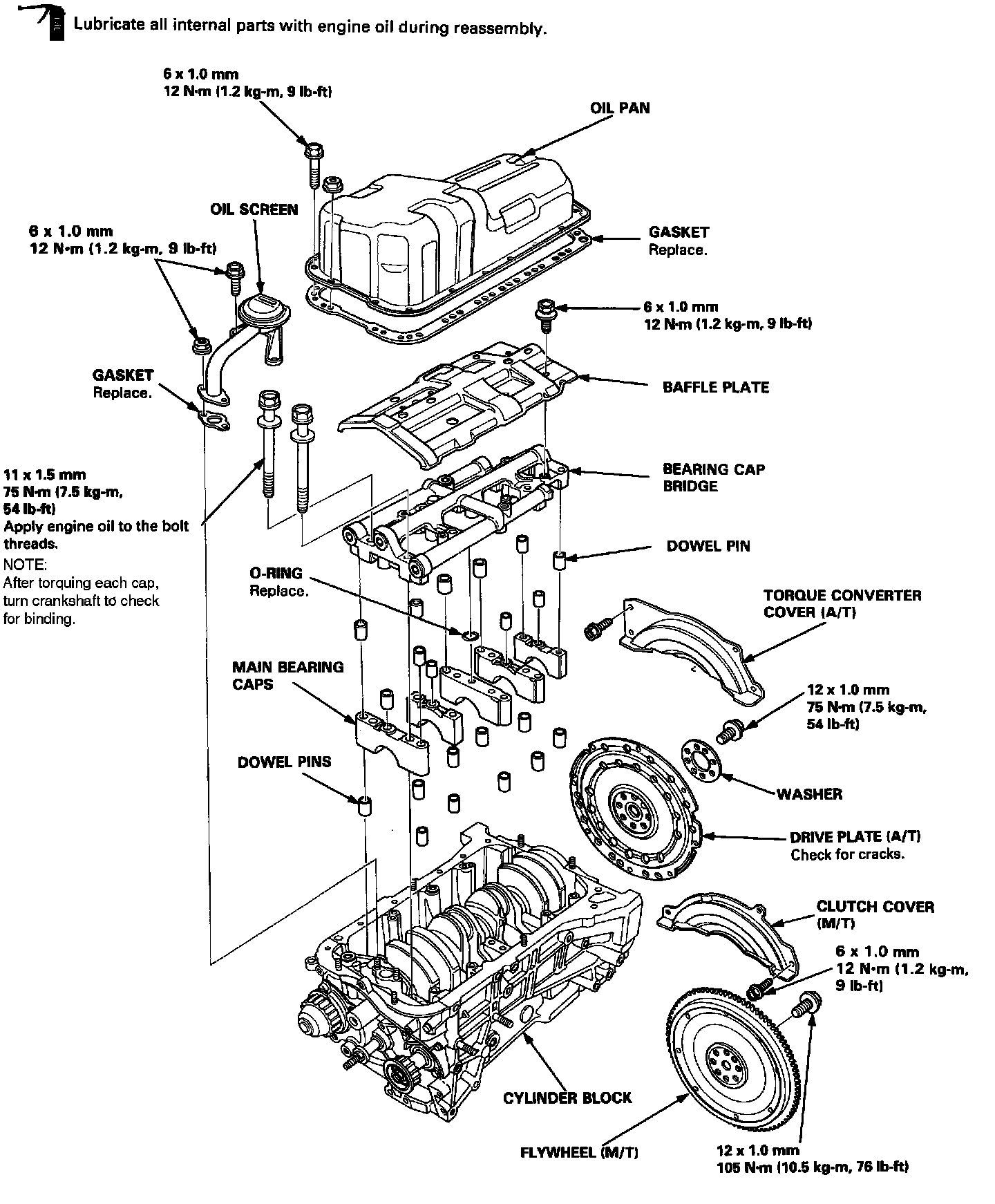

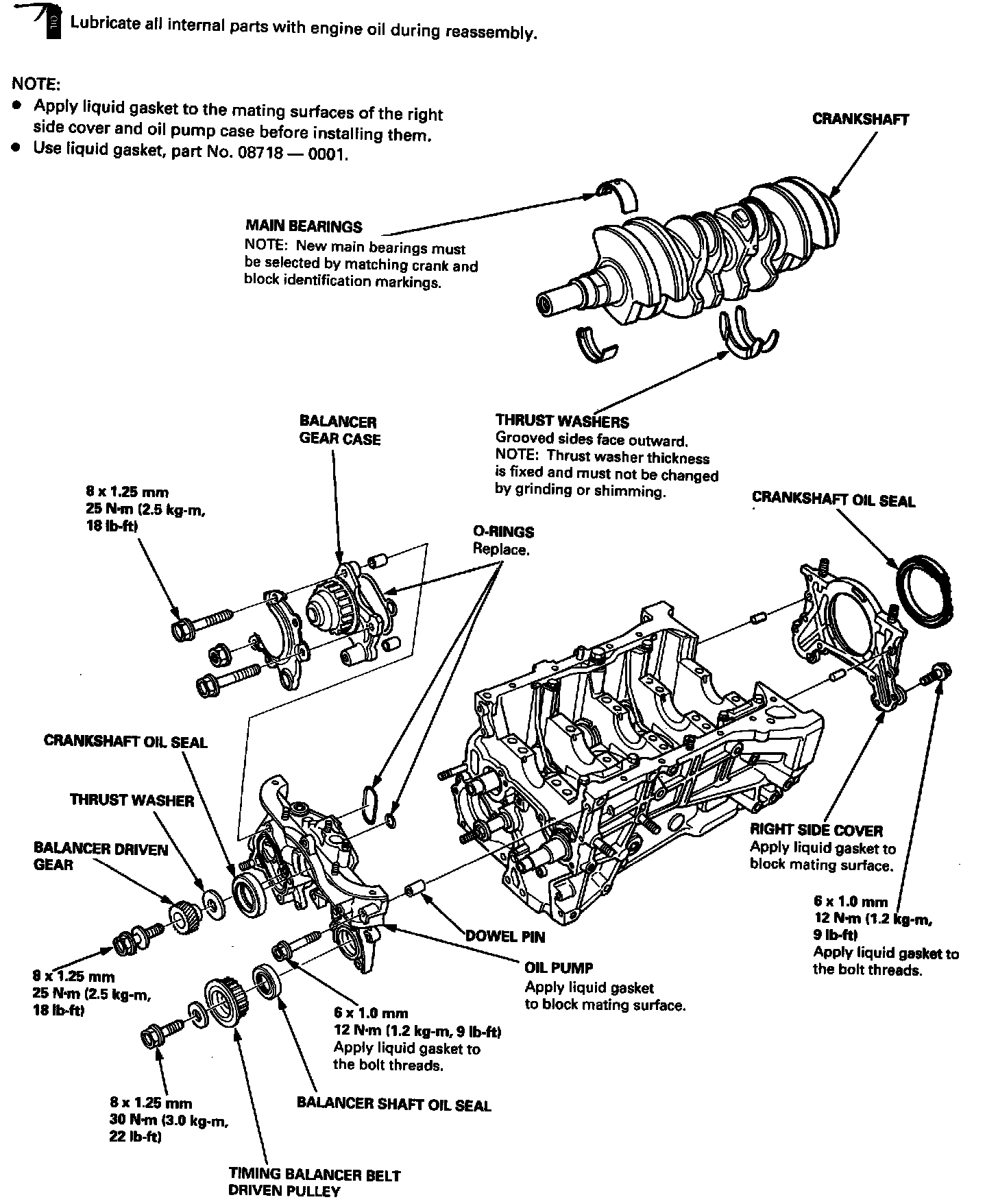

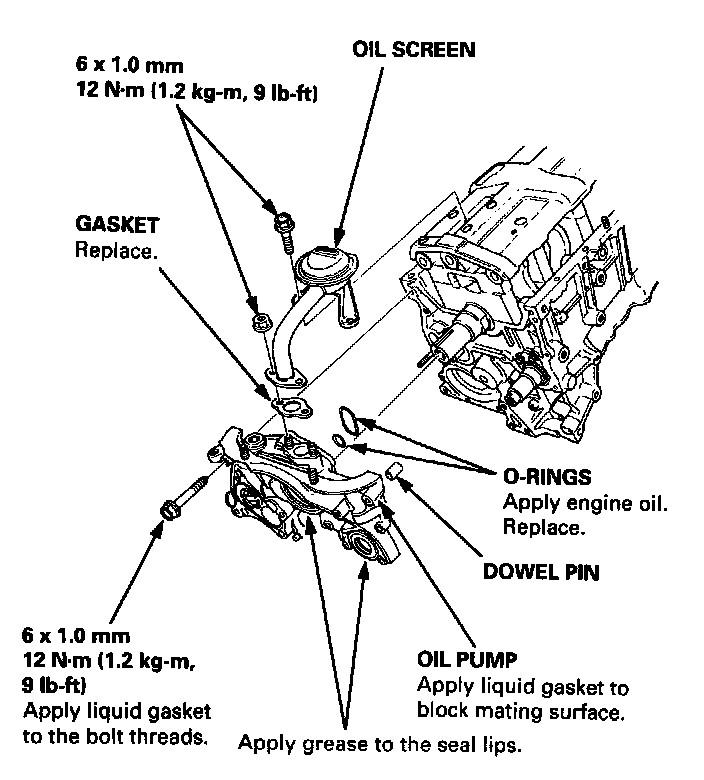

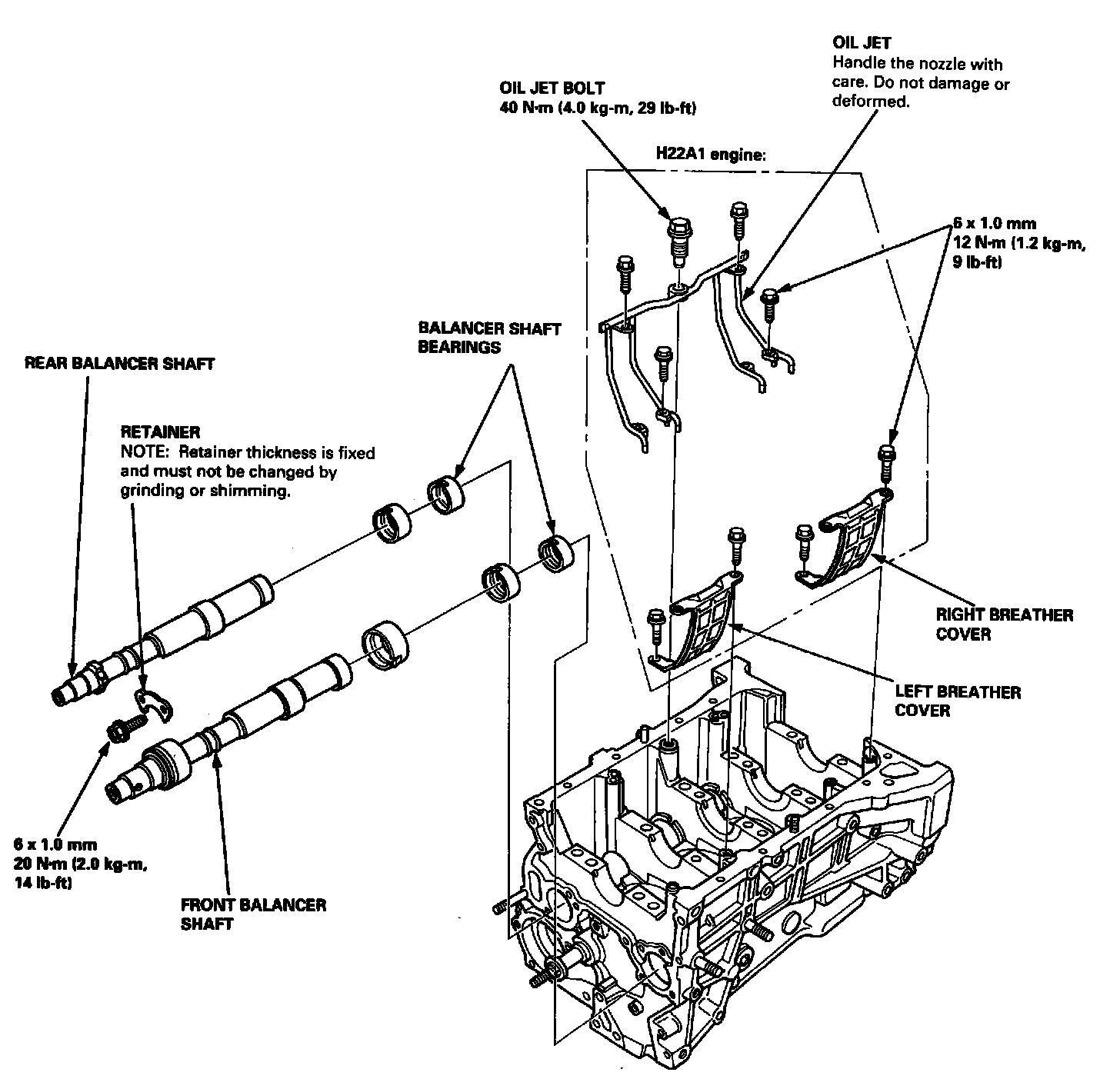

Lower Engine:

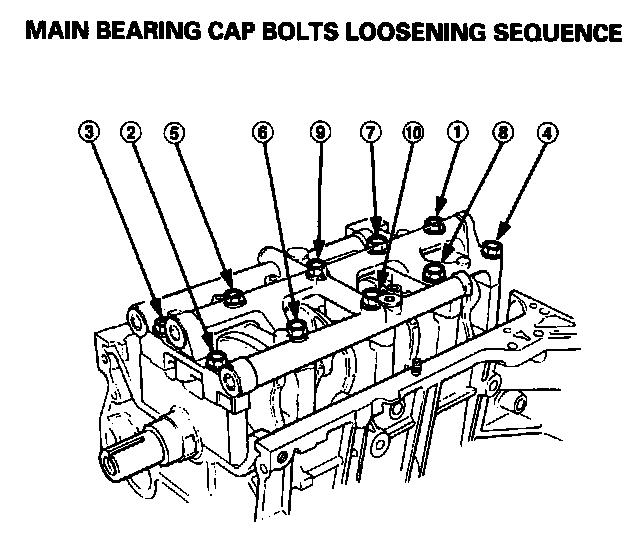

Main Bolt Loosening Sequence:

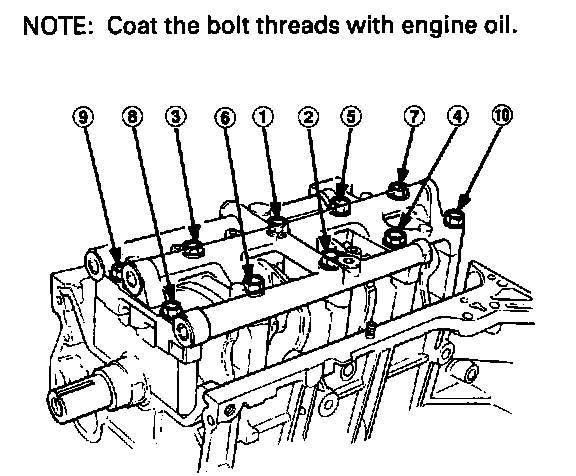

Main Bolt Torque Sequence:

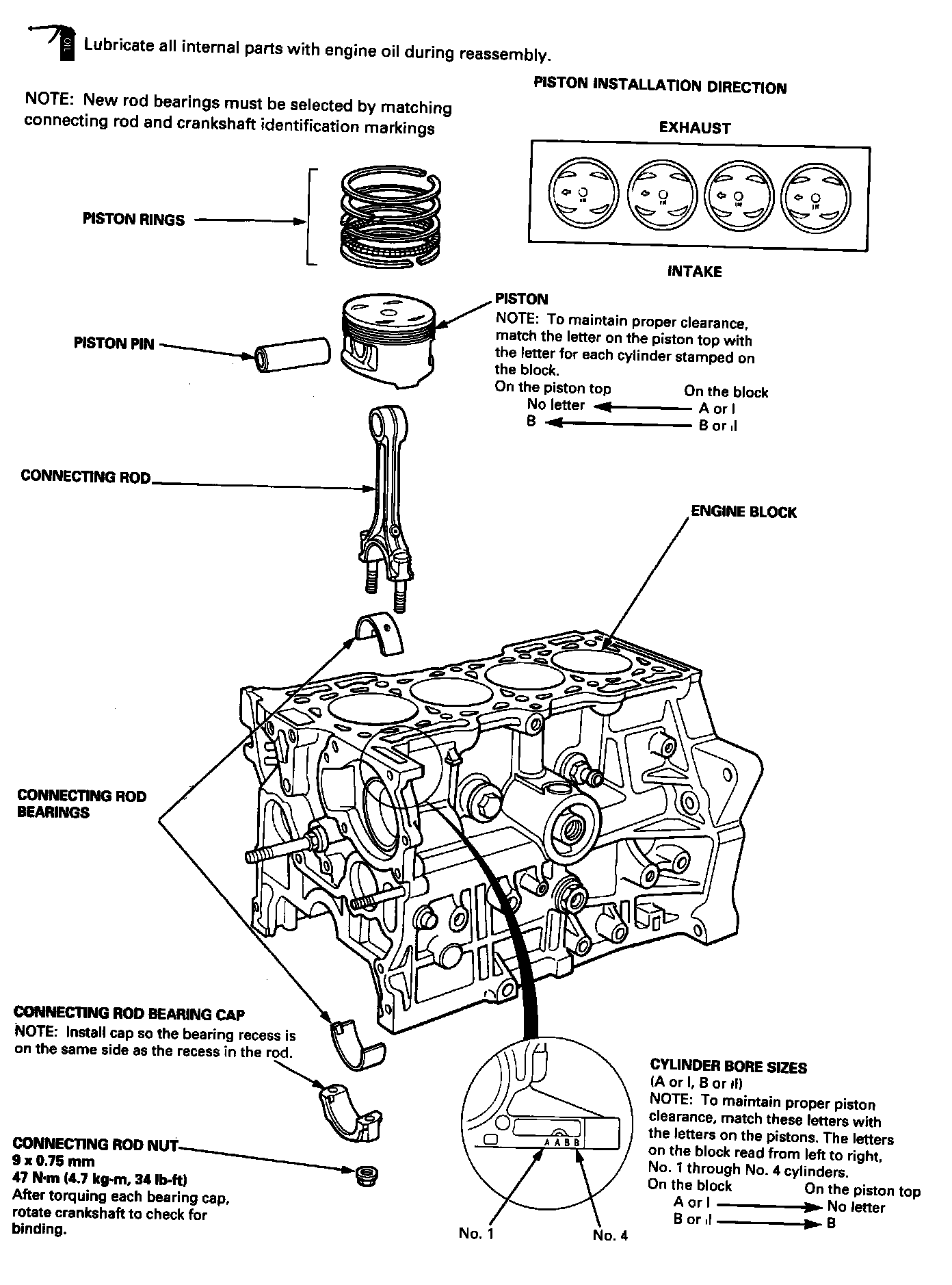

Connecting Rod:

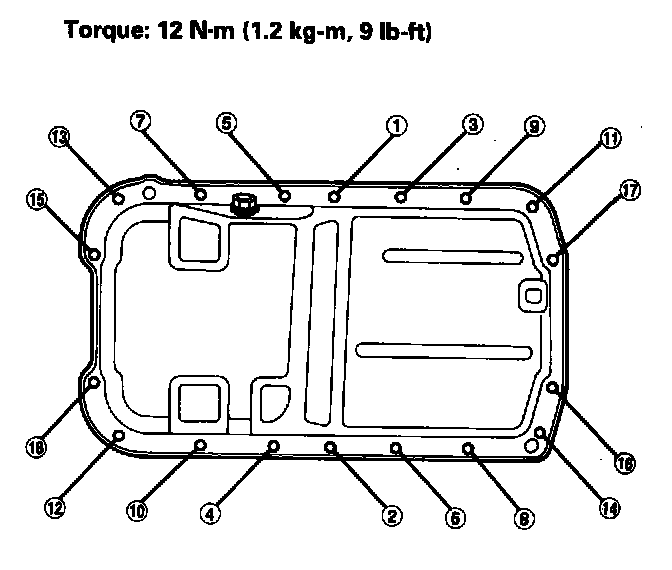

Oil Pan Bolt Torque Sequence:

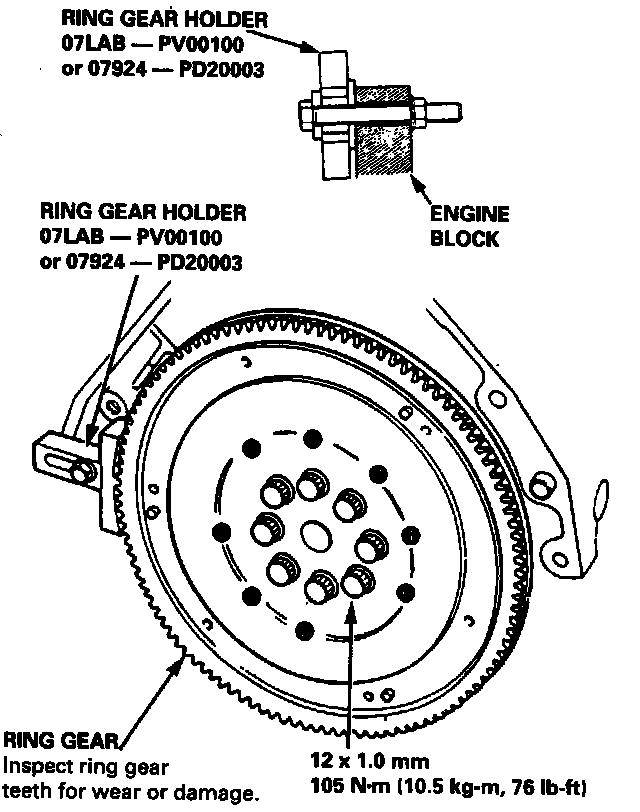

Flywheel (M/T) Torque/Sequence:
Drive Plate (A/T) Torque/Sequence:
