Rocker Arm Assembly: Service and Repair

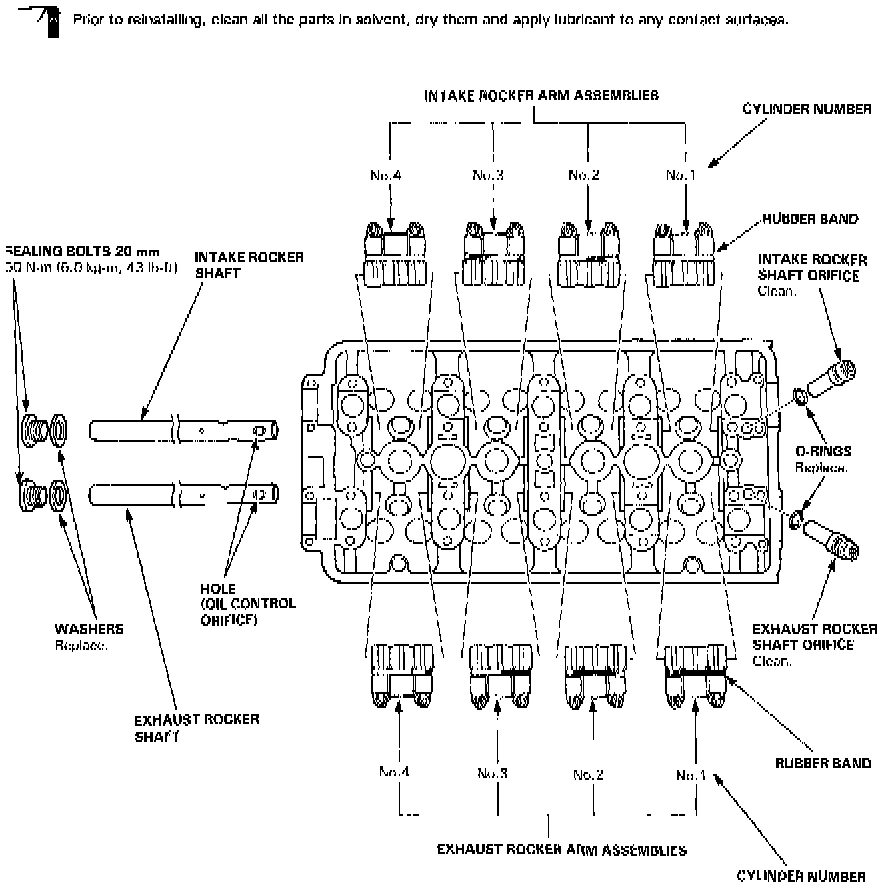

Fig. 28 Exploded View Of Rocker Arm Assembly:

Disassemble one or all parts of rocker arm assembly as necessary, Fig. 28. Prior to removal, identify all parts so they can be installed in their original locations.

When removing or installing rocker arm assembly, do not remove camshaft holder bolts. The bolts will keep the holders, springs and rocker arms on the shaft. When reassembling, fit the projection on the intake rocker shaft to the notch in the camshaft holder.
