Main
>>
Right Side of Engine Compartment Branch
Right Side of Engine Compartment Branch

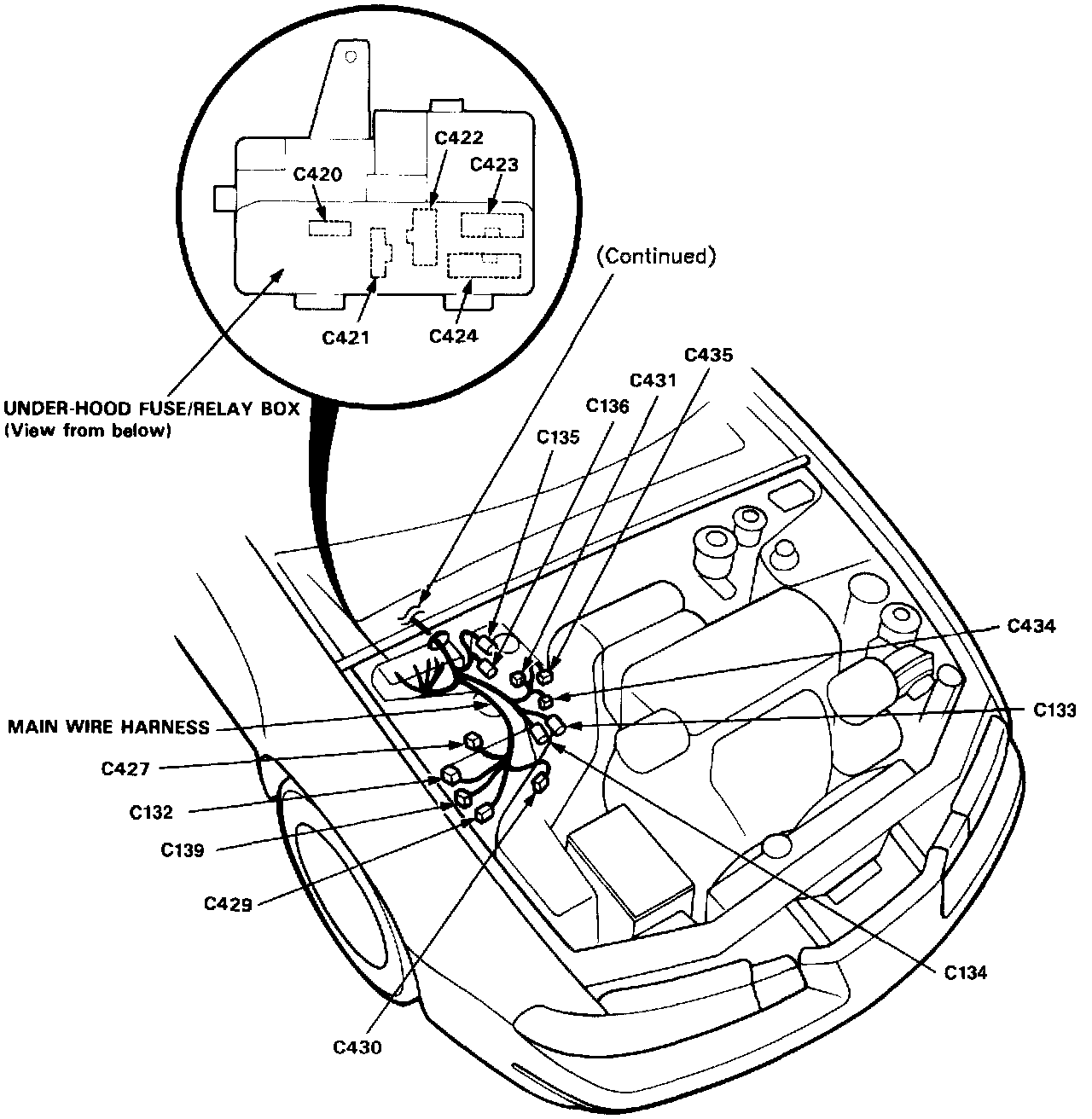

Connector Locations And Harness Routing: Main Wire Harness (Right Side Of Engine Compartment Branch):
