Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wire Harness Routing
>>
Left Side
Left Side

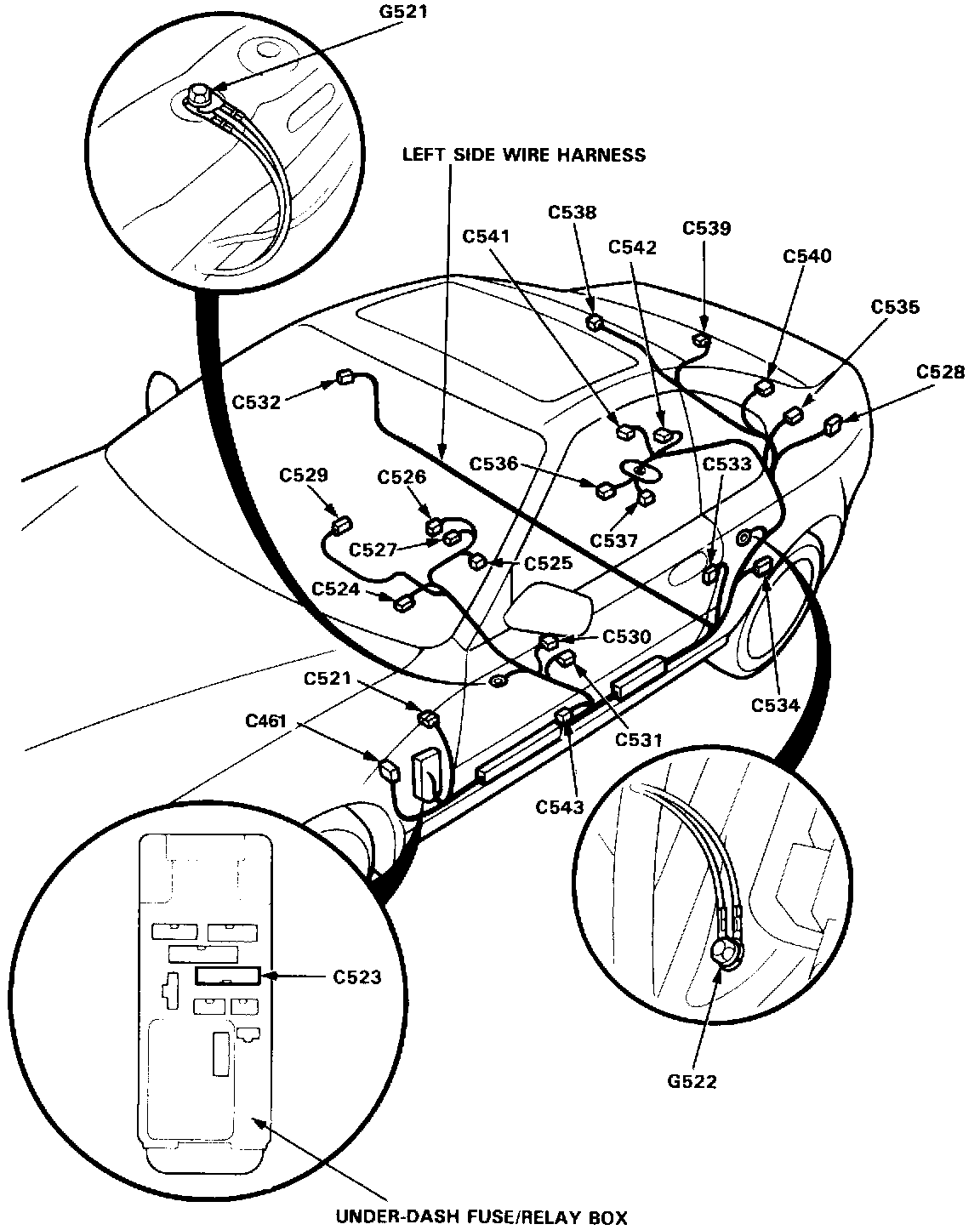

Connector Locations And Wire Harness Routing: Left Side Wire Harness:
