Transmission Shift Position Indicator Lamp

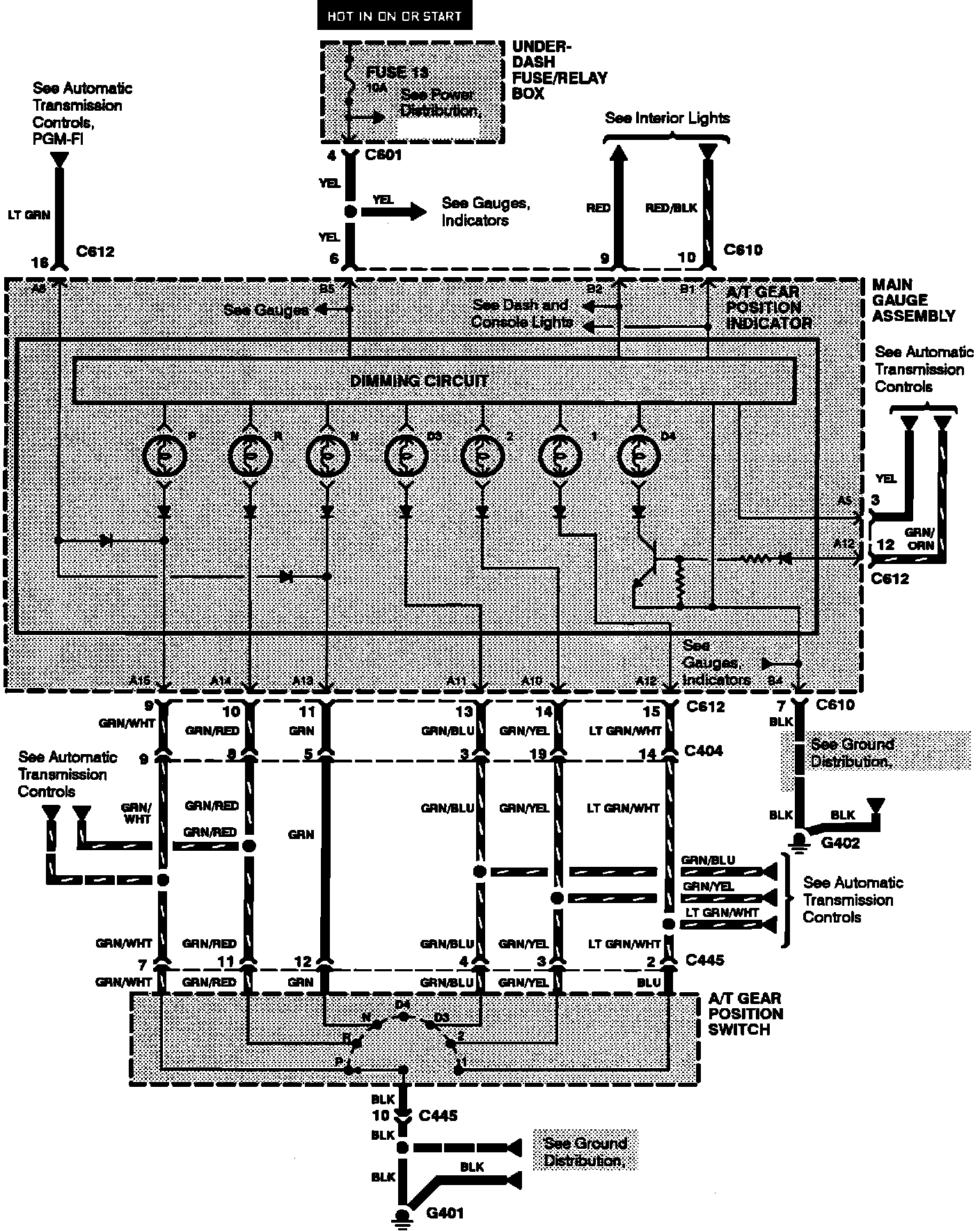

A/T Gear Position Indicator:

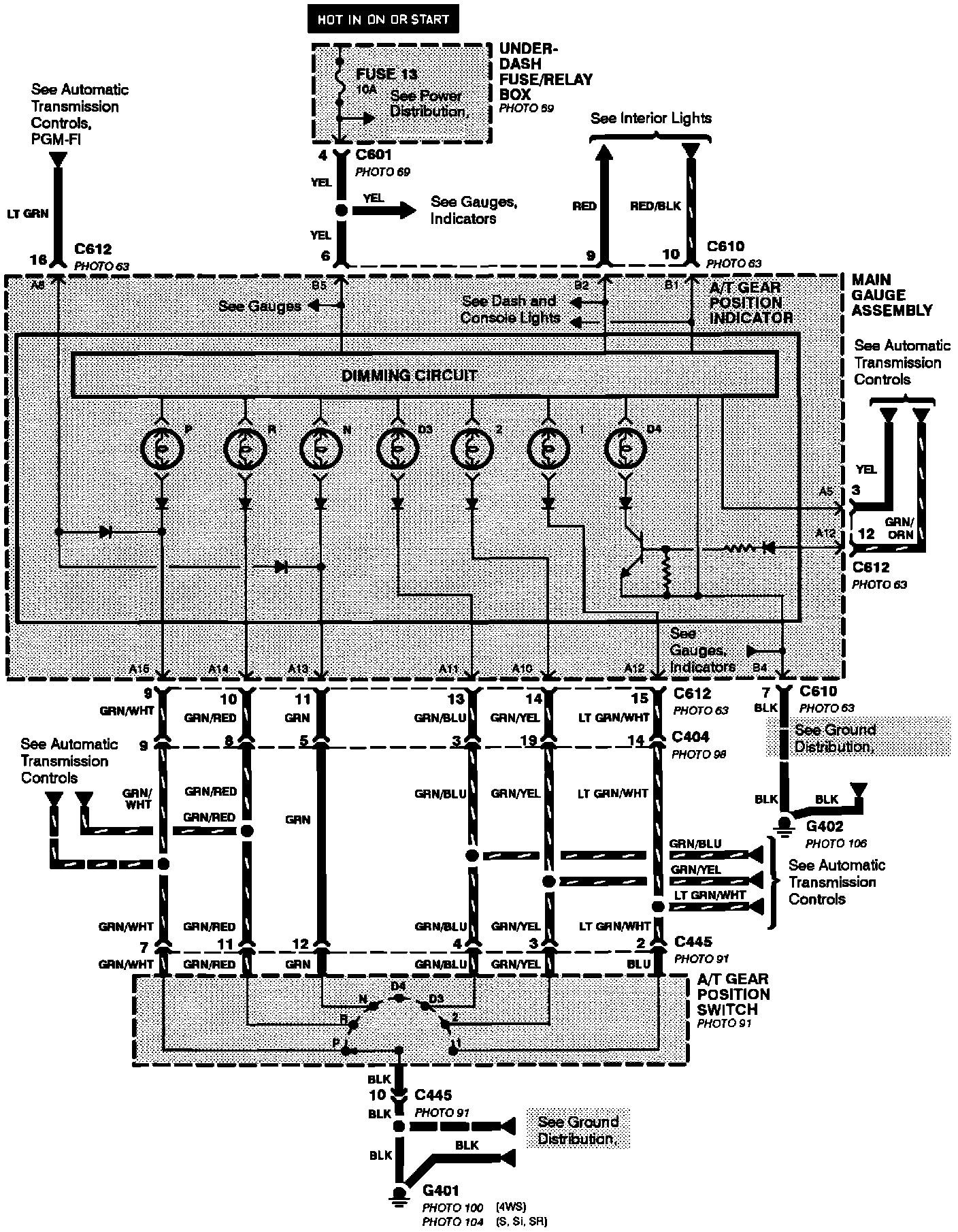

A/T Gear Position Indicator:
