Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering

Steering

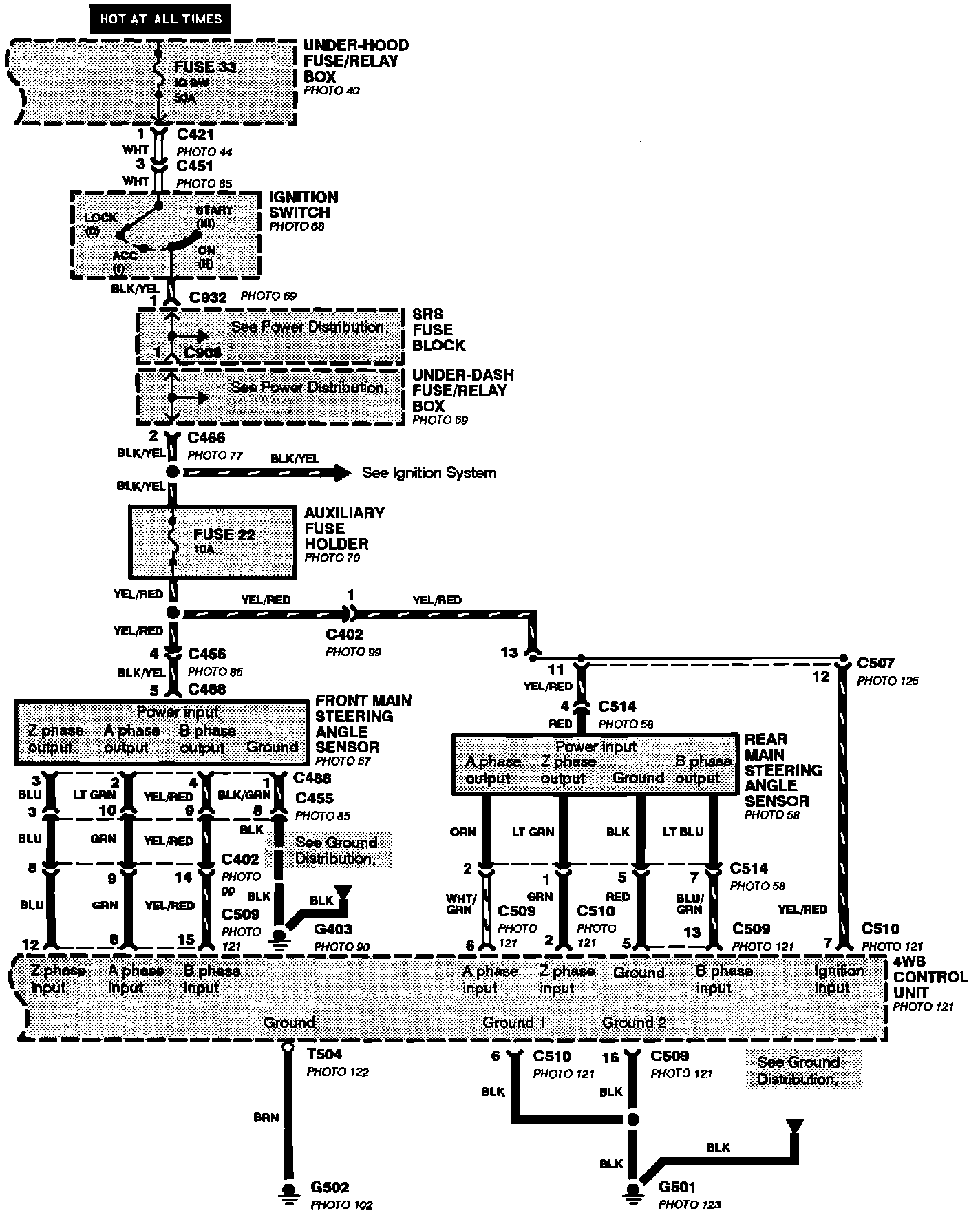

Four Wheel Steering (4WS):

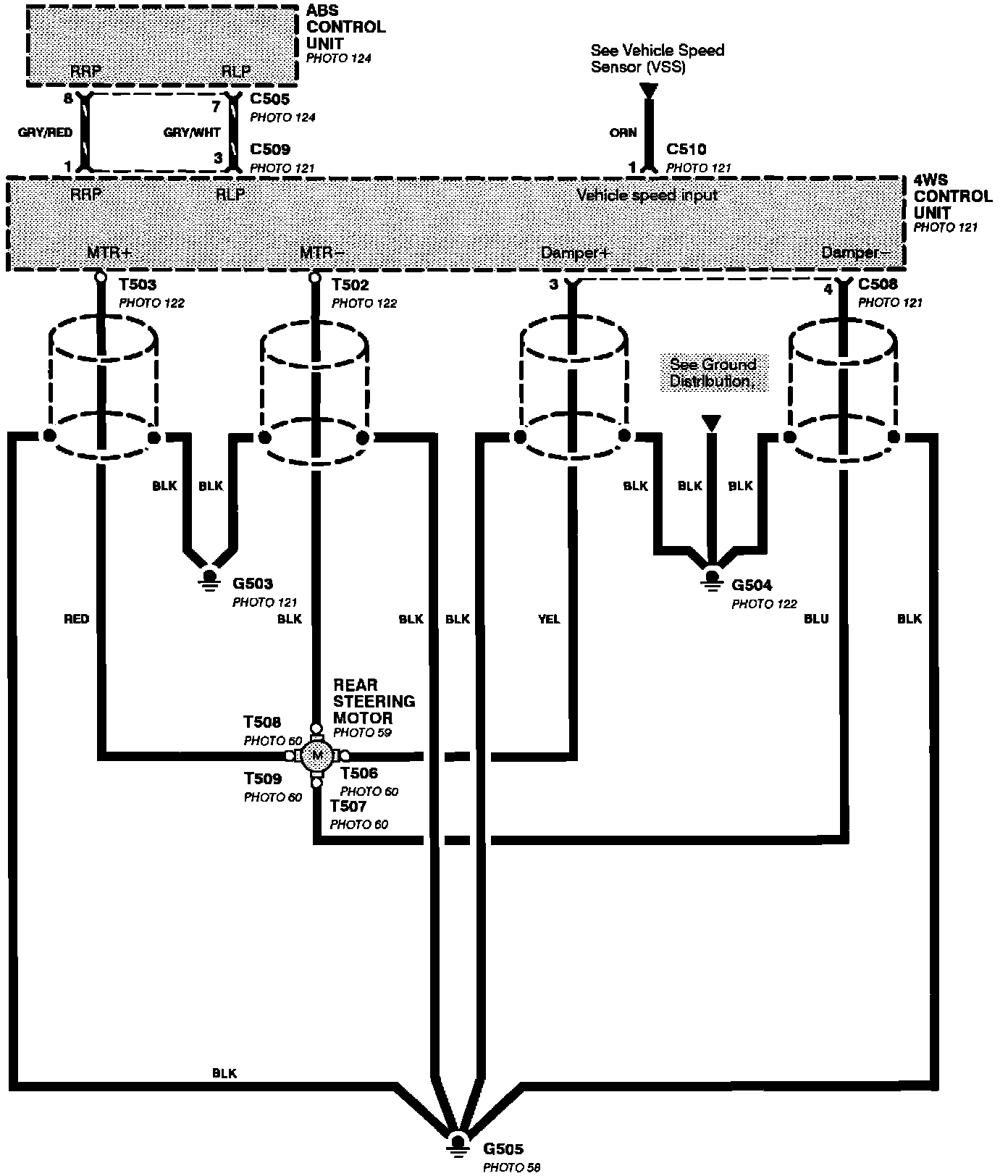

Four Wheel Steering (4WS):

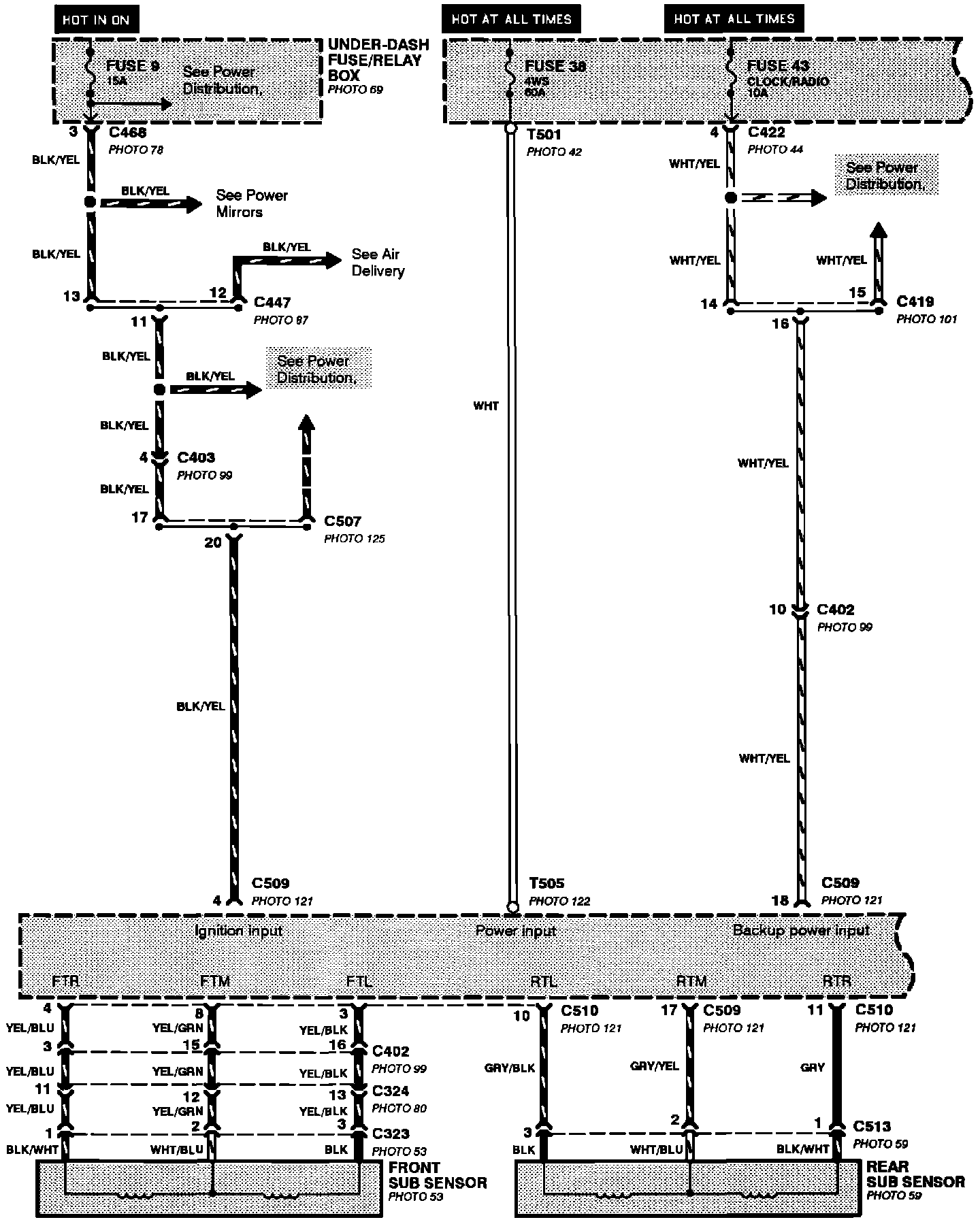

Four Wheel Steering (4WS):

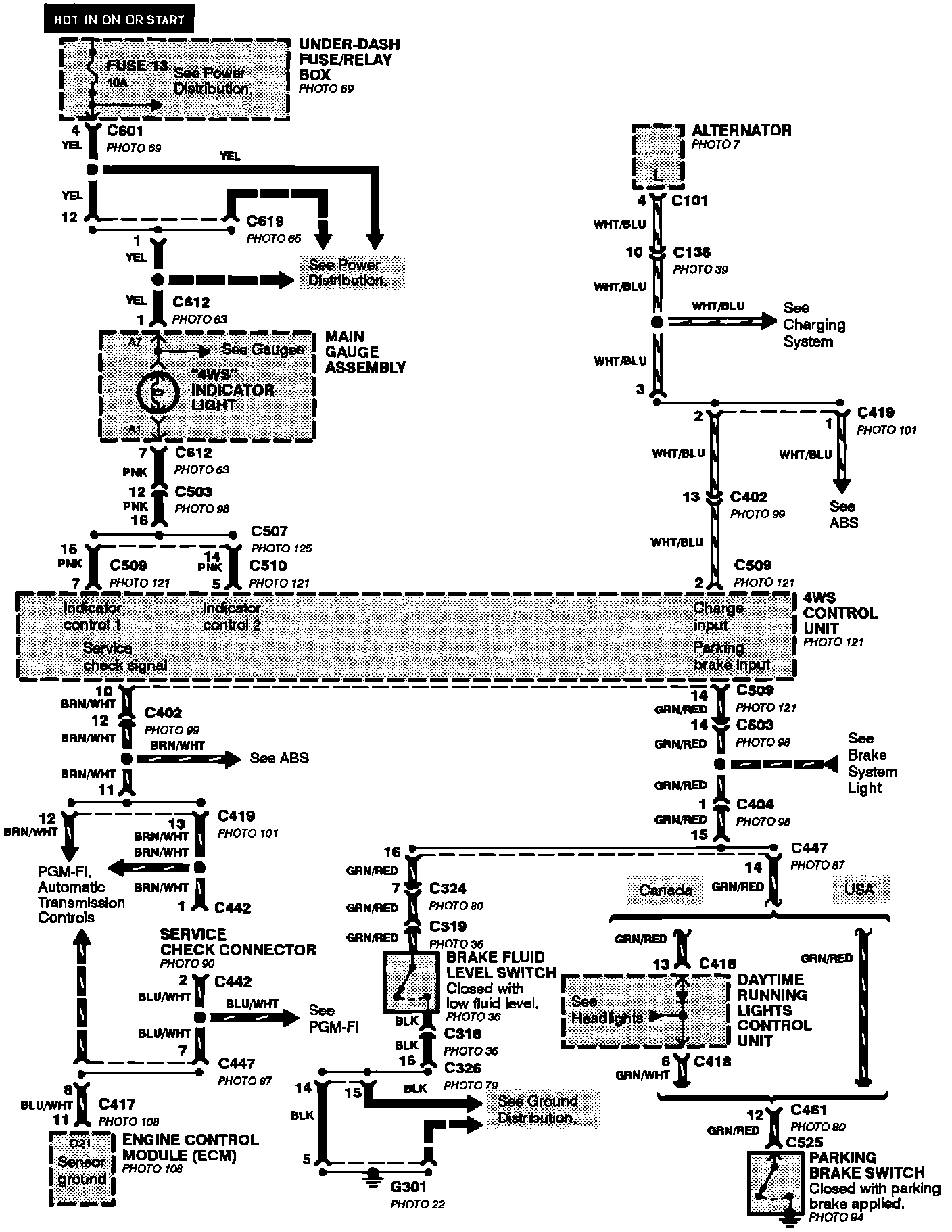

Four Wheel Steering (4WS):
