Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> VTEC and SR-V

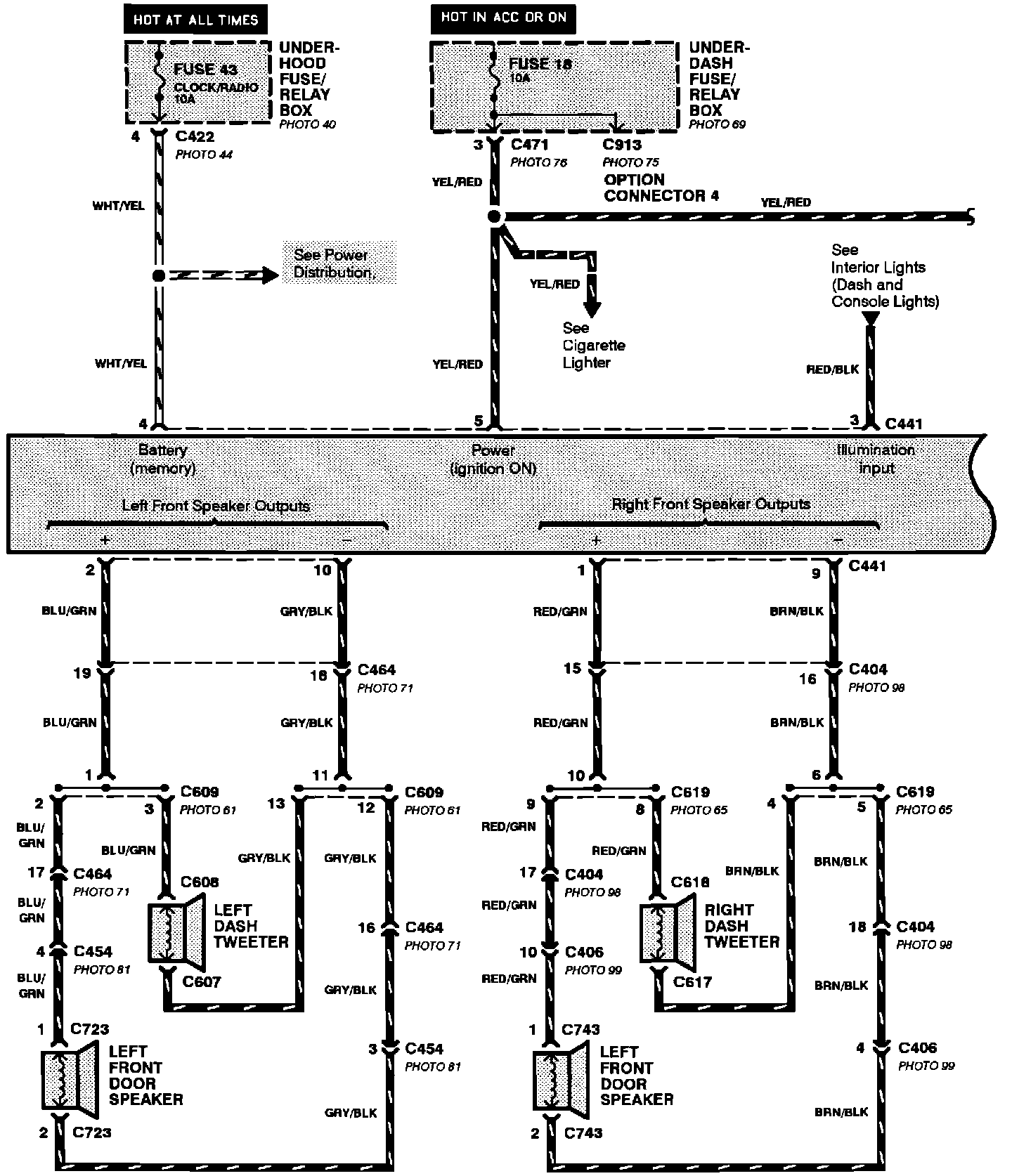

VTEC and SR-V

Radio:



Radio:
