Main Relay and Fuel Control
Main Relay and Fuel Control

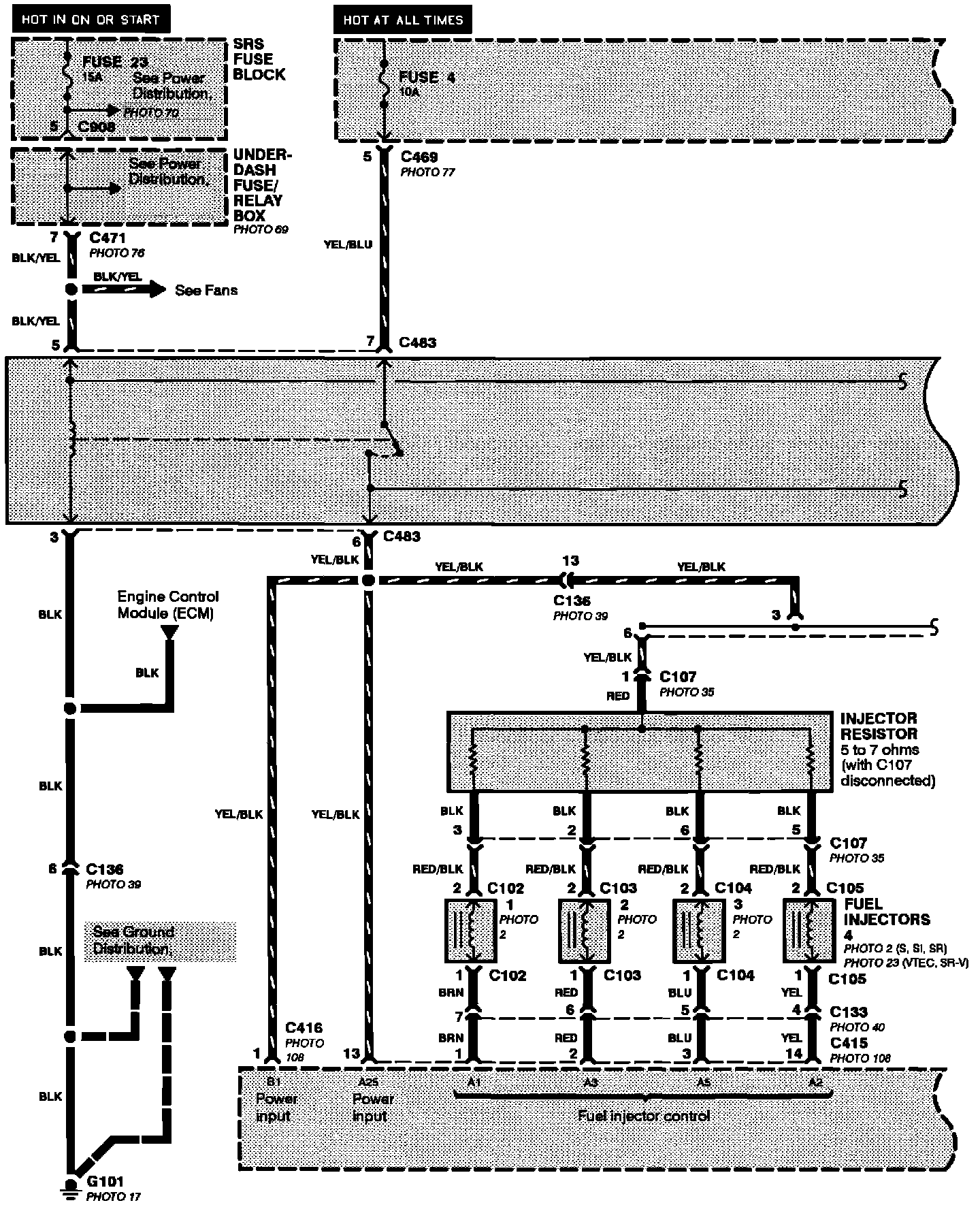

Engine Management (PGM-FI): Main Relay And Fuel Control:

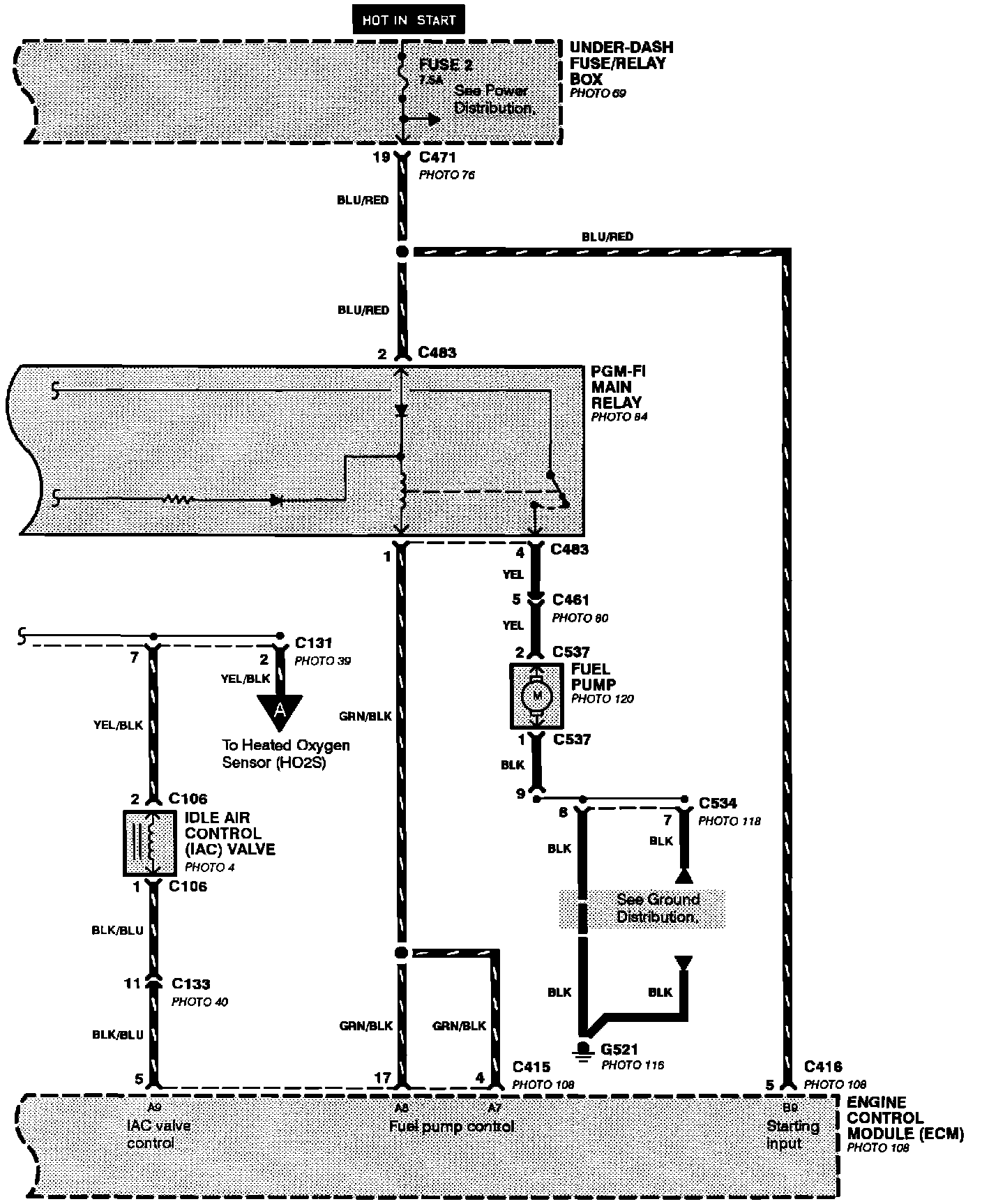

Engine Management (PGM-FI): Main Relay And Fuel Controls:
