Engine, Vehicle Data Sensors and Malfunction Indicator (MIL)
Engine, Vehicle Data Sensors and Malfunction Indicator (MIL)

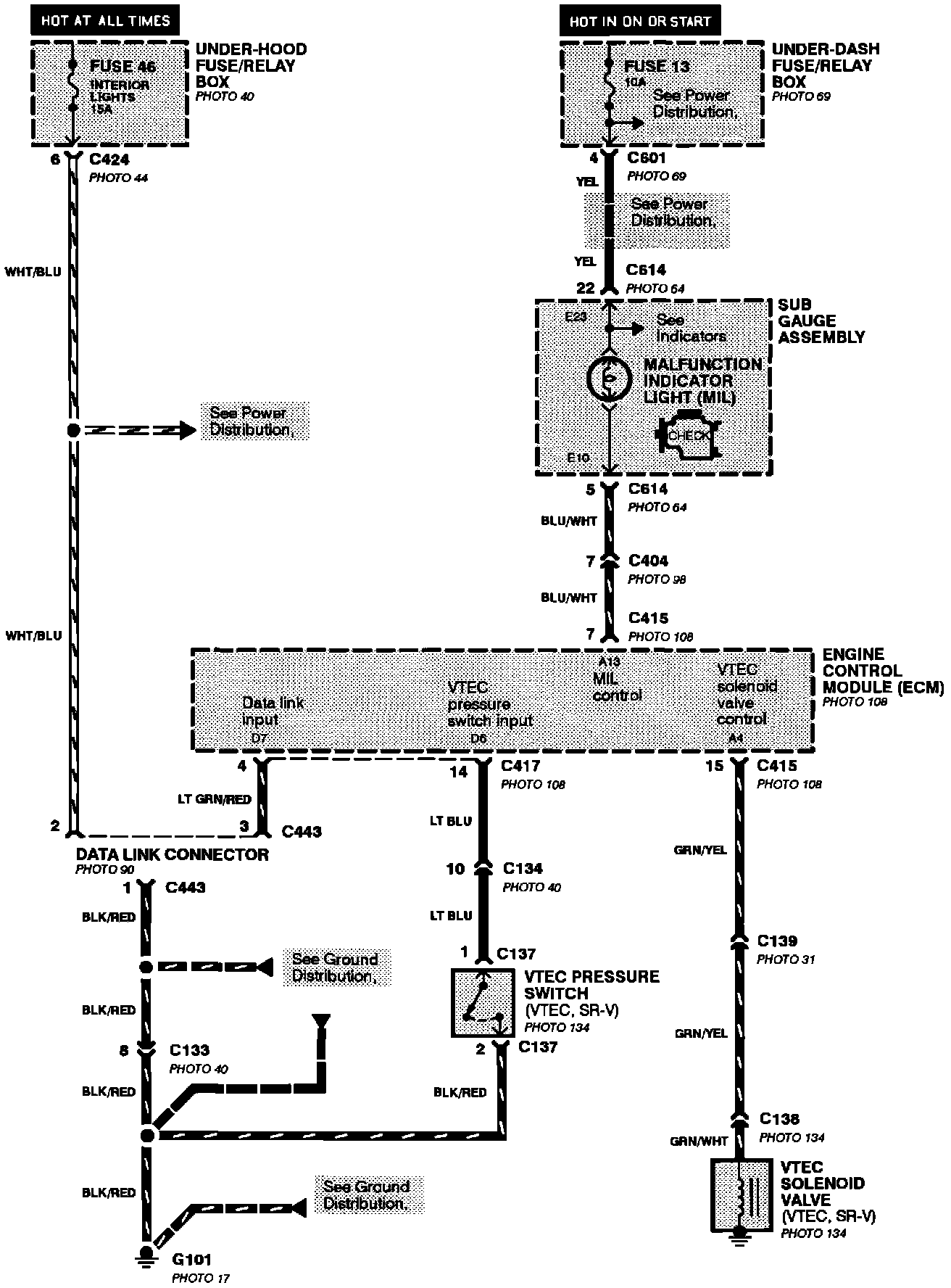

Engine Management (PGM-FI): Engine And Vehicle Data Sensors And Malfunction Indicator Light (MIL):
