Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine and Vehicle Data Sensors >> Part 4 of 4

Part 4 of 4

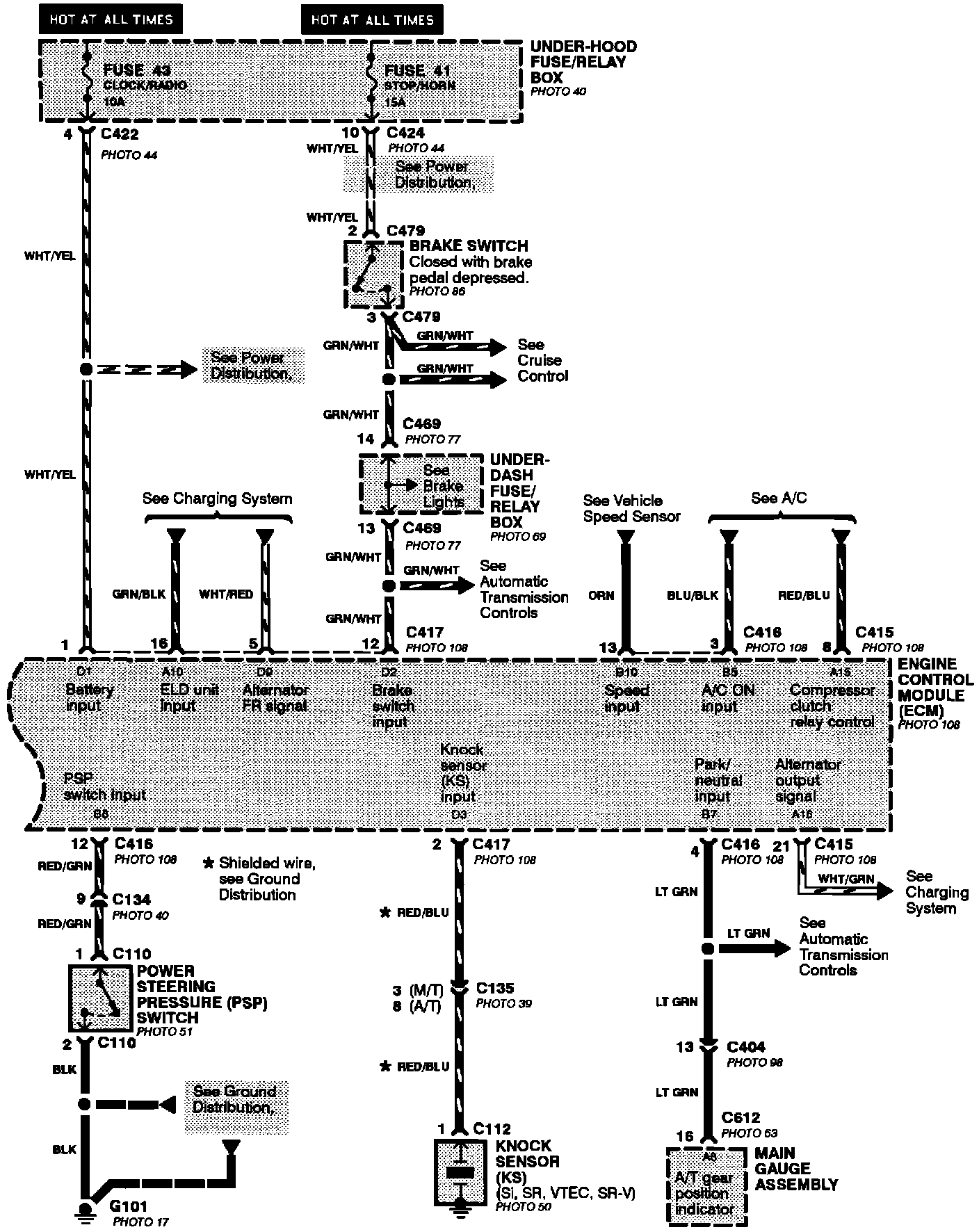

Engine Management (PGM-FI): Engine And Vehicle Data Sensors:
