Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Wiring Diagrams >> VTEC and SR-V Models

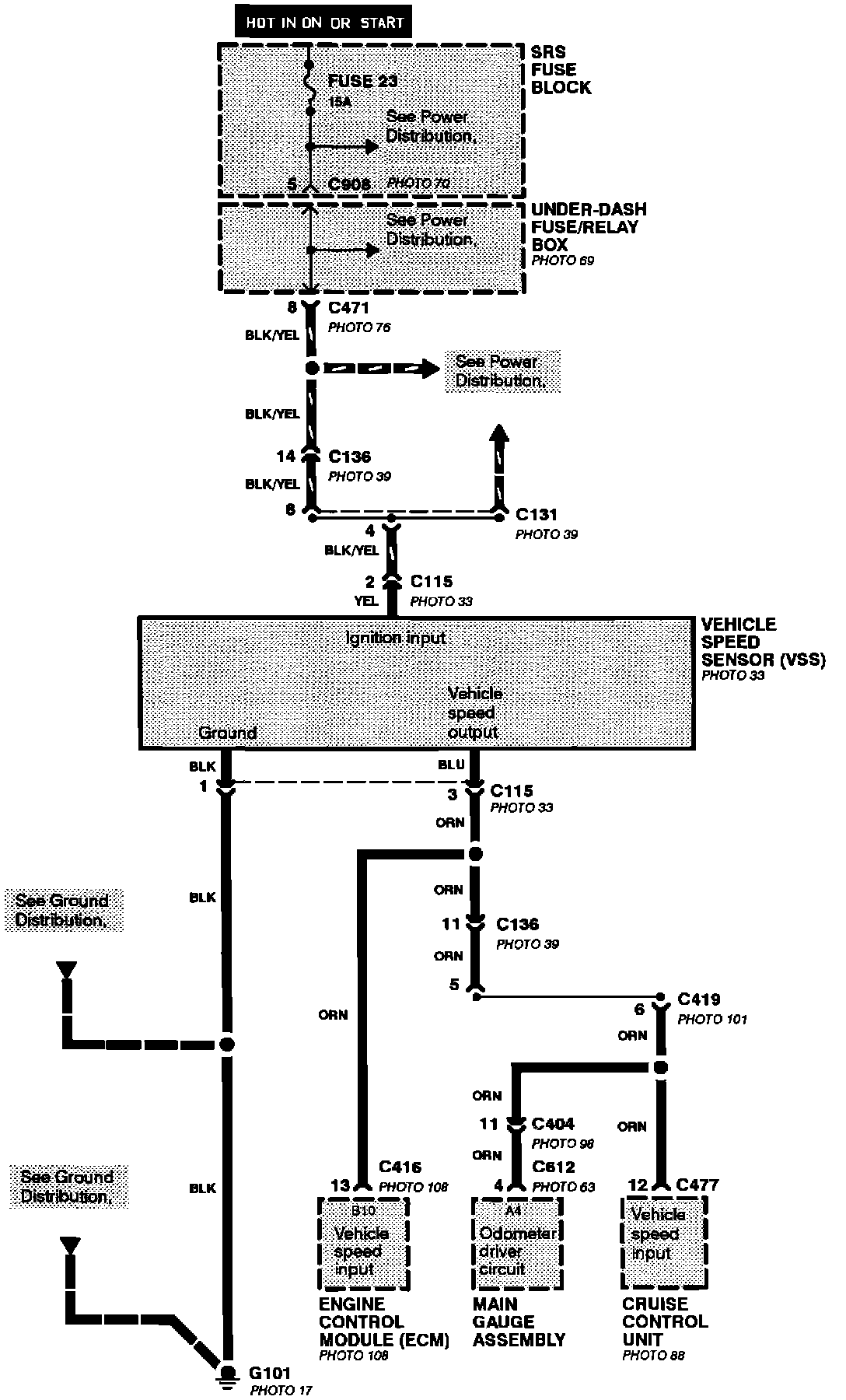

VTEC and SR-V Models

Vehicle Speed Sensor:
