Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G522

G522

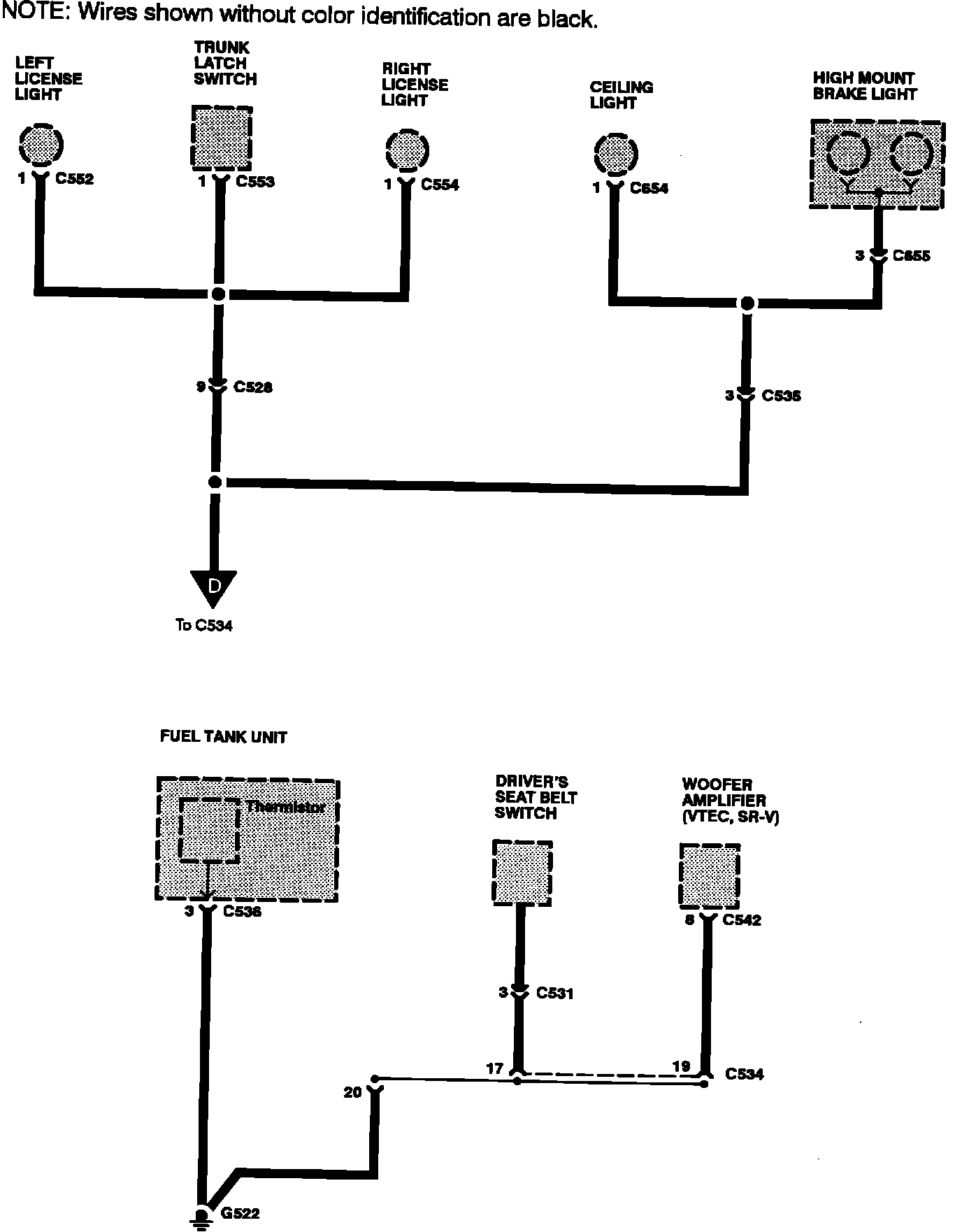

Ground Distribution: G522:

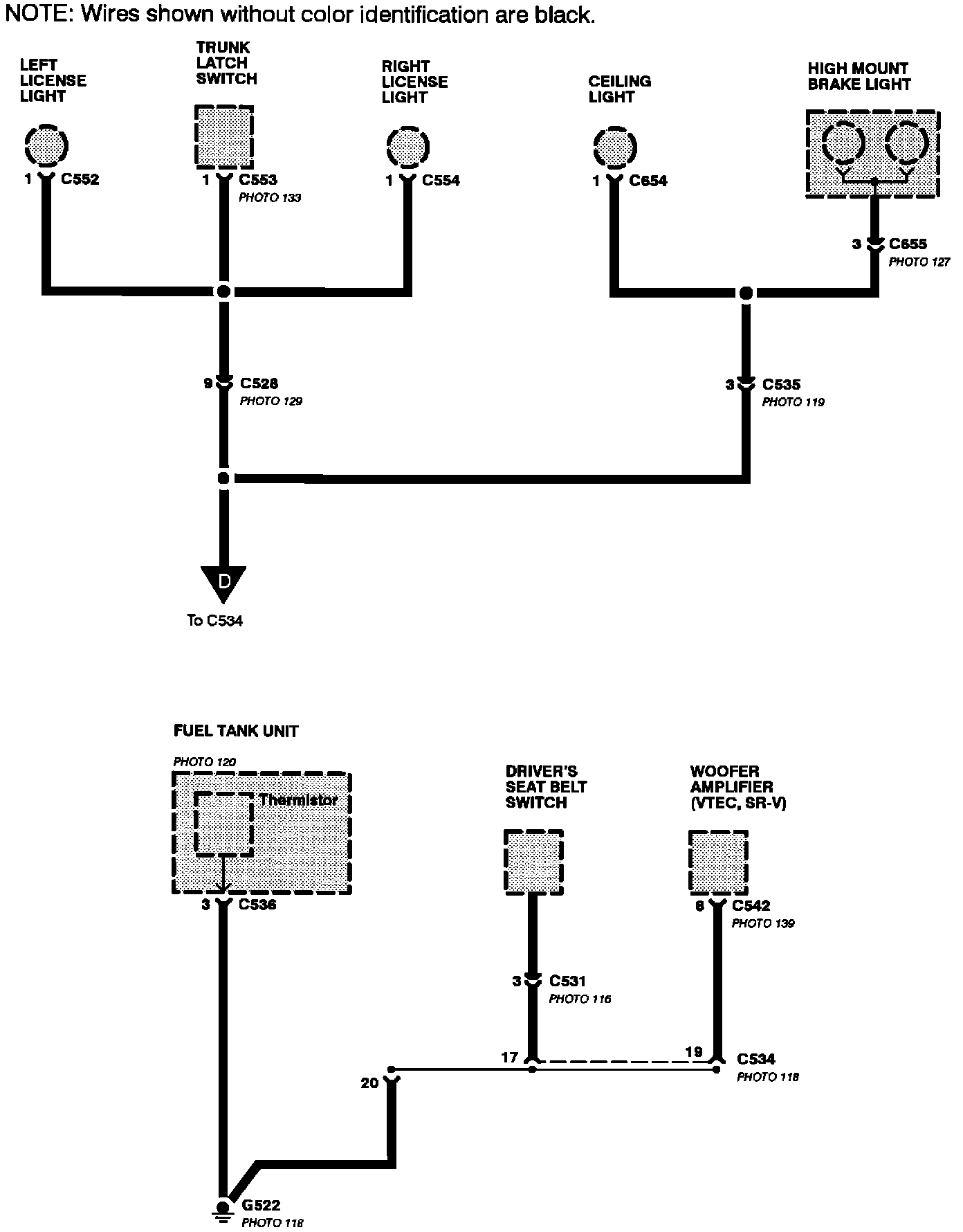

Ground Distribution:
