Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G501, G503, G504, G505 and G521

G501, G503, G504, G505 and G521

Ground Distribution: G402, G403 And G502:

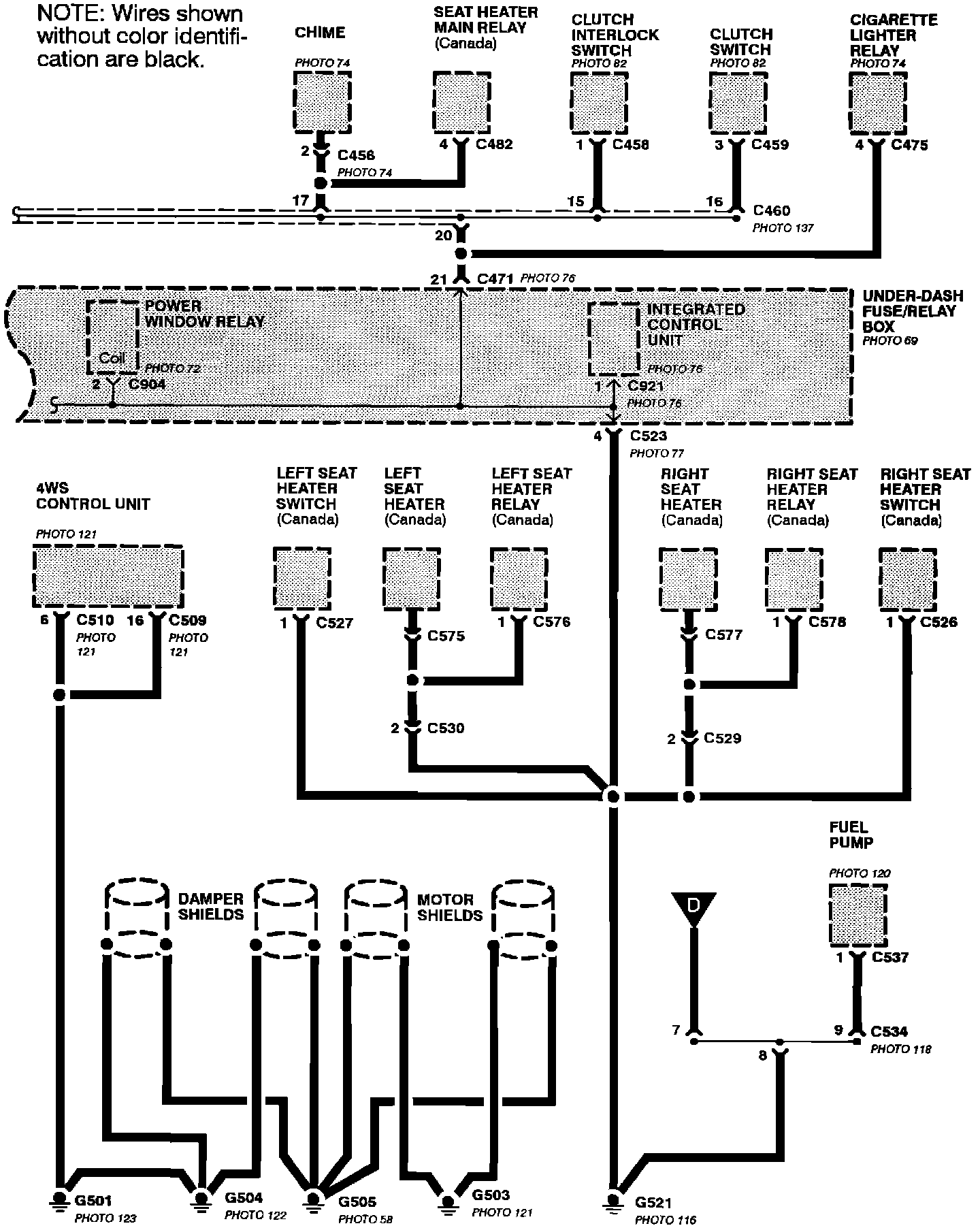

Ground Distribution: G501, G503, G504, G505 And G521:



Ground Distribution: G522:
