Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Air Conditioning System

Air Conditioning System

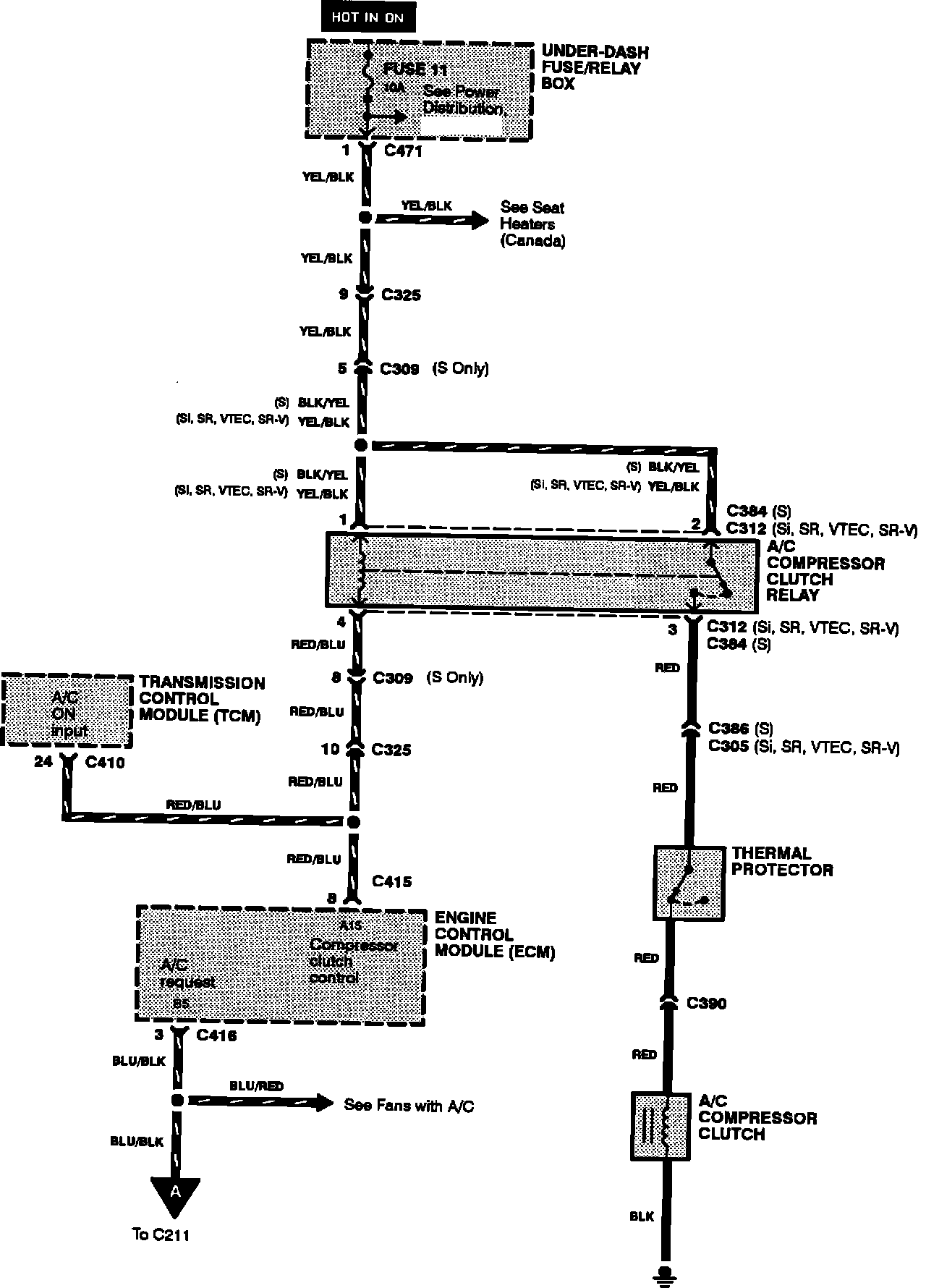

A/C Compressor Controls:

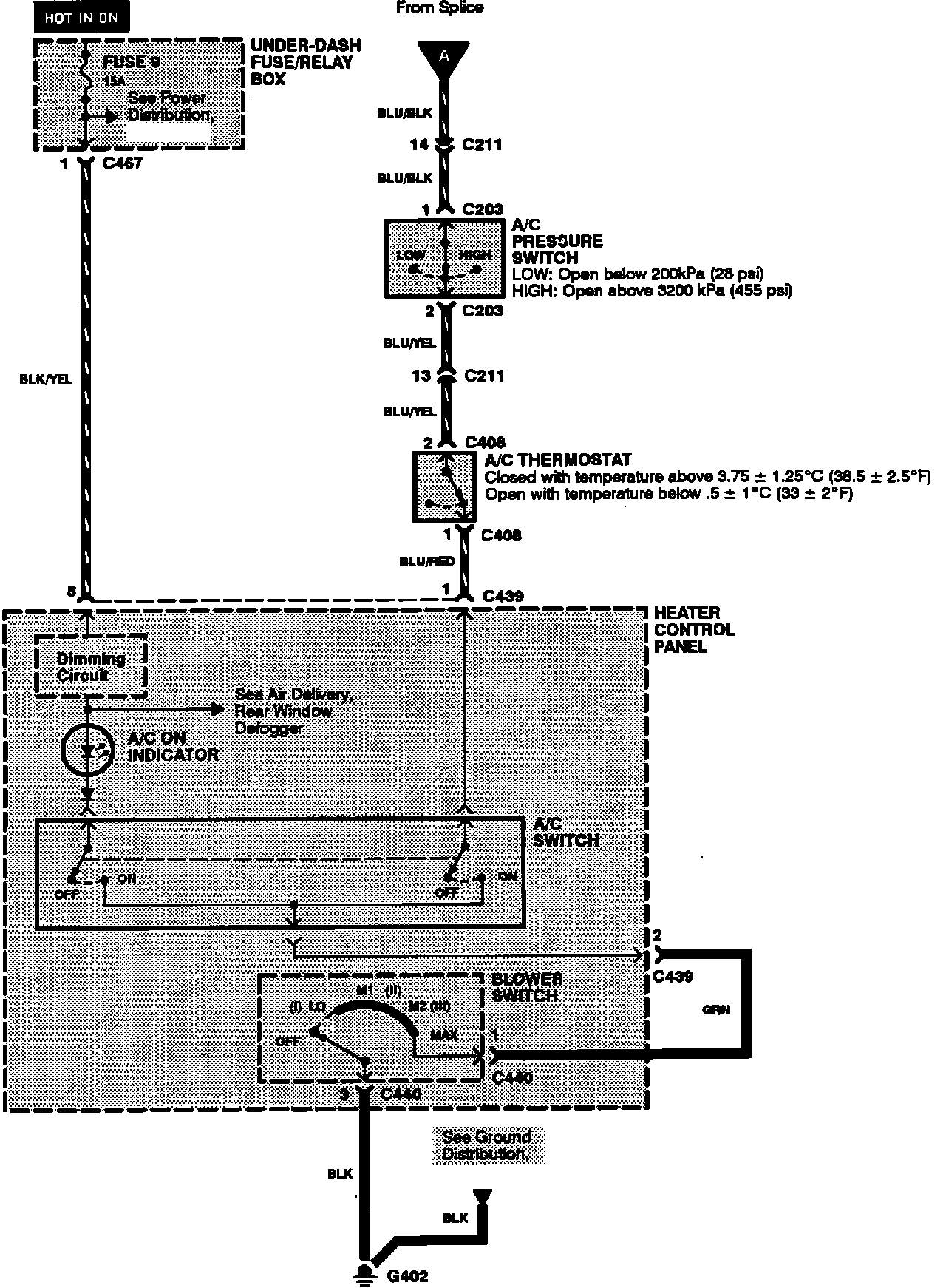

A/C Compressor Controls:

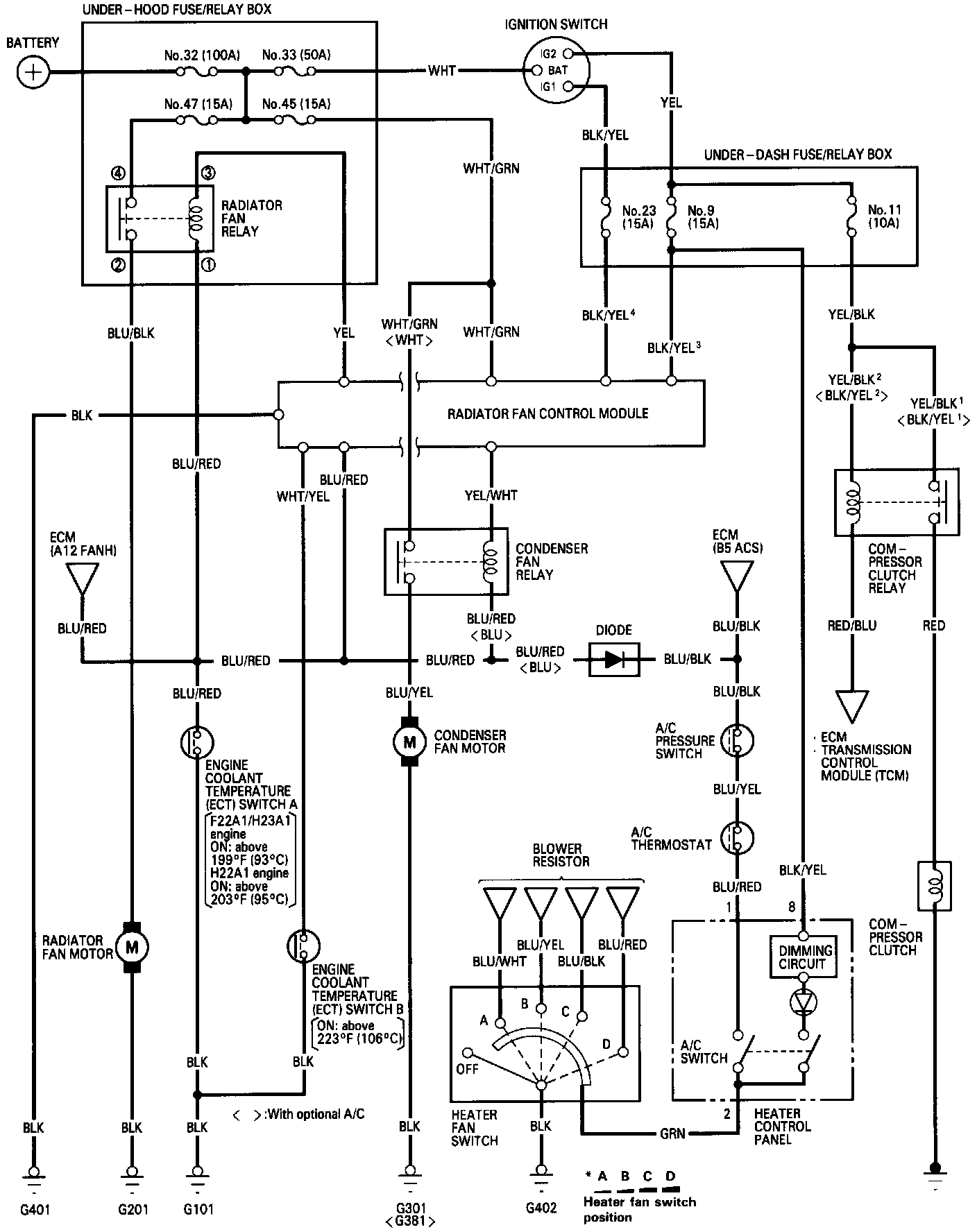

Air Conditioning Circuit Diagram:
