Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> A/C Compressor Controls

A/C Compressor Controls

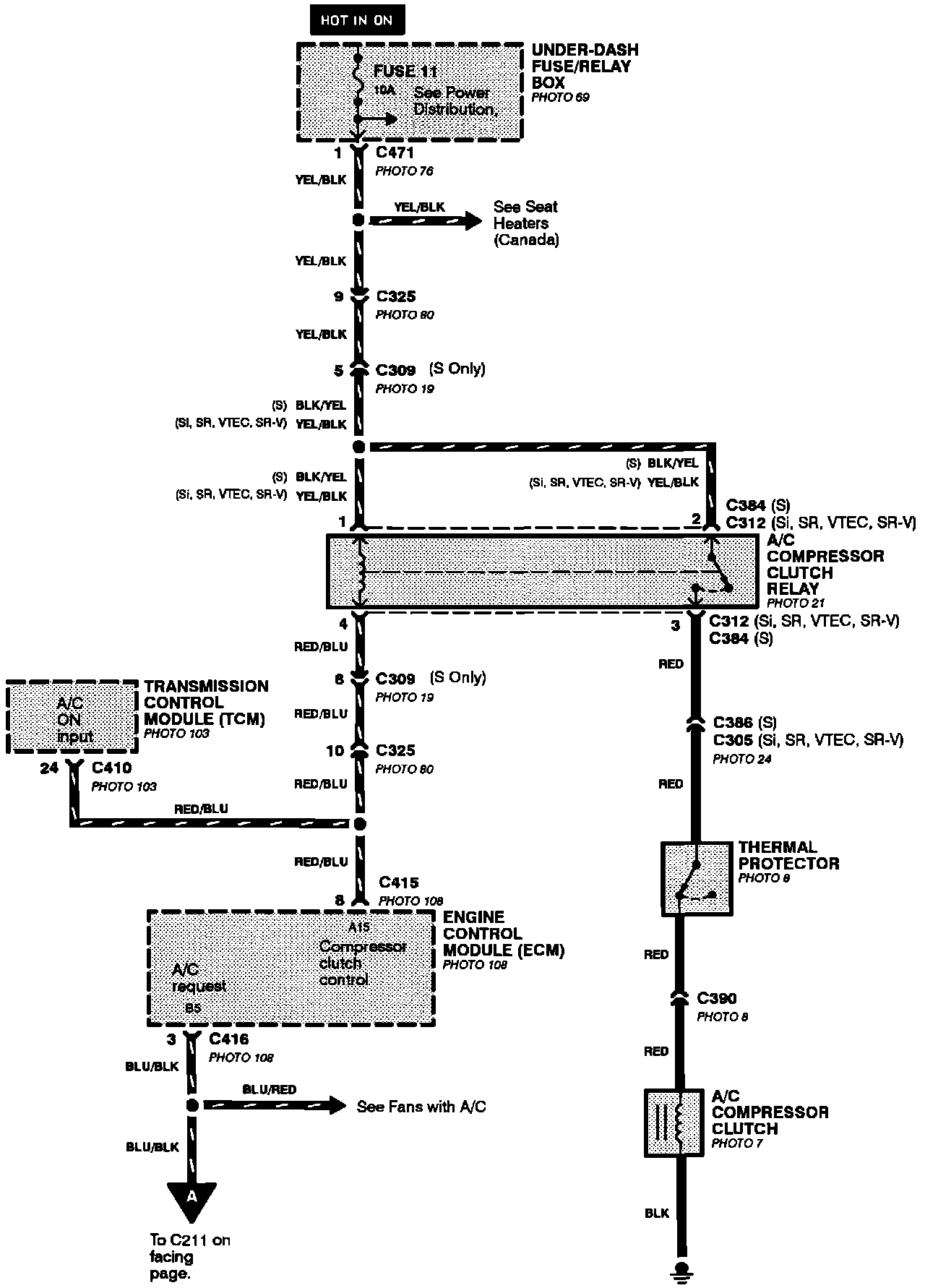

A/C Compressor Controls:

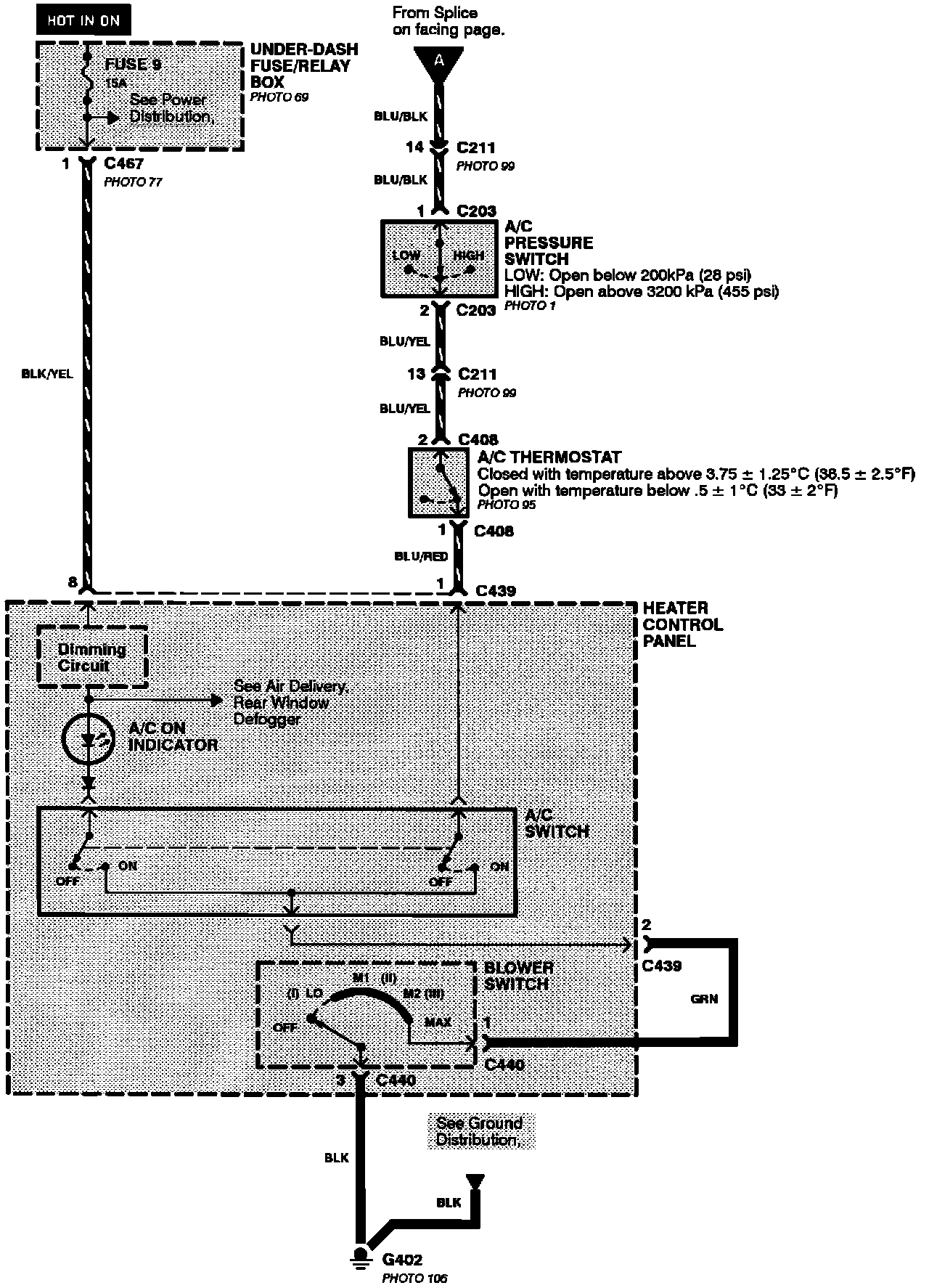

A/C Compressor Controls:
