Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Condenser Fan >> S Models >> Without A/C

Without A/C

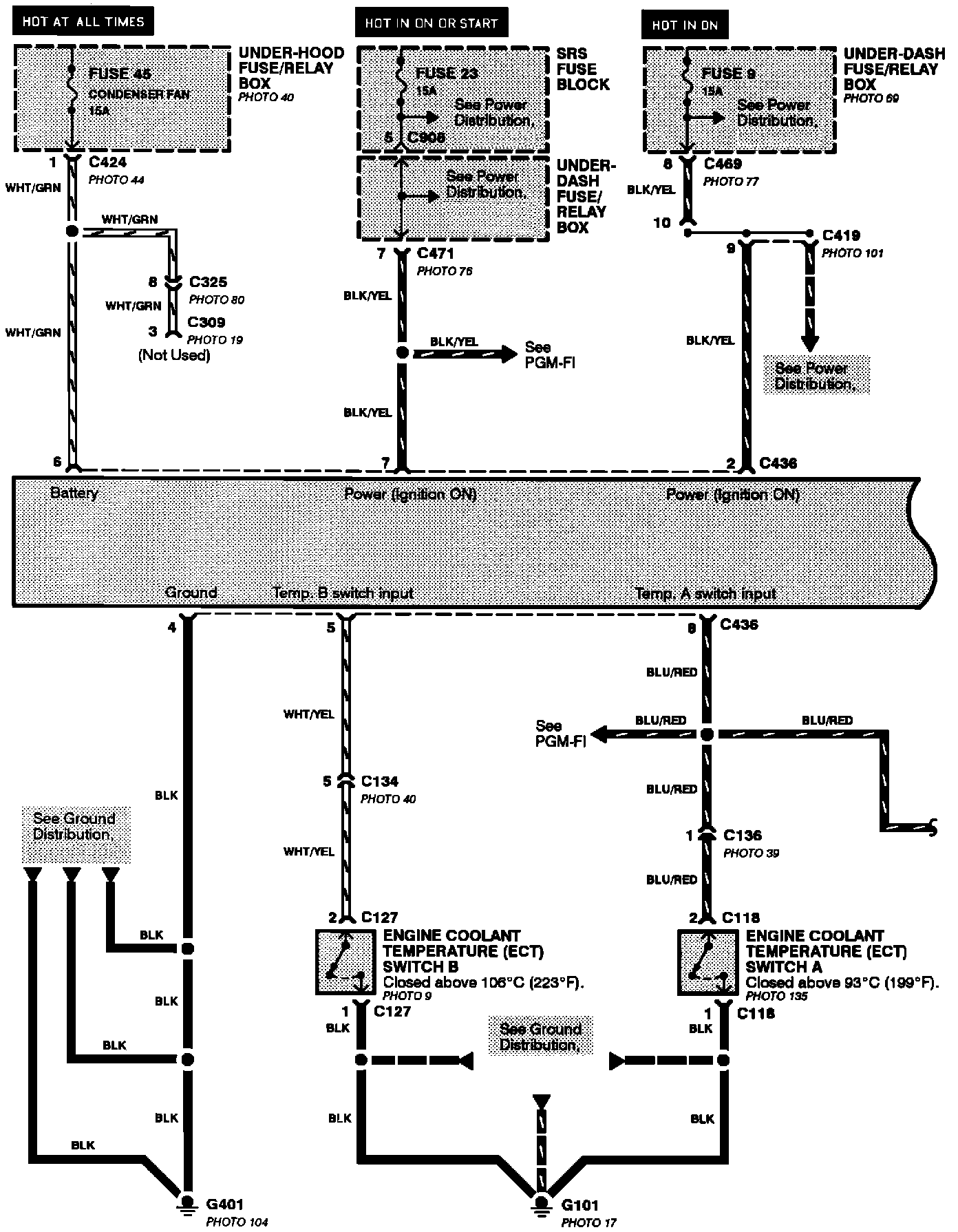

Fans: Condenser And Radiator Fans:
