Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Condenser Fan
>>
S Models
>>
With A/C
With A/C

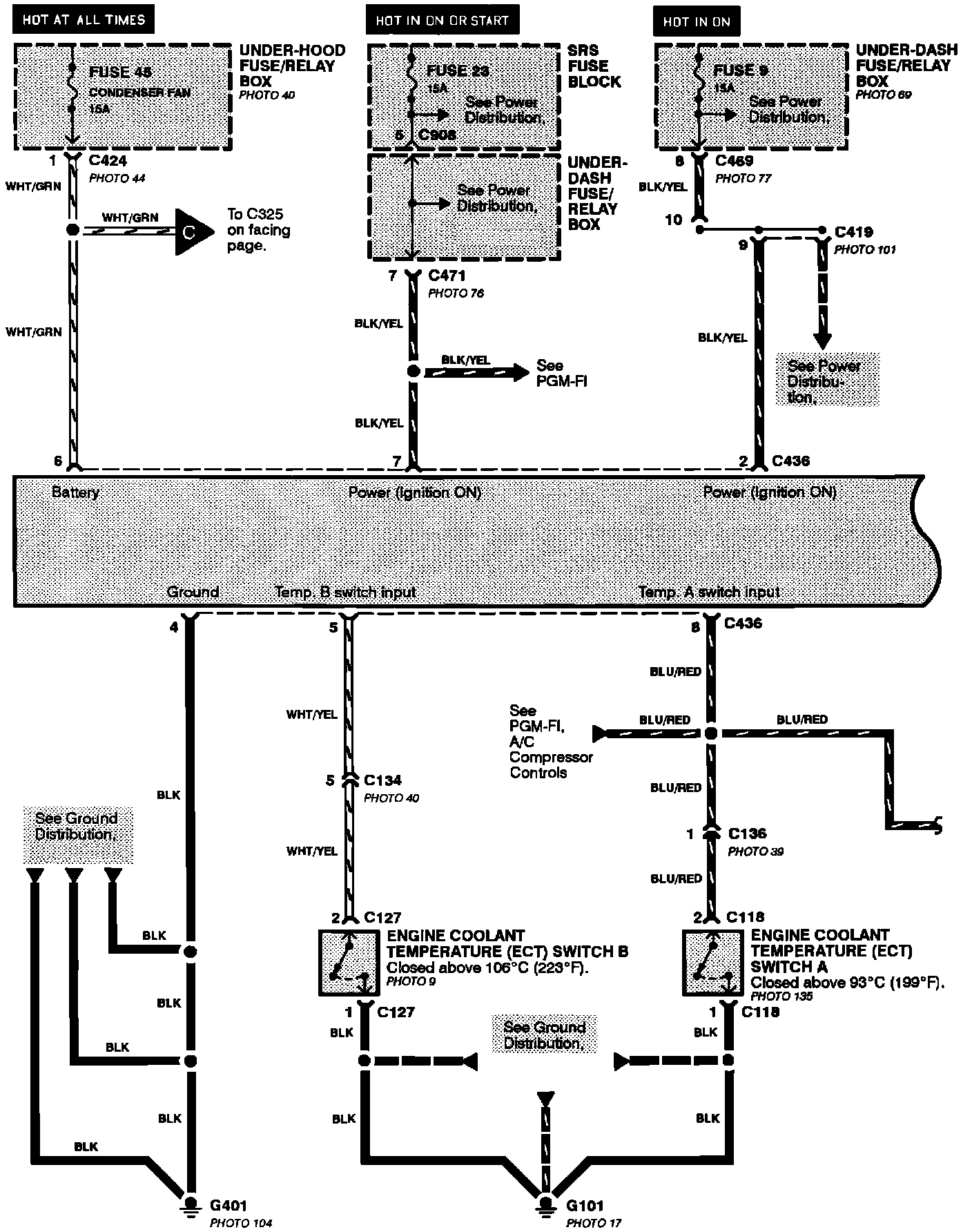

Fans: Condenser And Radiator Fans:

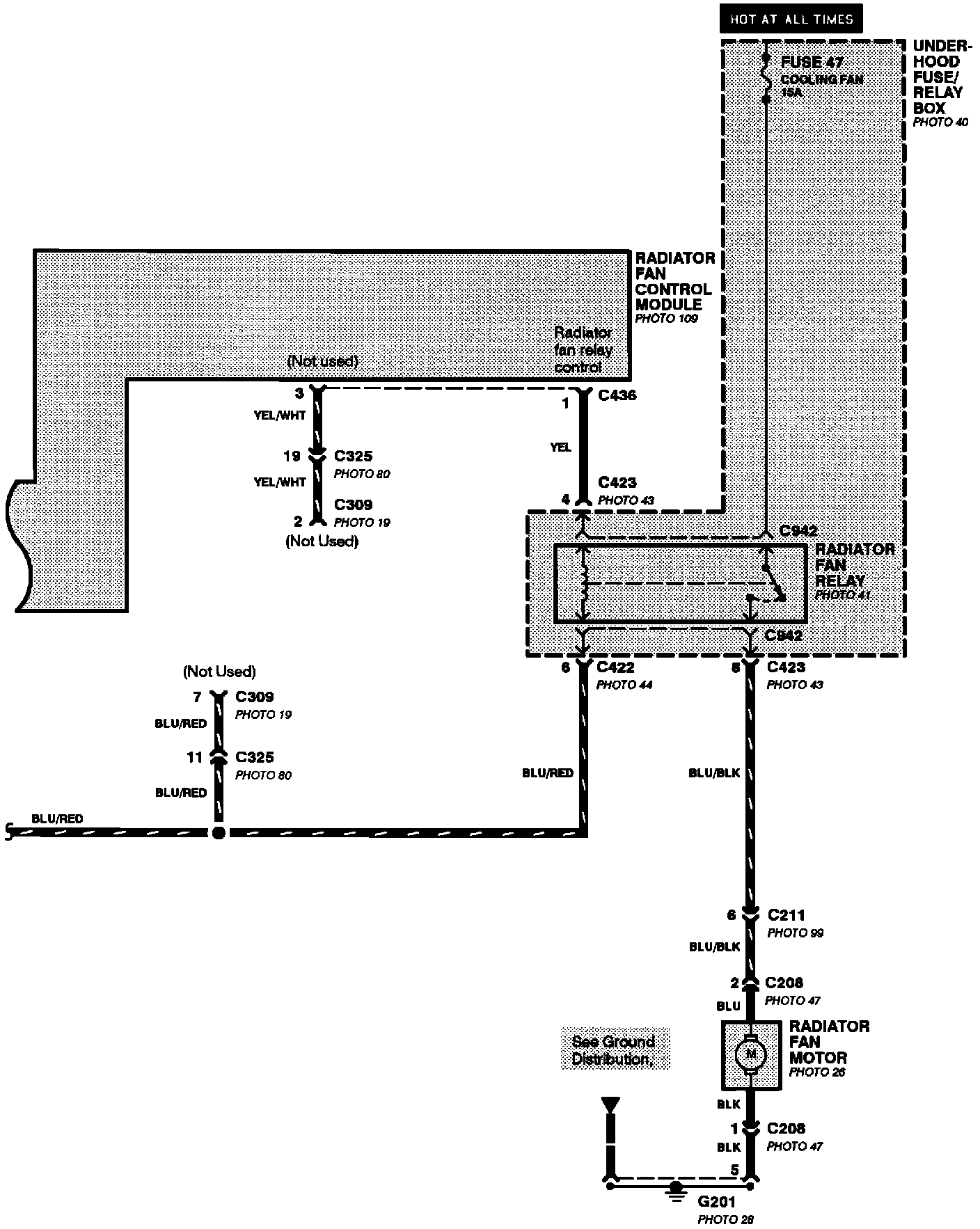

Fans: Condenser And Radiator Fans:

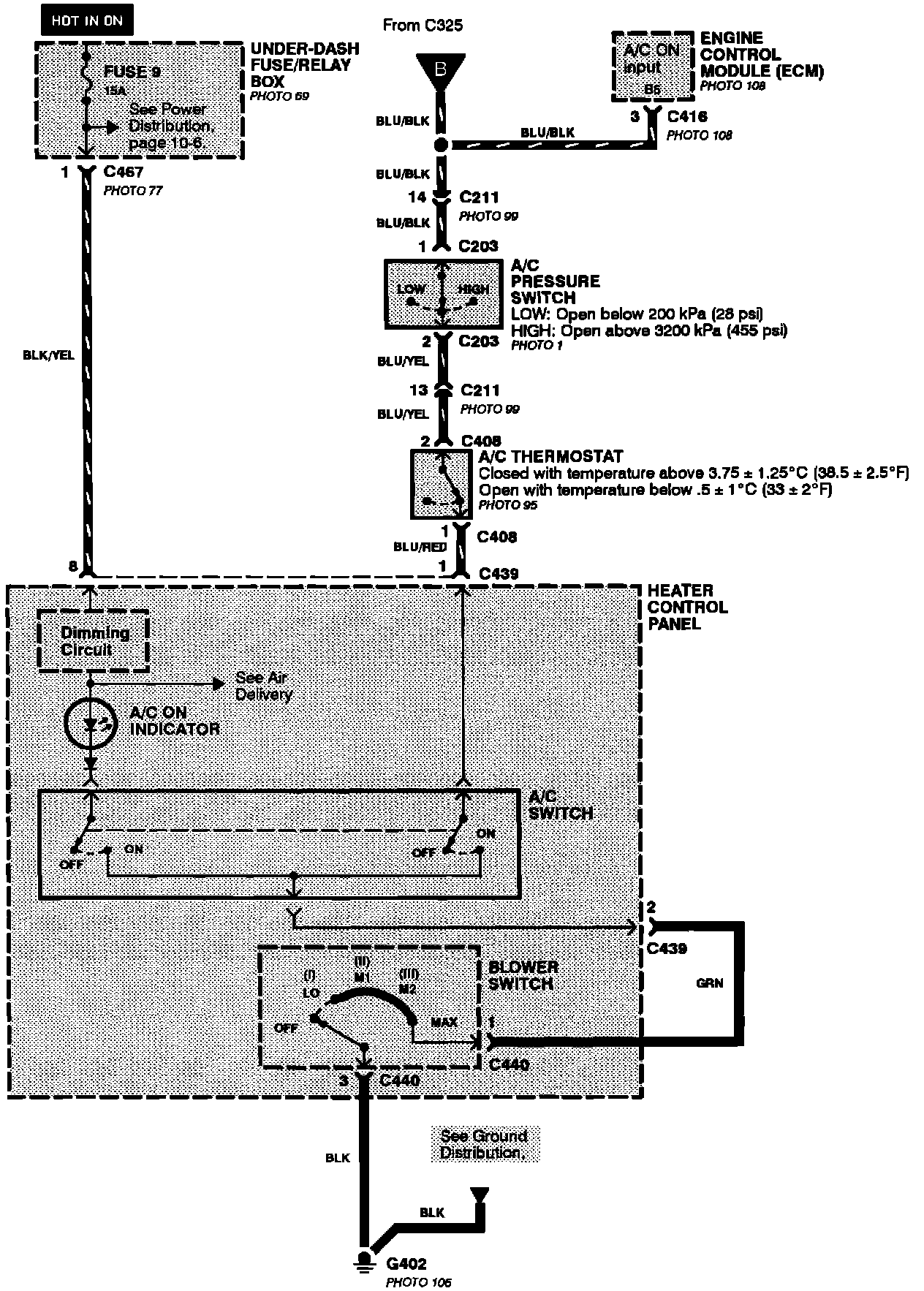

Fans: Condenser And Radiator Fans:

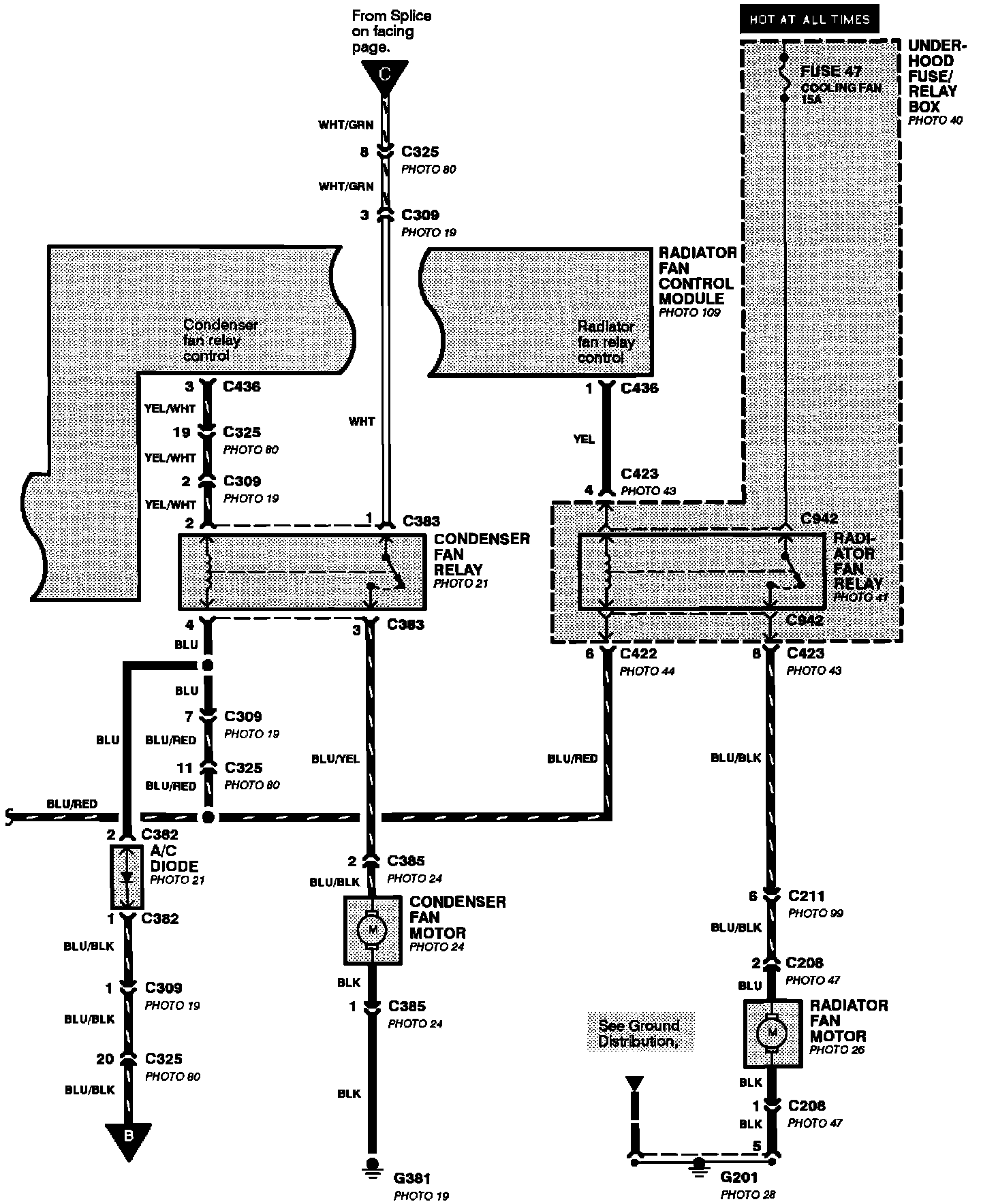

Fans: Condenser And Radiator Fans:
