Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> System Diagram >> USA (Less Daytime Running)

USA (Less Daytime Running)

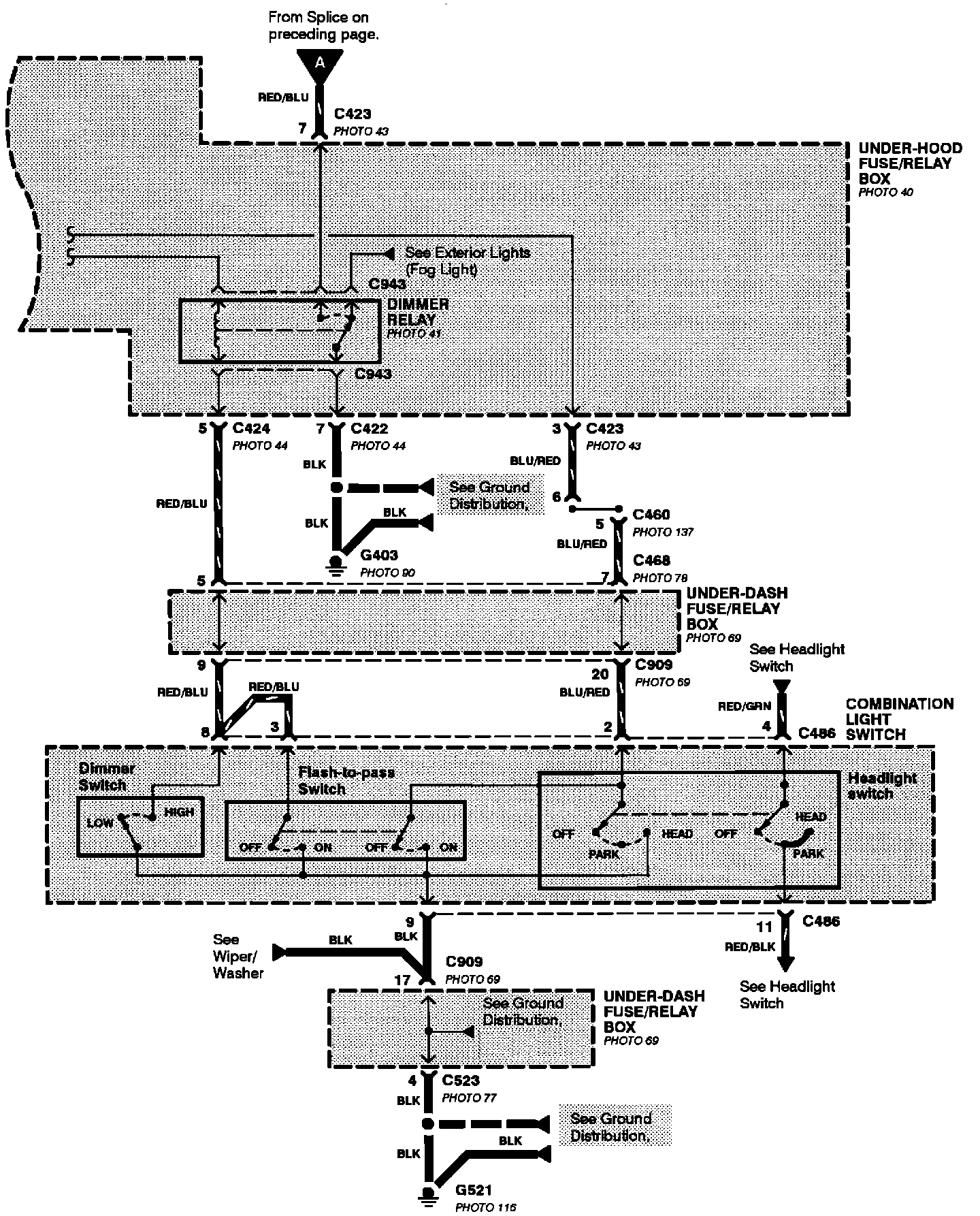

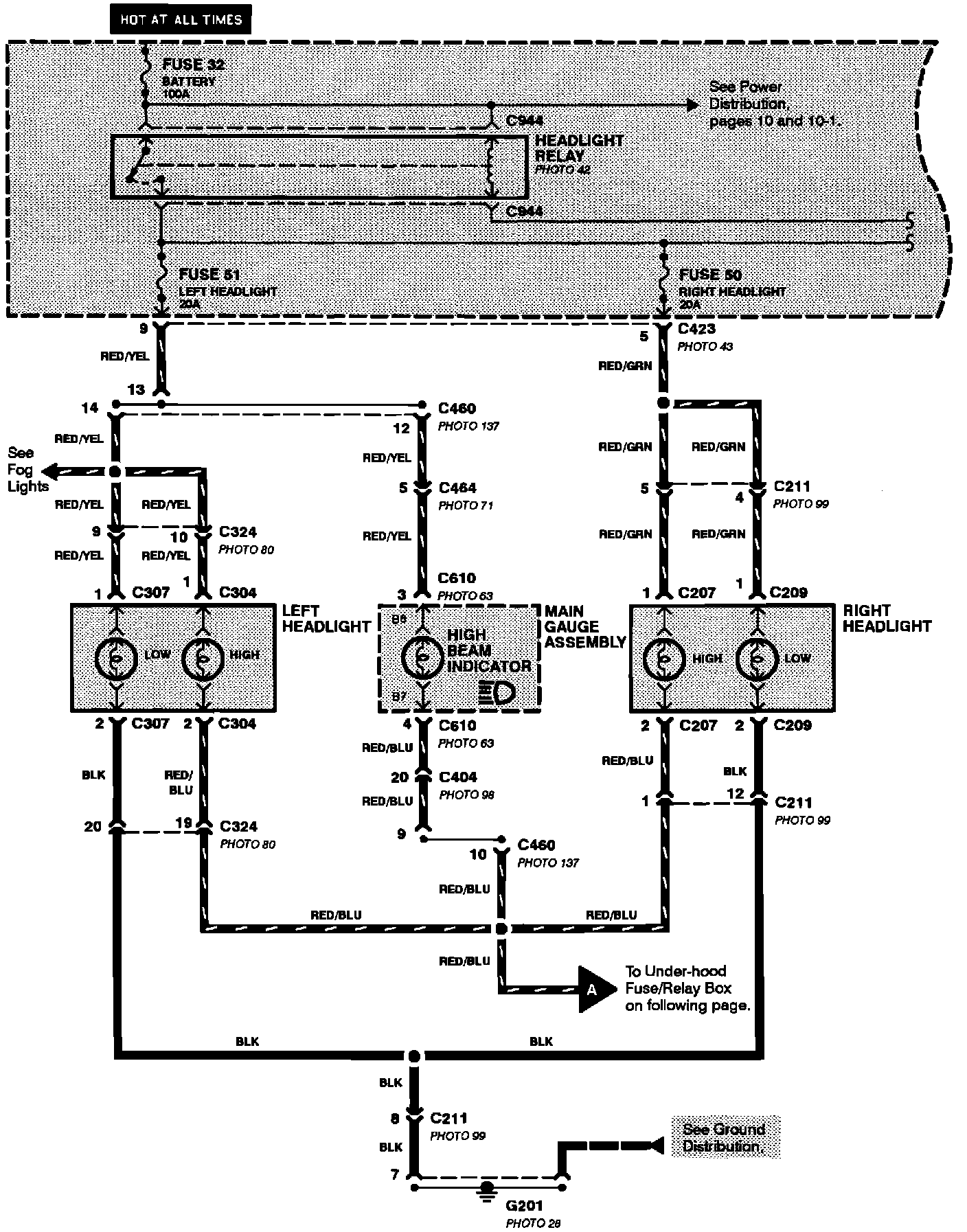

Exterior Lights: Headlights (USA):



Exterior Lights: Headlights (USA):
