Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> System Diagram >> Canada (Daytime Running Lamps)

Canada (Daytime Running Lamps)

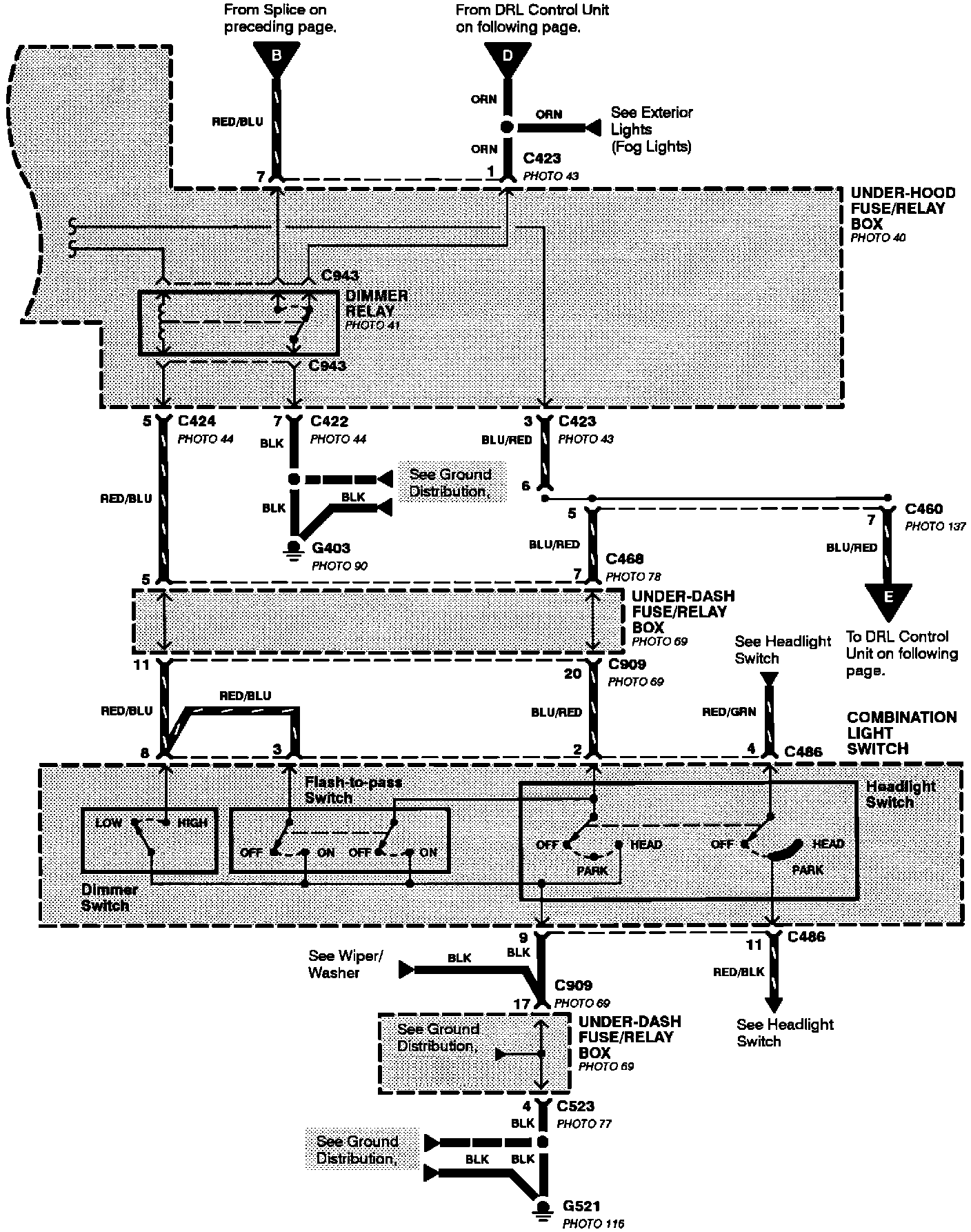

Exterior Lights: Headlights (Canada):

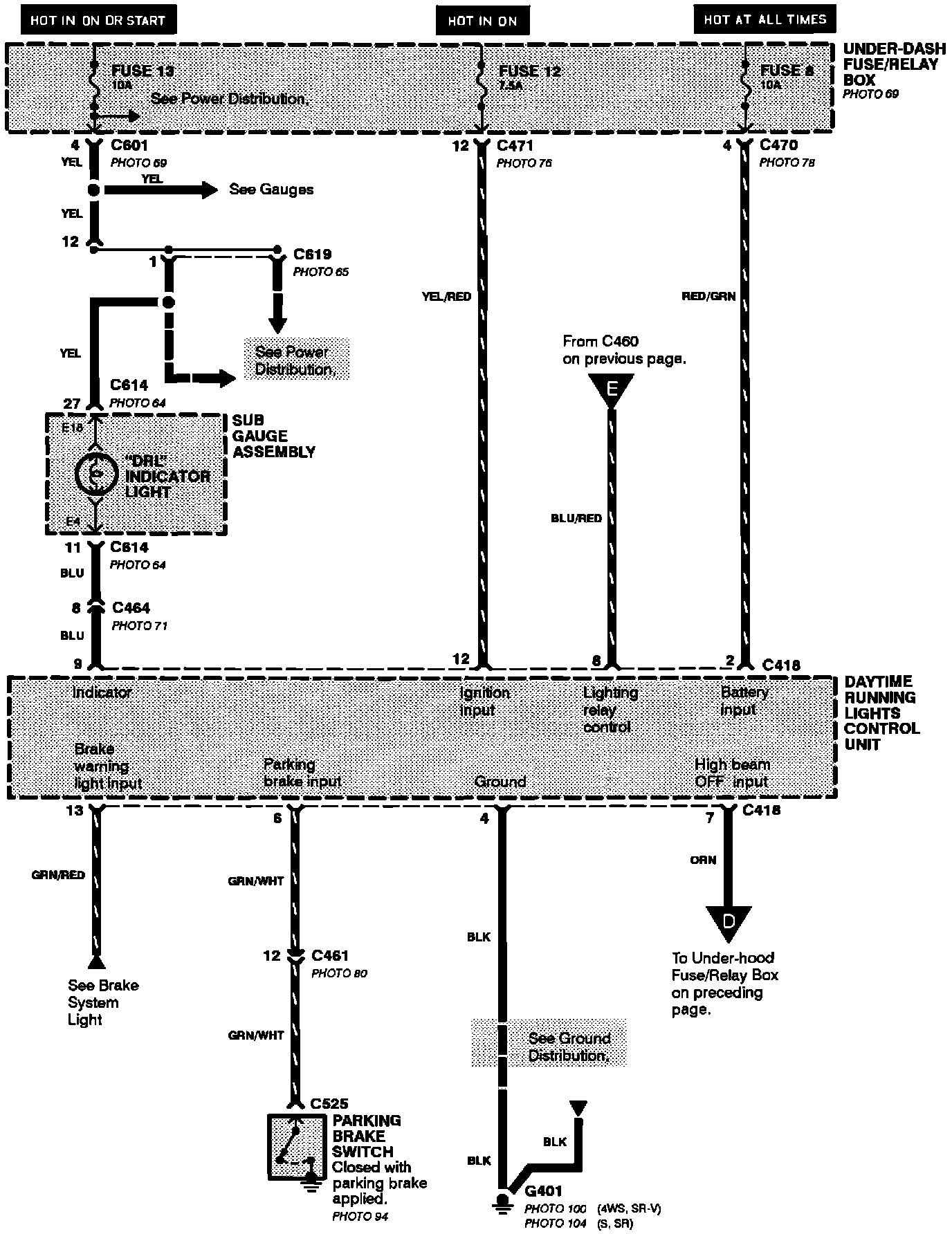

Exterior Lights: Headlights (Canada):

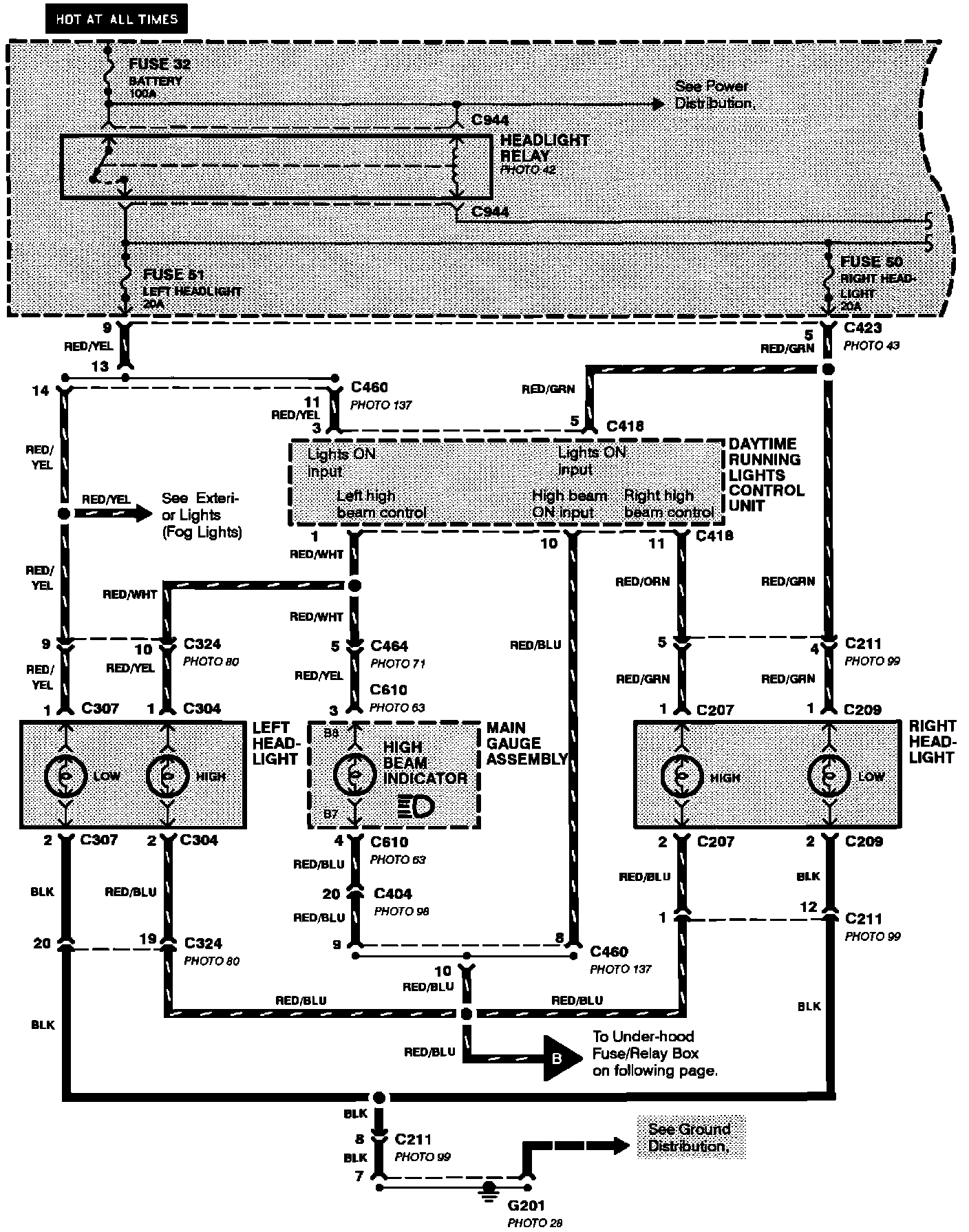

Exterior Lights: Headlights (Canada):
