Audible Warning Device
Audible Warning Device

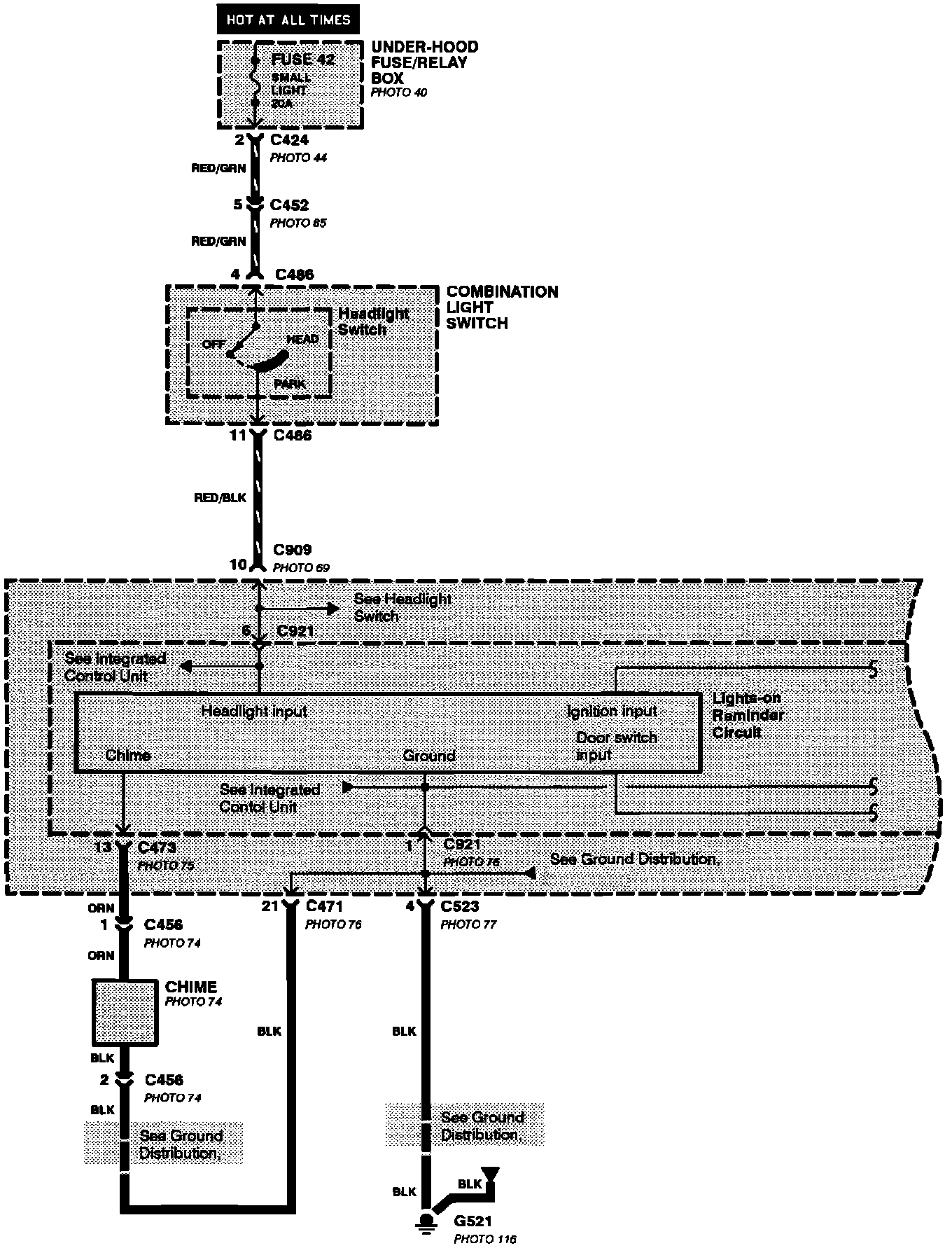

Seat Belt, Lights-on And Ignition Key Reminders: Lights-on Reminder:

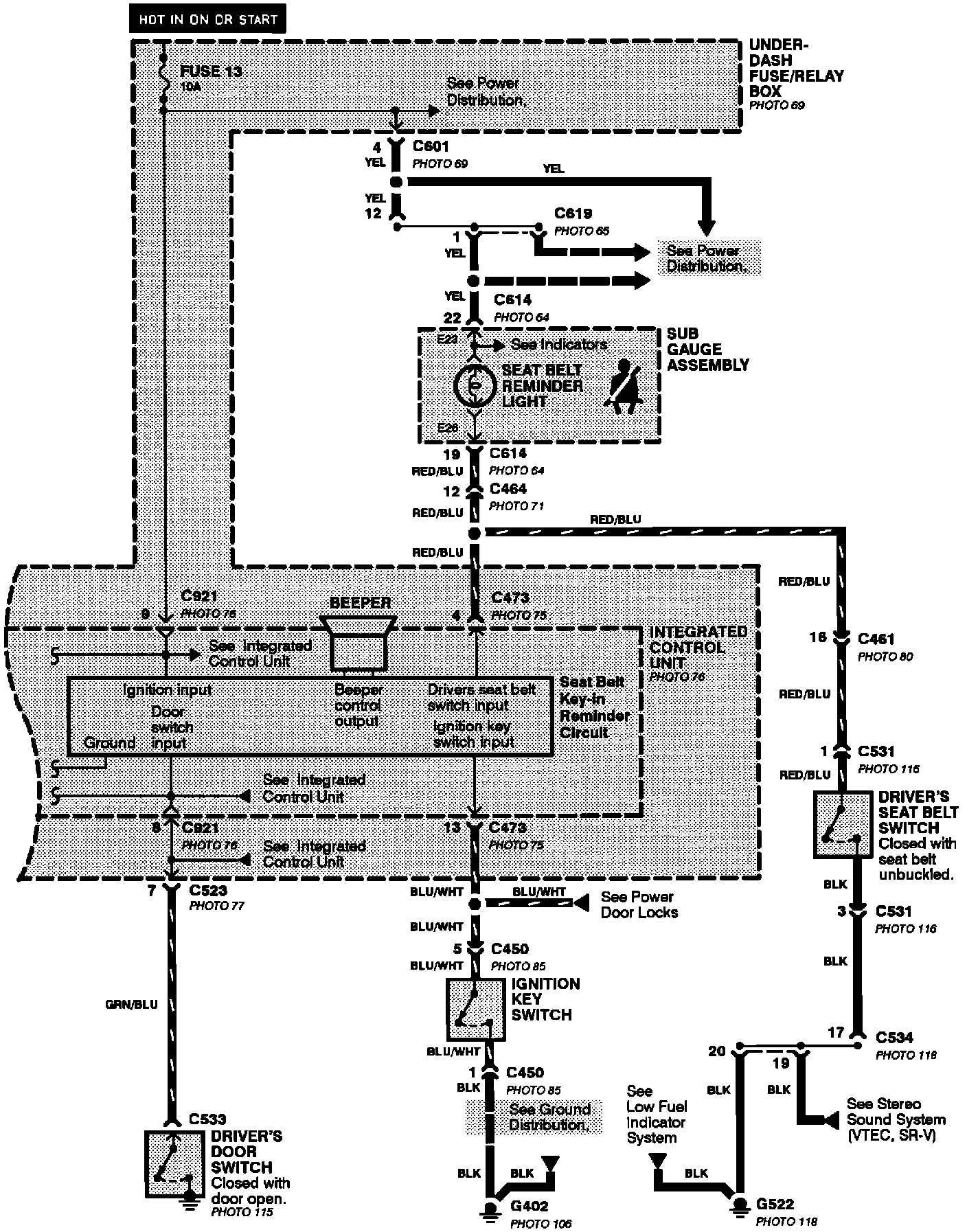

Seat Belt, Lights-on And Ignition Key Reminders: Seat Belt And Ignition Key Reminders:
