W/4 Wheel Steering

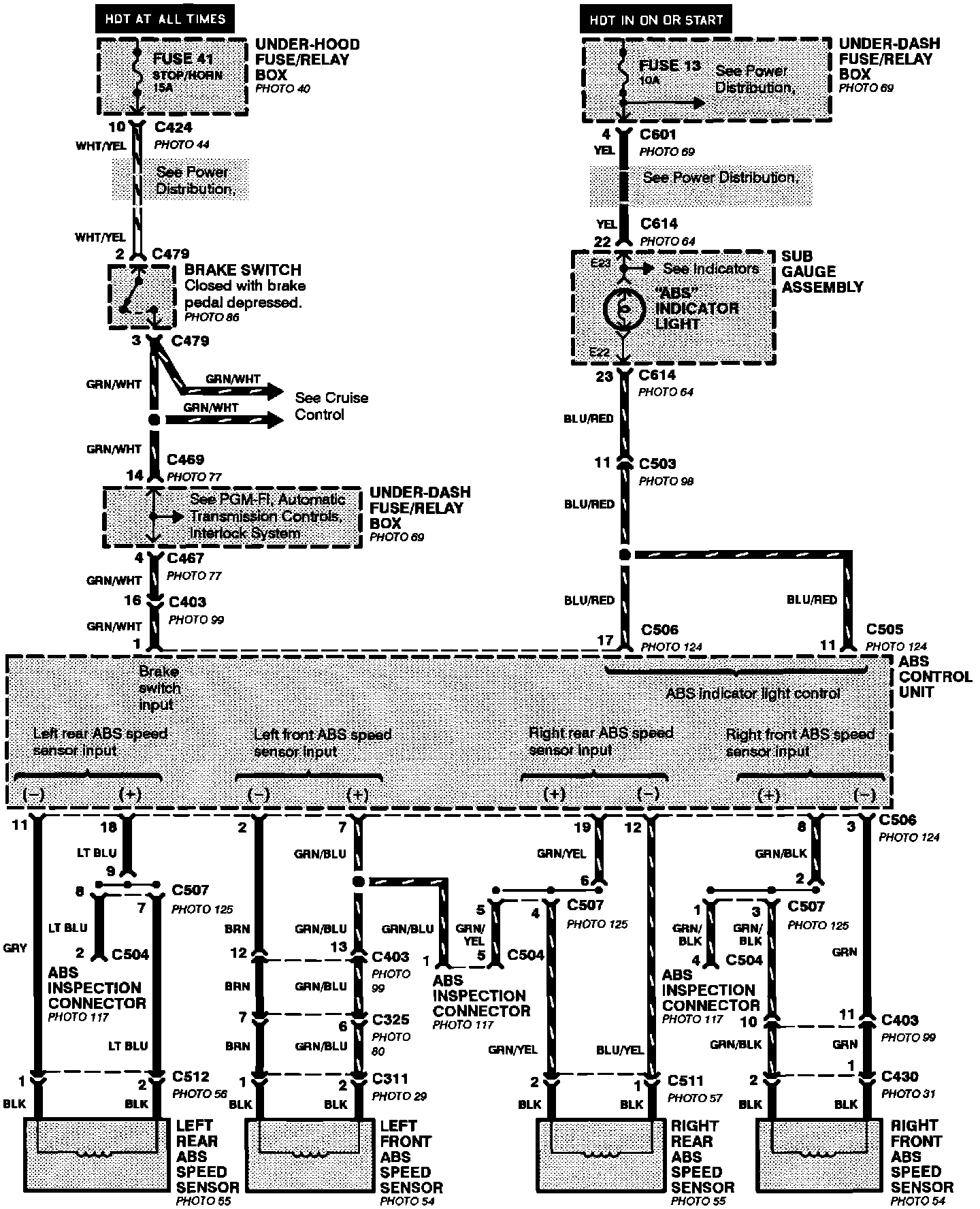

Anti-Lock Brake System (ABS)(With Four Wheel Steering): Brake Switch, Indicator And Wheel Speed Sensor Inputs:

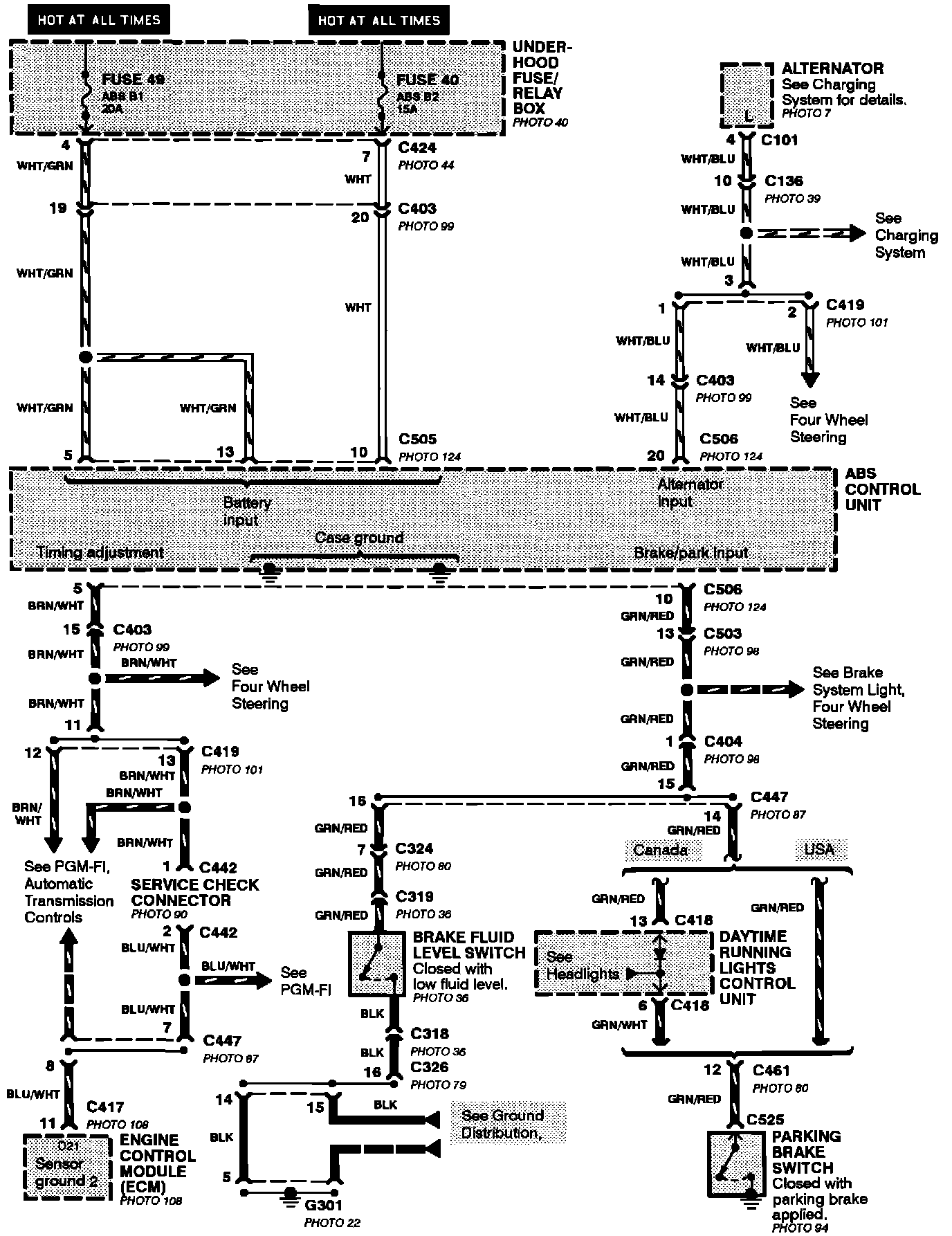

Anti-Lock Brake System (ABS)(With Four Wheel Steering): Power, Brake Fluid Switch And Parking Brake Switch Inputs:

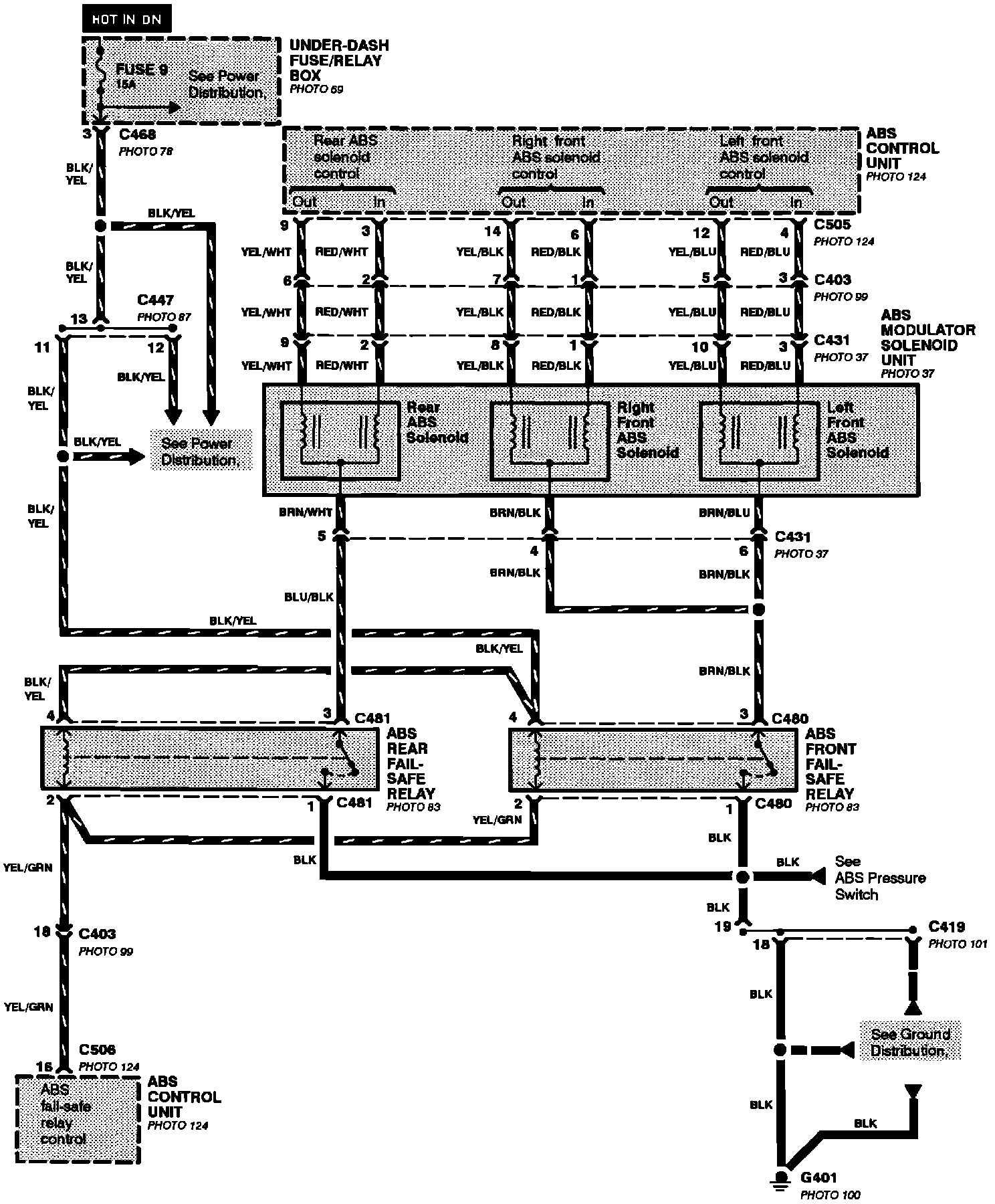

Anti-Lock Brake System (ABS)(With Four Wheel Steering): Fail Safe Relays And Modulator Unit:

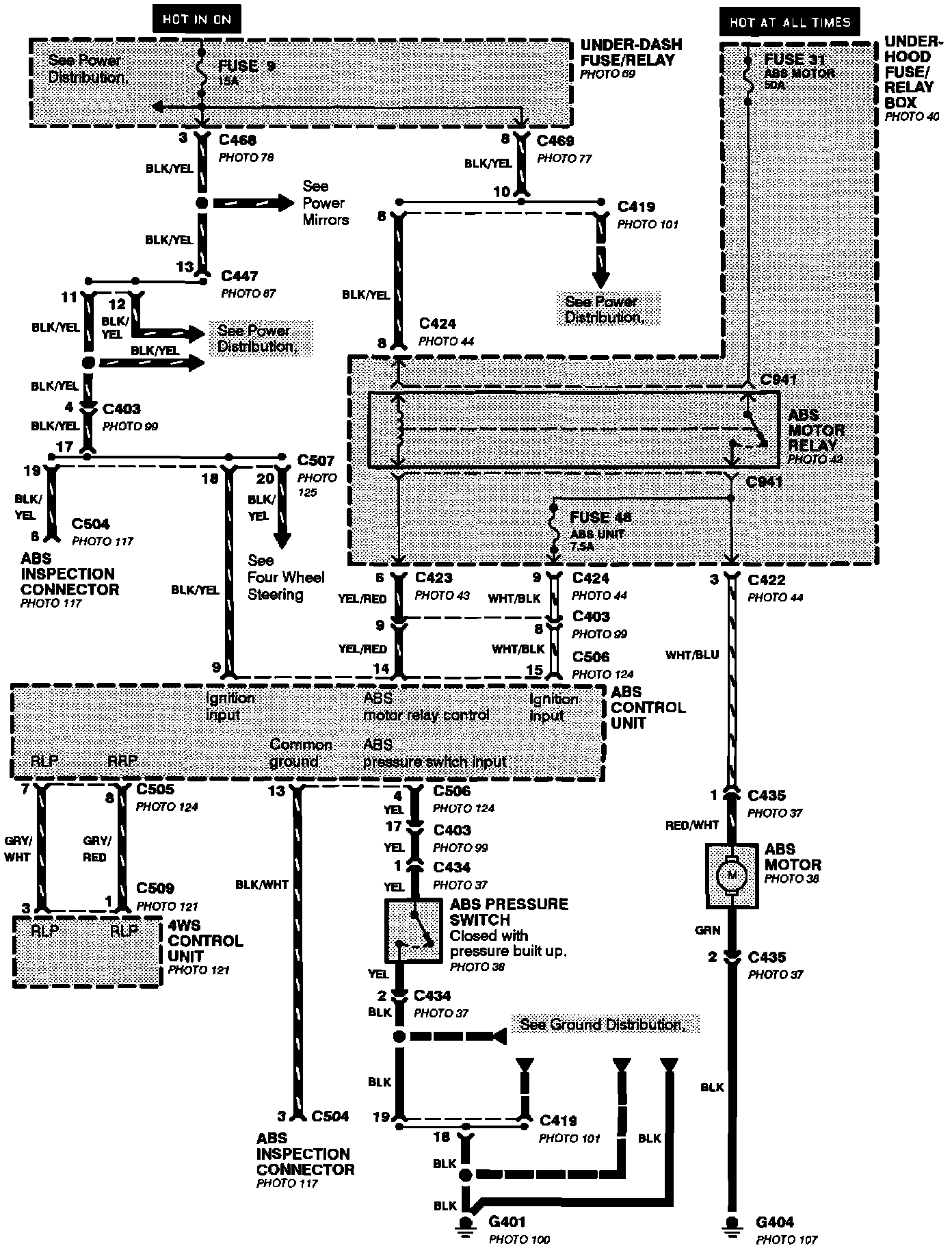

Anti-Lock Brake System (ABS)(With Four Wheel Steering): Motor, Pressure Switch And Ignition Inputs:
