Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Wire Harness

Connectors By Wire Harness

Main Wire Harness (Right Side Of Dash And Floor Branch):

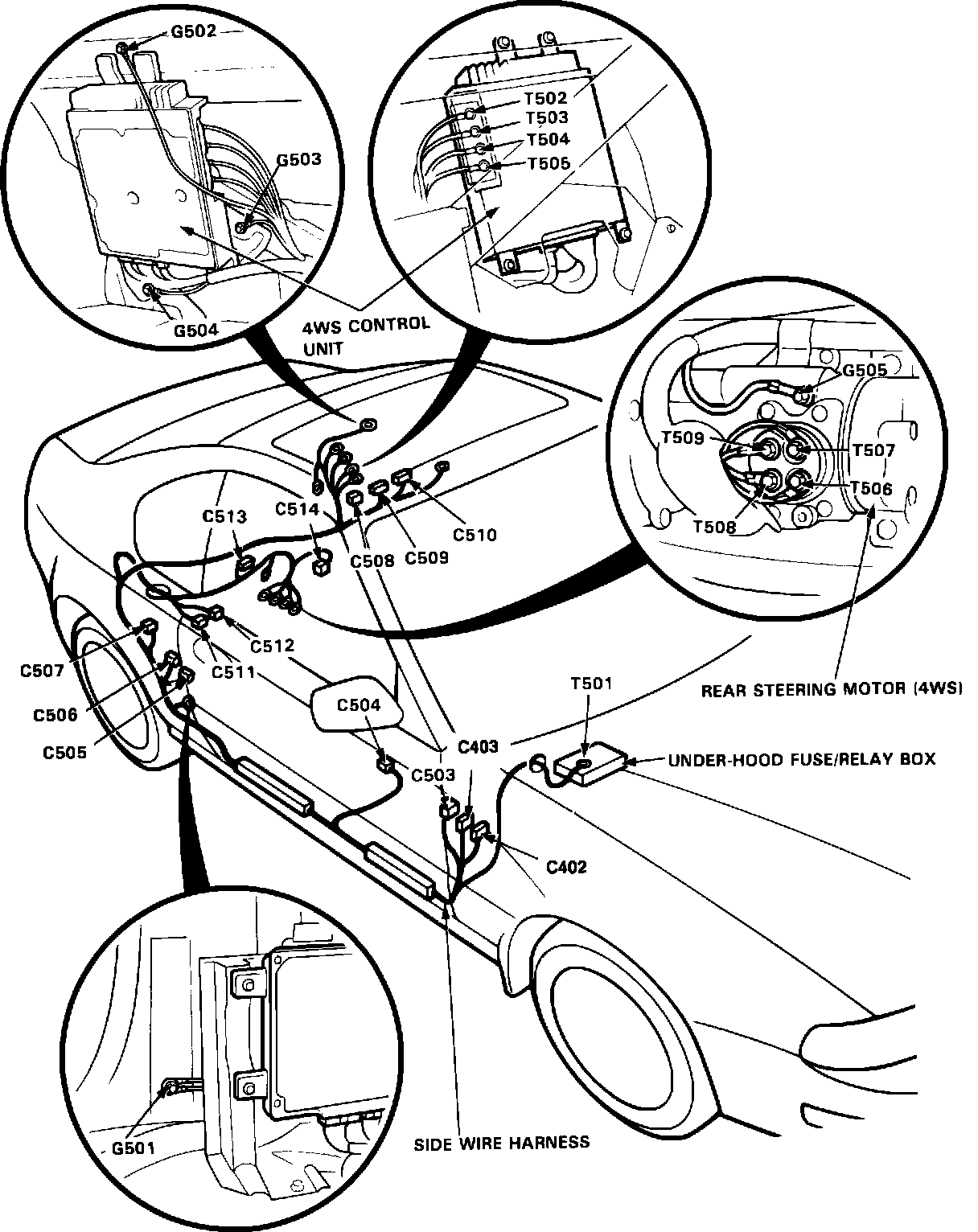

Right Side Wire Harness:
