Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Identification >> G401 Thru T509

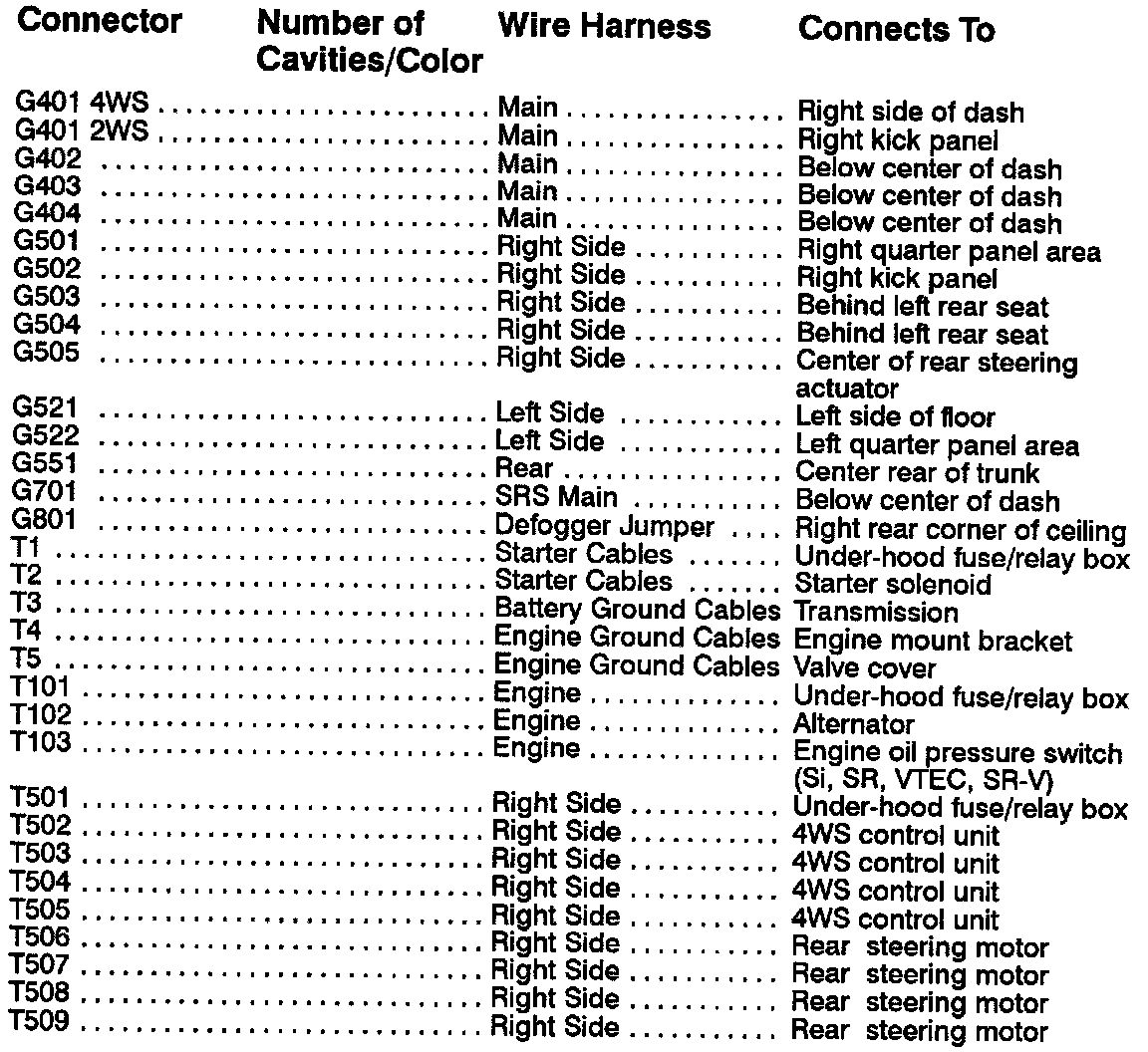

G401 Thru T509

Connector Index:
