Parking Brake Cable: Service and Repair

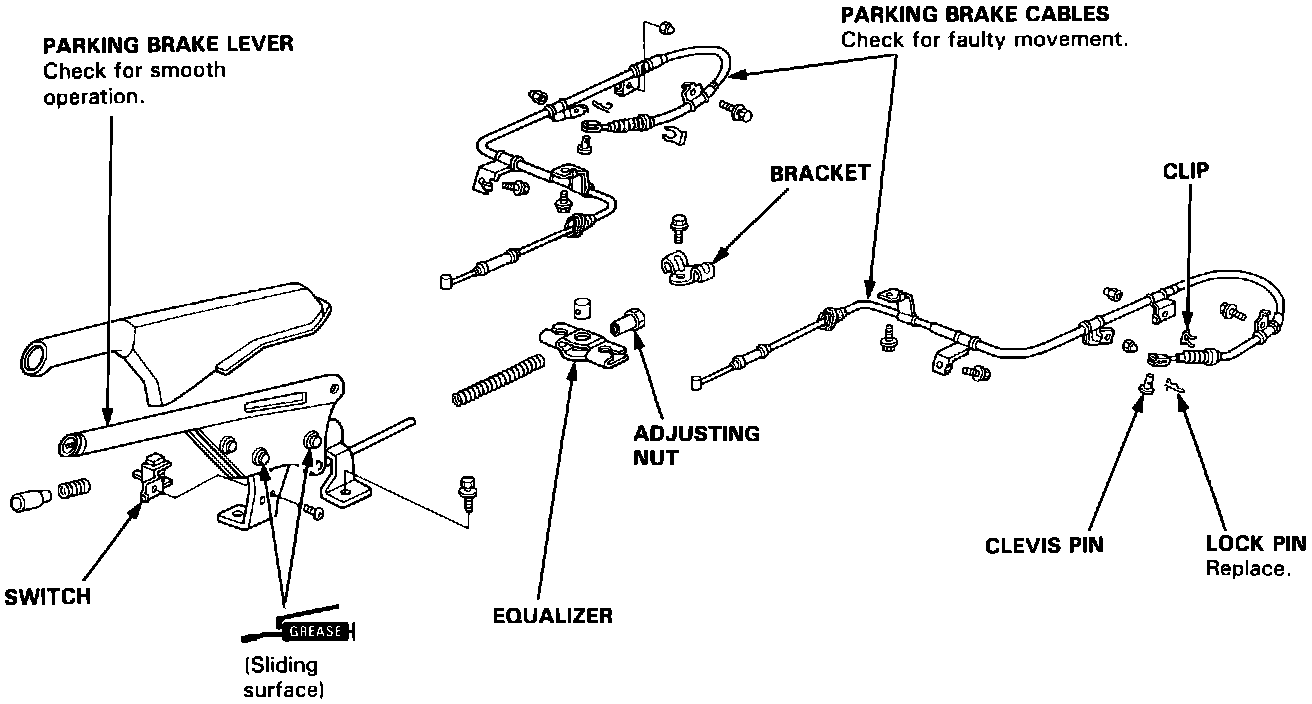

Explode View Of The Parking Brake System:

CAUTION: The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature cable failure.

Parking Brake Cable Removal:

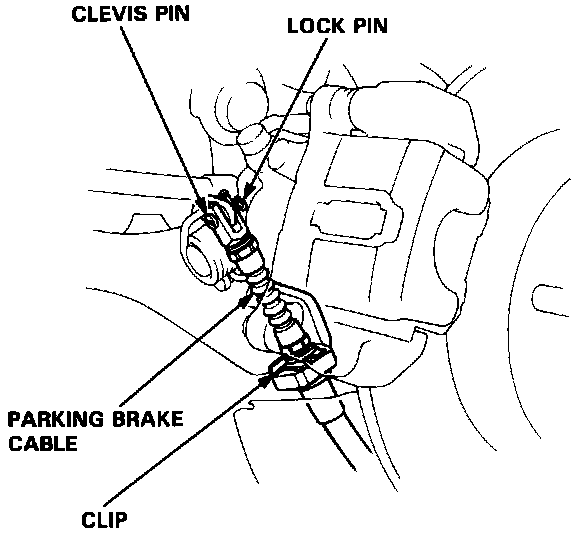

Disconnect the parking brake cable from the lever on the caliper by removing the lock pin and clevis pin, and remove the cable from the arm by removing the clip.
