Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Hydraulic Control Assembly - Antilock Brakes
>>
Service and Repair
>>
Power Unit
Power Unit

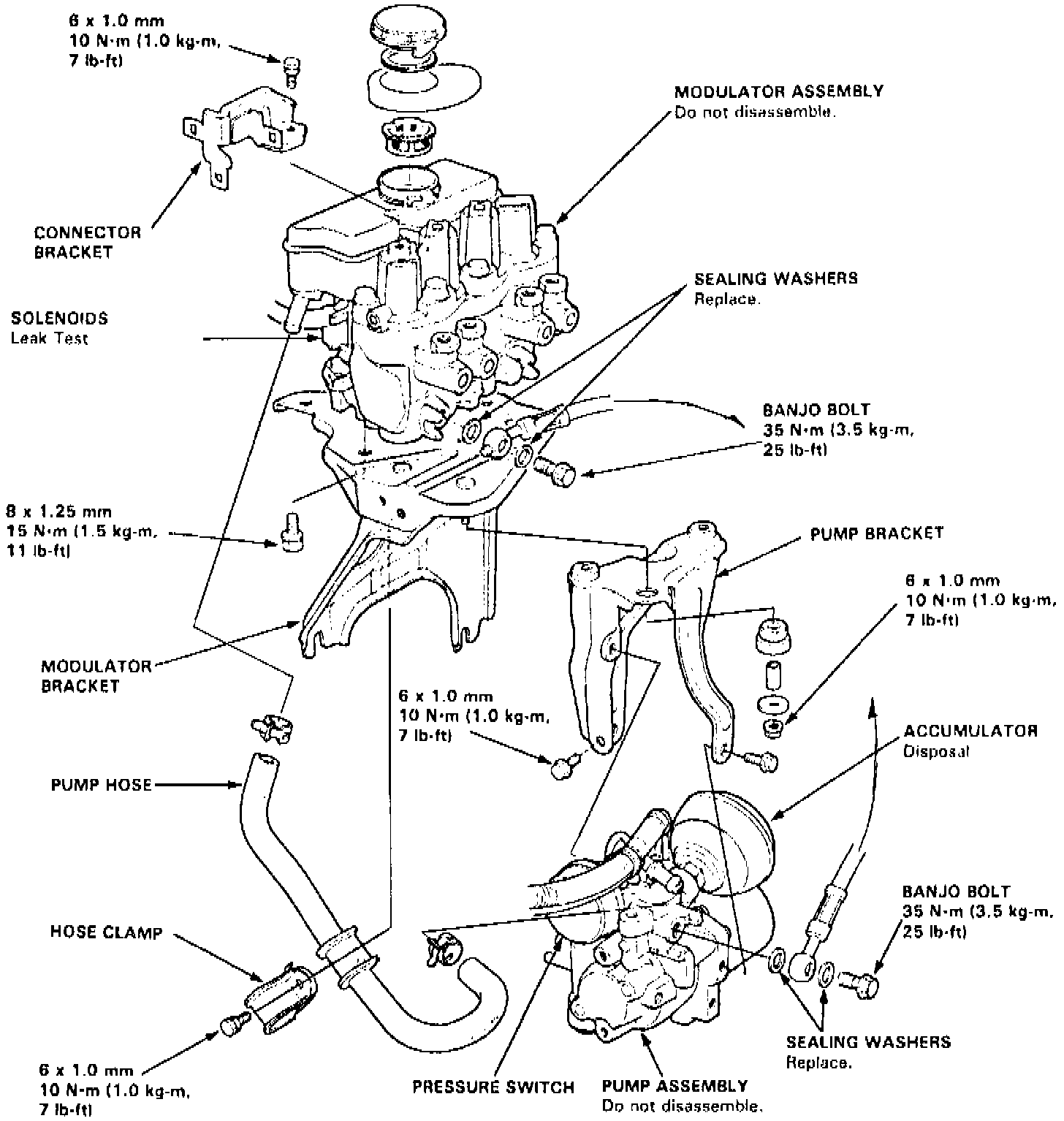

Fig. 101 Power Unit Replacement:
Refer to
Fig. 101
when replacing
power unit
.
