Disassembly

WARNING:
^ Never use an air hose or dry brush to clean brake assemblies.
^ Use an OSHA-approved vacuum cleaner to avoid breathing brake dust.

CAUTION:
^ Do not spill brake fluid on the car; it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
^ To prevent spills, cover hose joints with rags or shop towels.
^ Clean all parts in brake fluid and air dry; blow out all passages with compressed air.

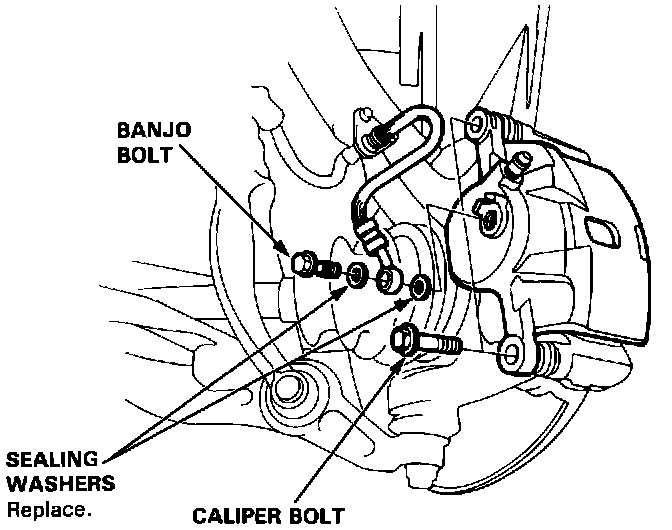

1. Remove banjo bolt and disconnect the brake hose from the caliper.

Front Brake Caliper Removal:

2. Remove the caliper bolts, then remove the caliper.

Brake Caliper Piston Removal:

3. If necessary, apply compressed air to caliper fluid inlet to get the piston out. Place a shop rag or wooden block as shown to cushion the piston when it is expelled.
- Use low pressure air in short spurts.
- Remove the piston from the caliper.


WARNING:
^ Do not place your fingers in front of the piston.
^ Do not use high air pressure; use an OSHA approved 30 PSI nozzle.

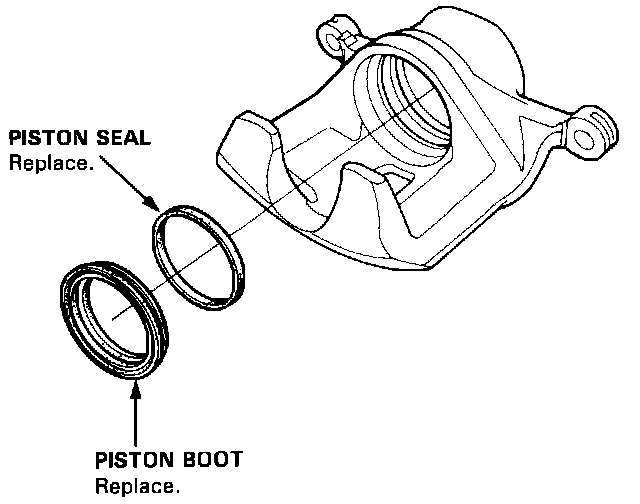

Piston Boot And Seal Removal:

4. Remove the piston boot and piston seal.

CAUTION: Take care not to damage the cylinder bore.
