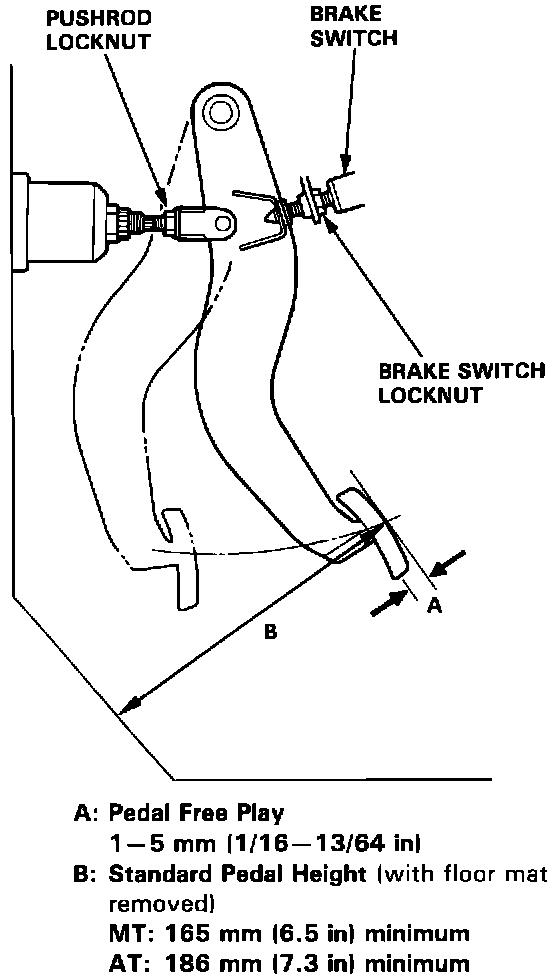

Brake Pedal Assy: Adjustments

1. Disconnect the brake switch connector, loosen the brake switch locknut and back off the brake switch until it is no longer touching the brake pedal.

Pedal Height Measurement:

2. Measure pedal height from the left side center of the pedal surface.

Brake Pedal Pushrod Adjustment:

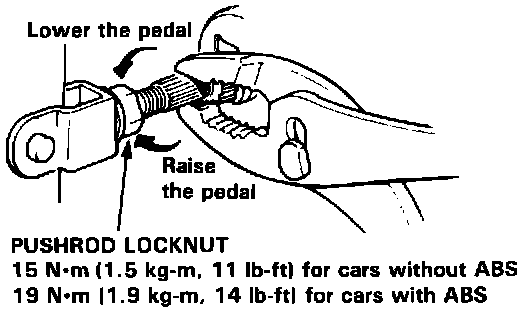

3. Loosen pushrod locknut and screw pushrod in or out with pliers until the standard pedal height from the floor is reached. After adjustment, tighten locknut firmly.

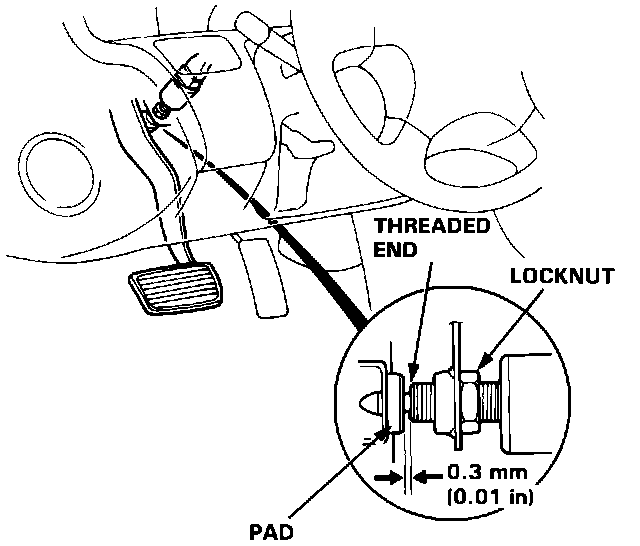

4. Screw in the brake switch until its plunger is fully depressed (threaded end touching the pad on the pedal arm). Then back off the switch 1/4 turn to make 0.01 in (0.3 mm) of clearance between the threaded end and pad. Tighten the locknut firmly. Connect the brake switch connector.

CAUTION: Check that the brake lights go off when the pedal is released.

Brake Pedal Free Play Adjustment:

Brake Pedal Free Play Inspection:
Stop the engine and inspect the play by pushing the pedal by hand.

Brake Pedal Free Play: 1/16-13/64 in (1-5 mm)

CAUTION: If the pedal free play is insufficient, it may result in brake drag.
