Mirrors - Rearview Mirror Tension Adjustment

Bulletin No.
93-046

Model
1990 - 94
ACCORD

1992 - 94
PRELUDE

Applicable To
ALL

File Under
BODY

Issue Date
OCT 29, 1993

Rearview Mirror Tension Adjustment

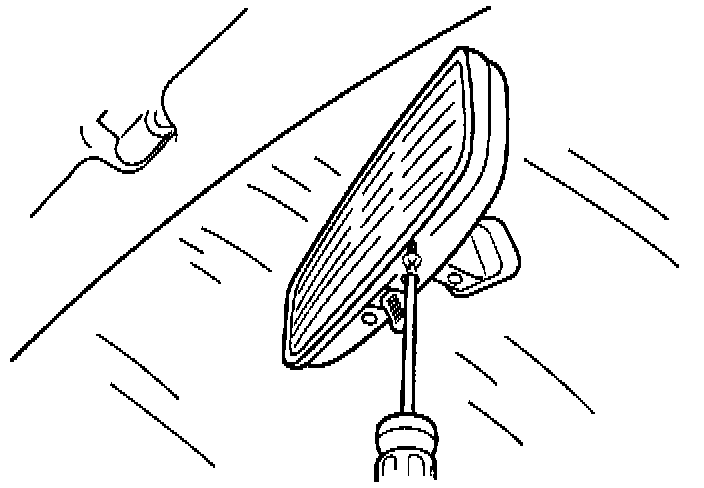

The tension is adjustable on 1990-94 Accord and 1992-94 Prelude rearview mirrors. To access the two adjusting screws, insert a Phillips screwdriver through the two holes in the bottom of the mirror housing. Turn the screws evenly until you reach the desired tension.

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

Operation number: 828350

Flat rate time: 0.2 hour

Failed part: P/N 76430-SM1-A01ZC
H/C 3288917

Defect code: 074

Contention code: B01
