Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Diagrams >> Electrical Diagrams

Electrical Diagrams

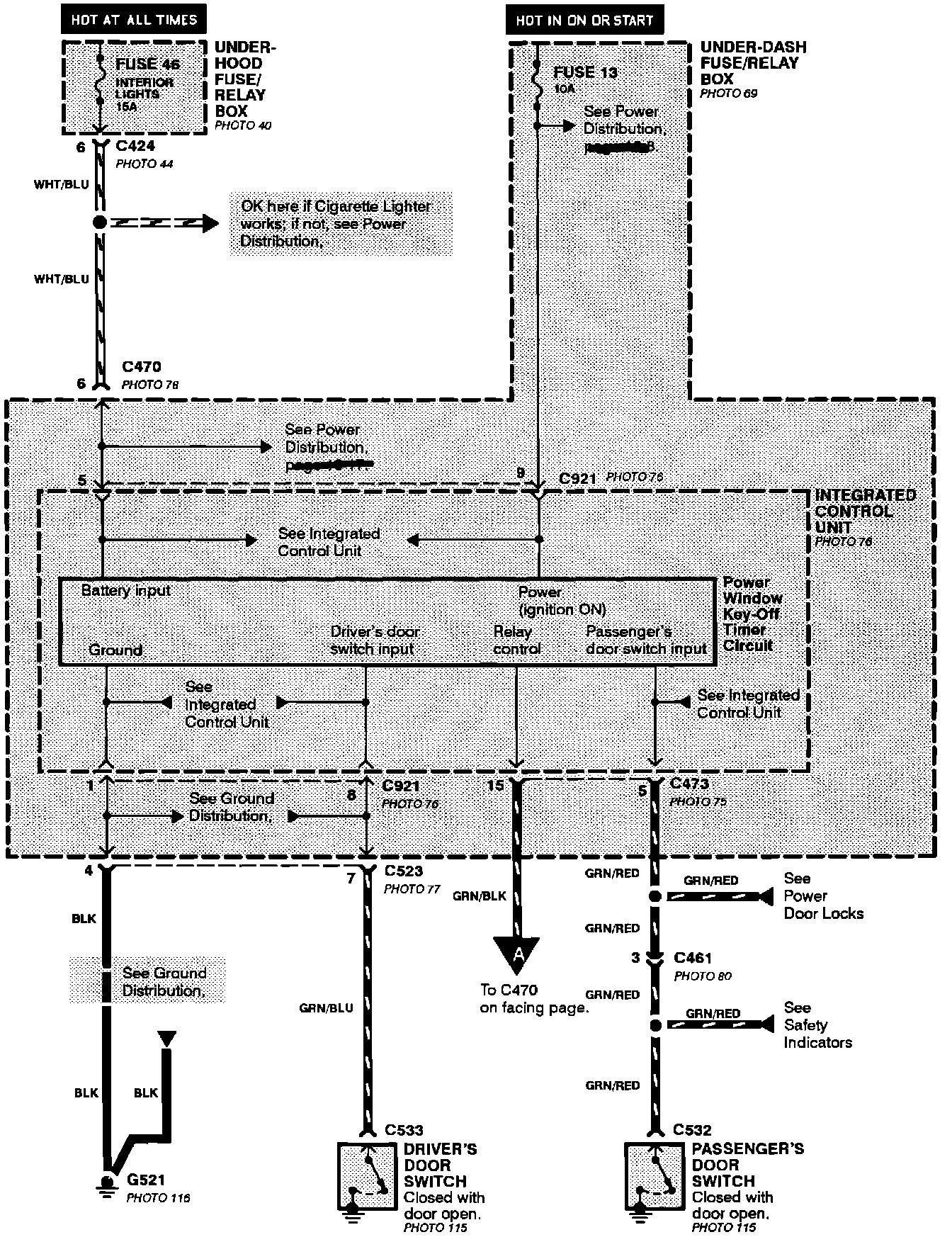

Power Sunroof: Key-off Timer Circuit:

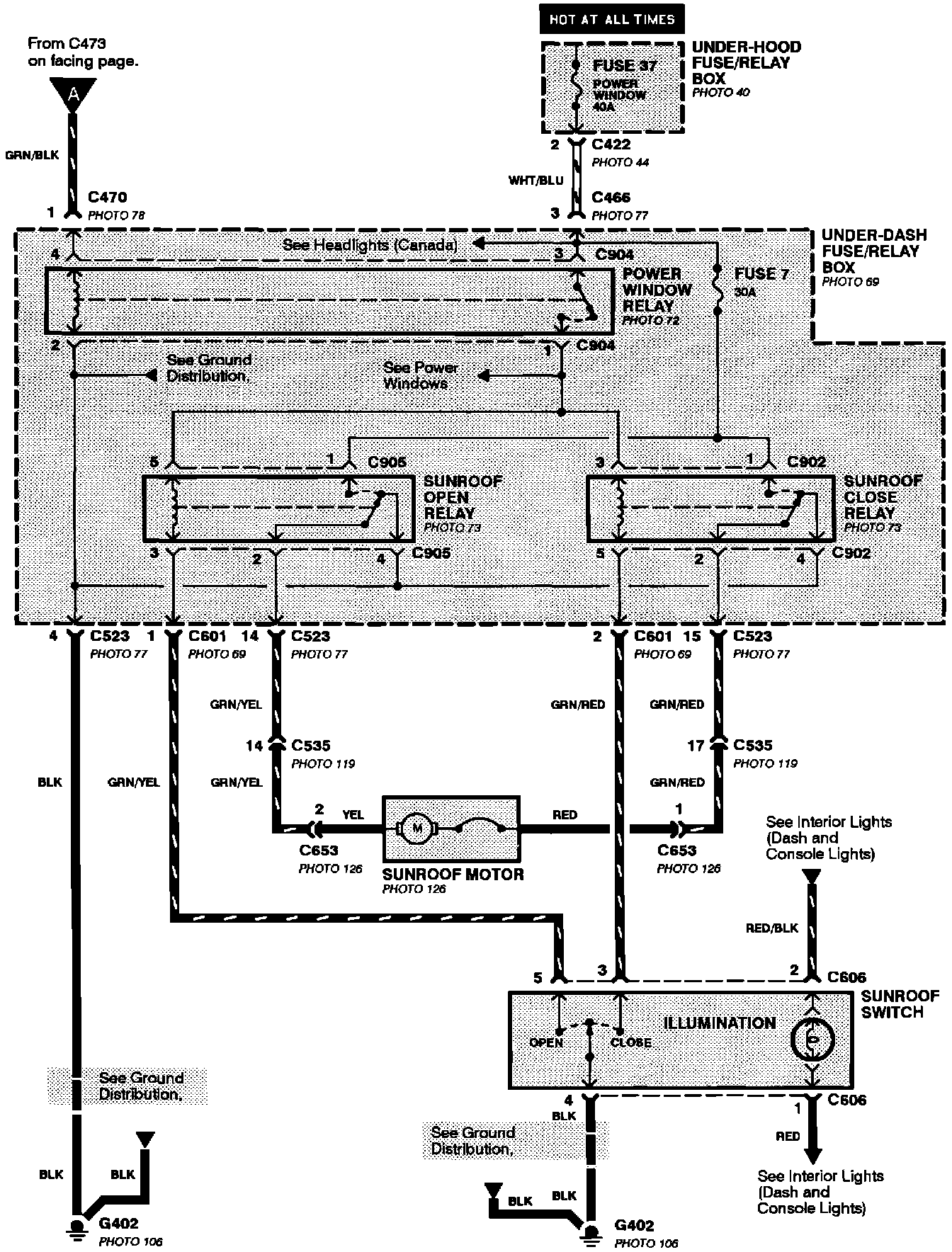

Power Sunroof: Key-off Timer Circuit:
