Electrical Diagrams

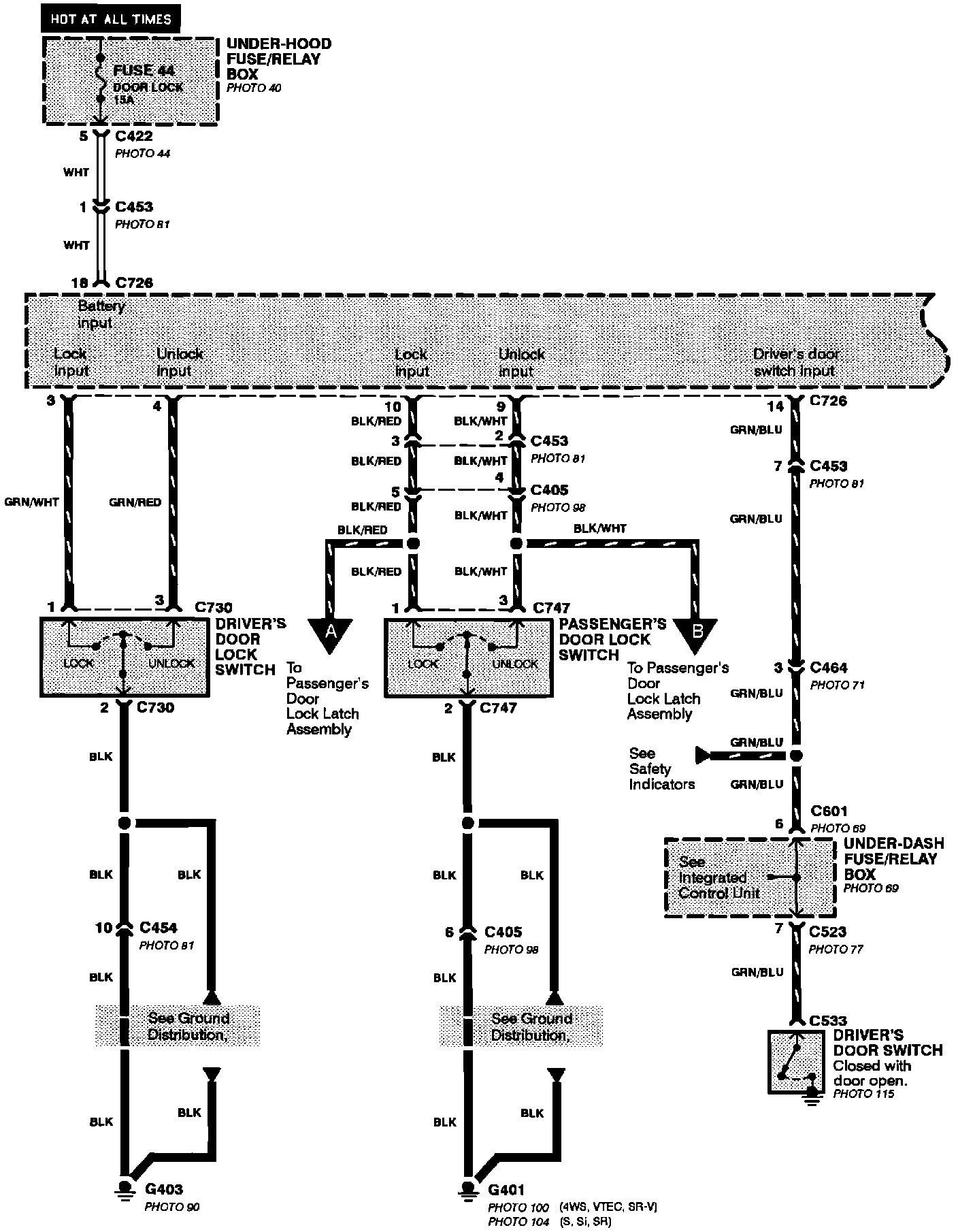

Power Door Locks: Switches:

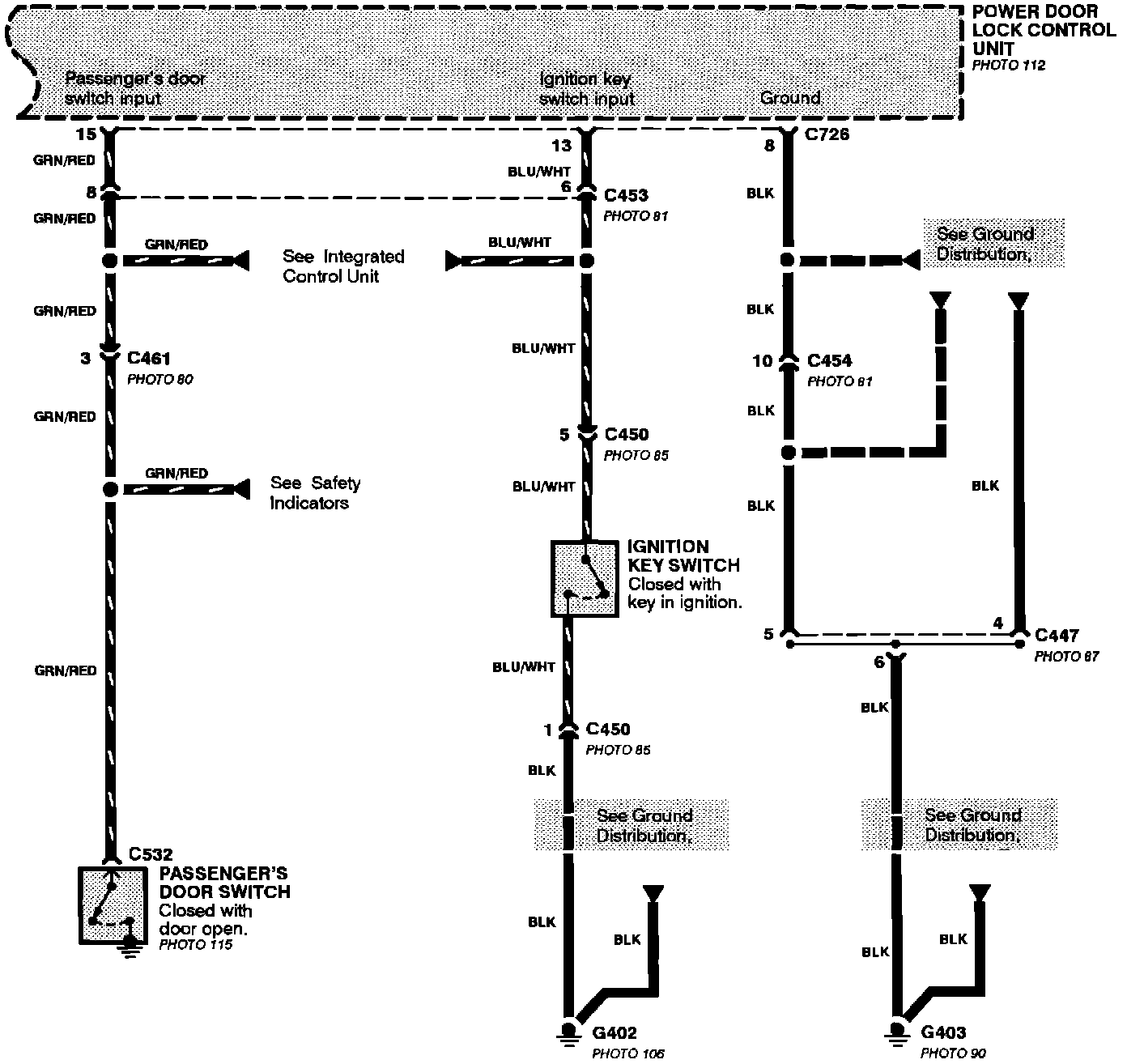

Power Door Locks: Switches:

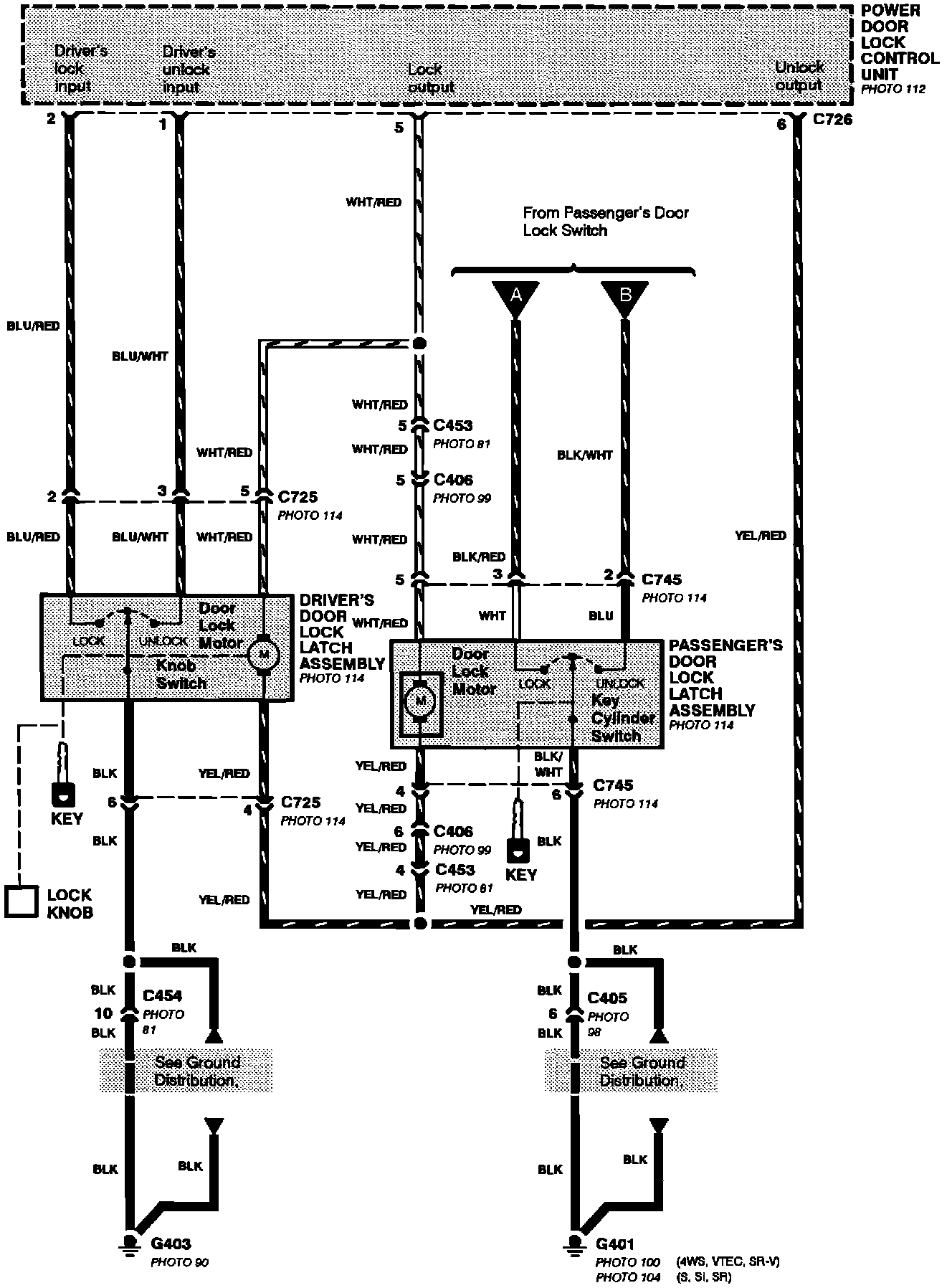

Power Door Locks: Motors:
