Radio - Buzzing In The Driver's Door

Bulletin No.
94-018

Model
1992 - 94
PRELUDE

Applicable To
ALL WITH POWER DOOR LOCKS

File Under
BODY

Issue Date
JUNE 17, 1994

Buzzing in the Driver's Door

SYMPTOM

A buzzing noise can be heard in the driver's door when the audio system volume is turned up to the midpoint or higher.

PROBABLE CAUSE

A plastic cover is vibrating against the inner door panel.

CORRECTIVE ACTION

Apply EPT Sealer 10T (see PARTS INFORMATION) to the back of the door lock control unit.

1. Remove the driver's door panel. Refer to page 20-3 of the service manual.

2. Remove the door lock control unit.

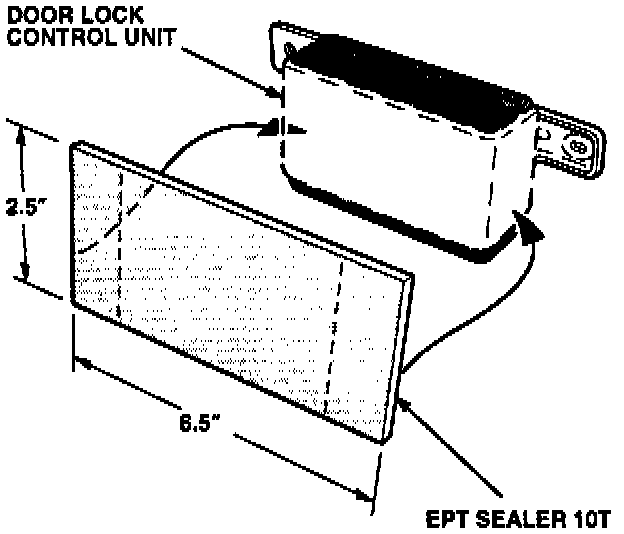

3. Cut a 6.5 x 2.5 inch strip of EPT Sealer 10T, and attach it to the back and sides of the door lock control unit.

4. Reinstall the door lock control unit in the door.

5. Reinstall the driver's door panel.

PARTS INFORMATION

EPT Sealer 10T:
P/N 06992-SA5-000, H/C 2086668

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Off ice. You must request consideration, and get a decision, before starting work.

Operation number: 818310

Flat rate time: 0.5 hour

Failed part: P/N 83583-SSO-A51ZA
H/C 4355871

Defect code: 042

Contention code: B07
