DTC 50
DTC 50
DTC's 33, 50

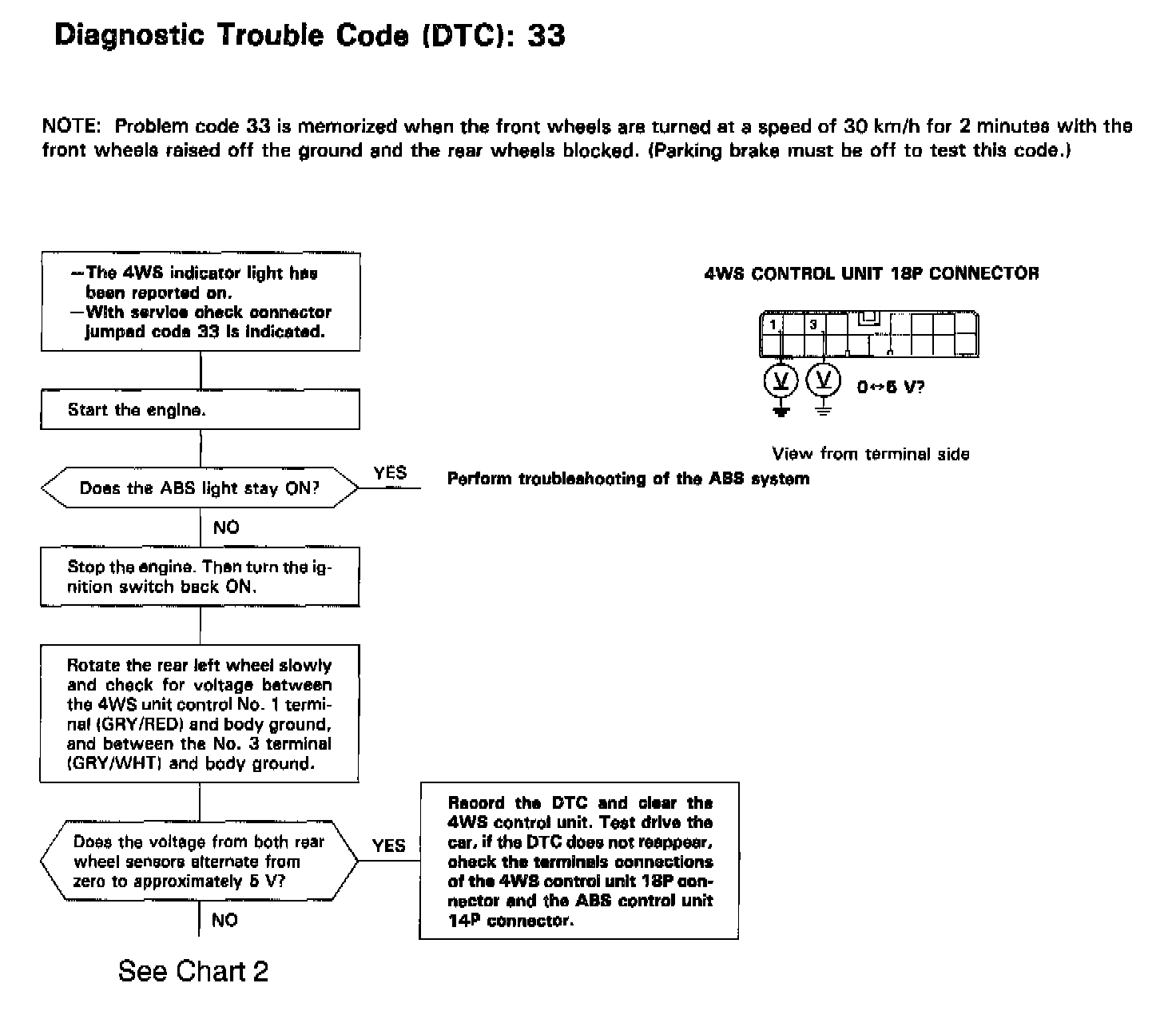

Chart 1 Of 3 DTC,s 33,50:

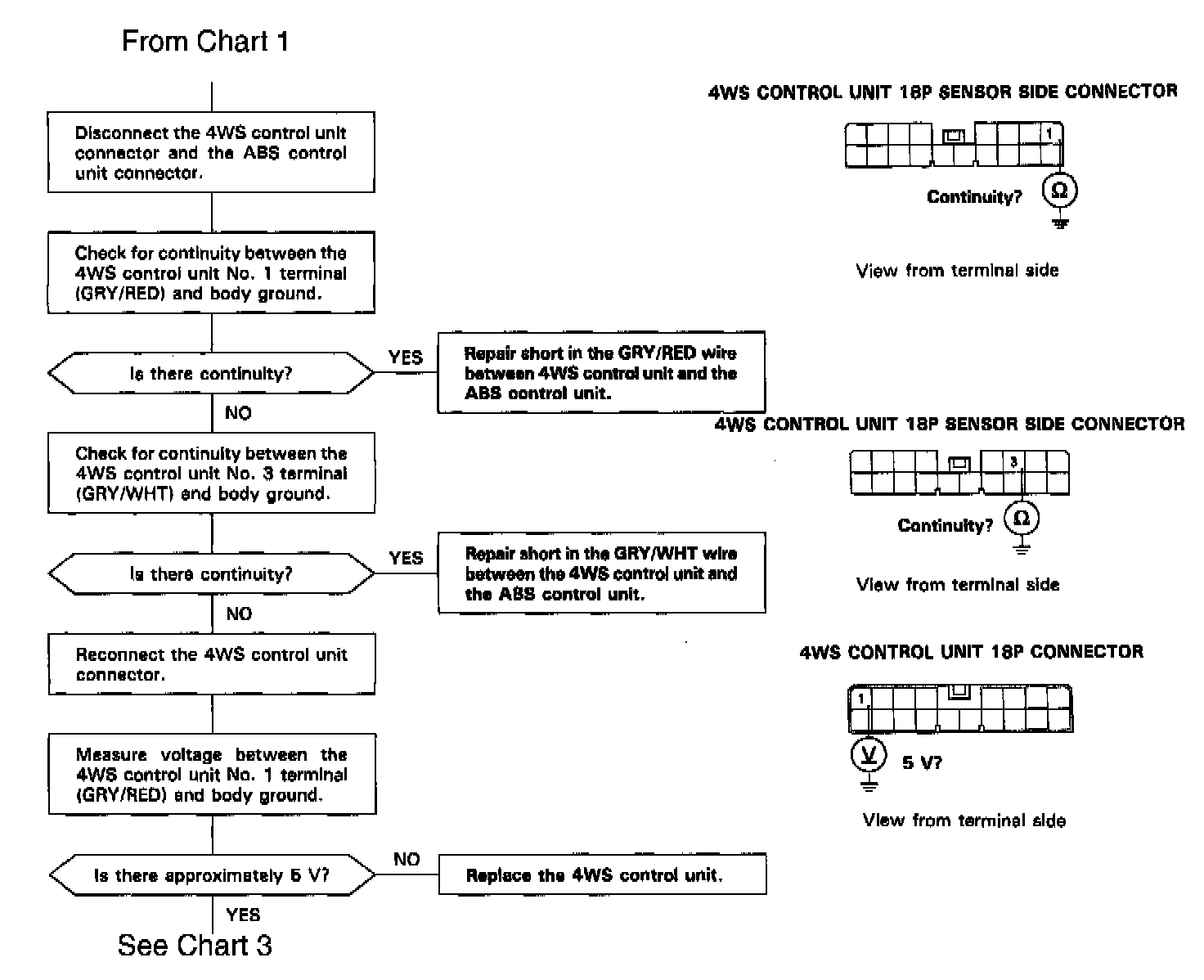

Chart 2 Of 3 DTC,s 33,50:

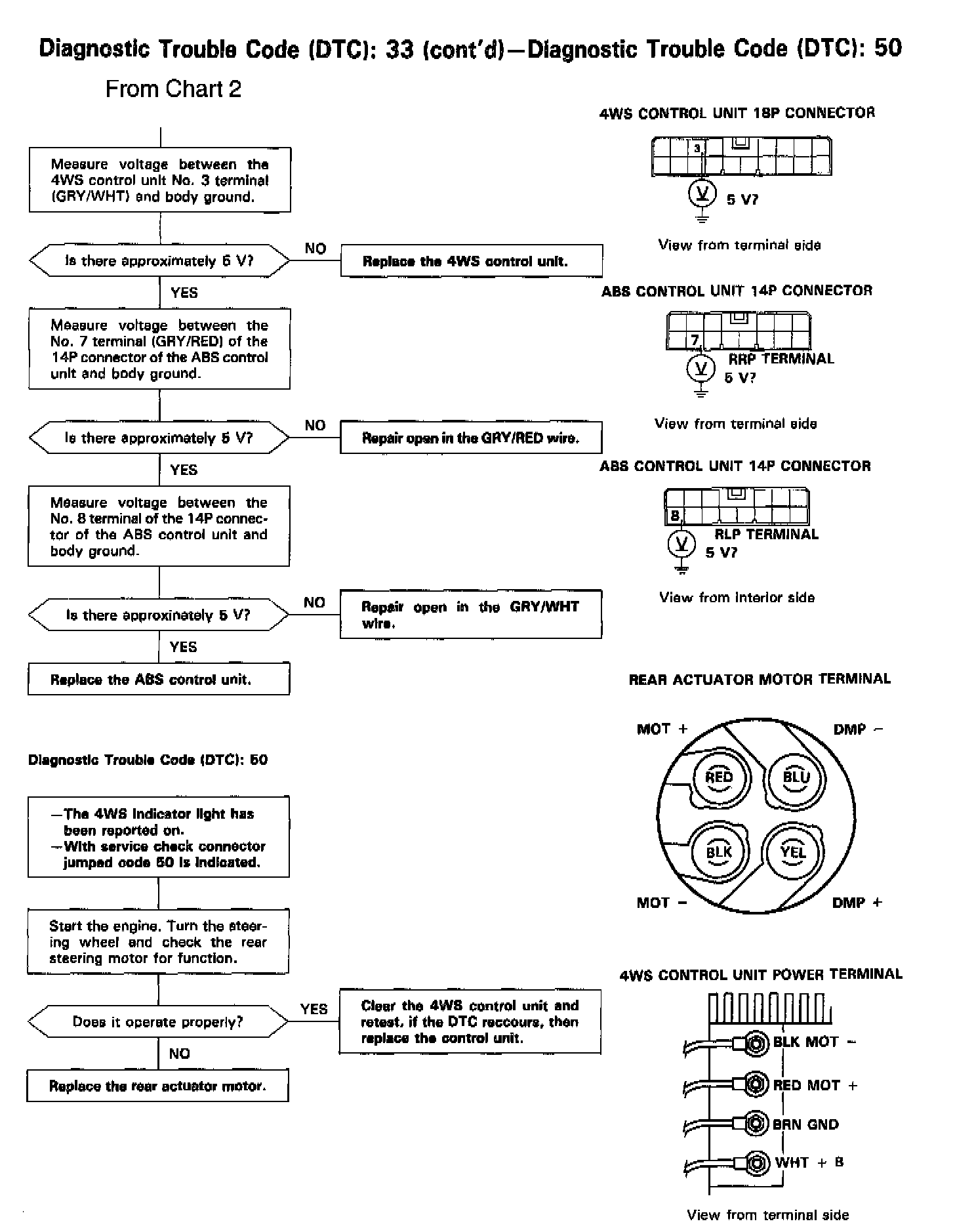

Chart 3 Of 3 DTC,s 33,50:
