Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 5 >> Engine Control System >> Part 1 of 2

Part 1 of 2

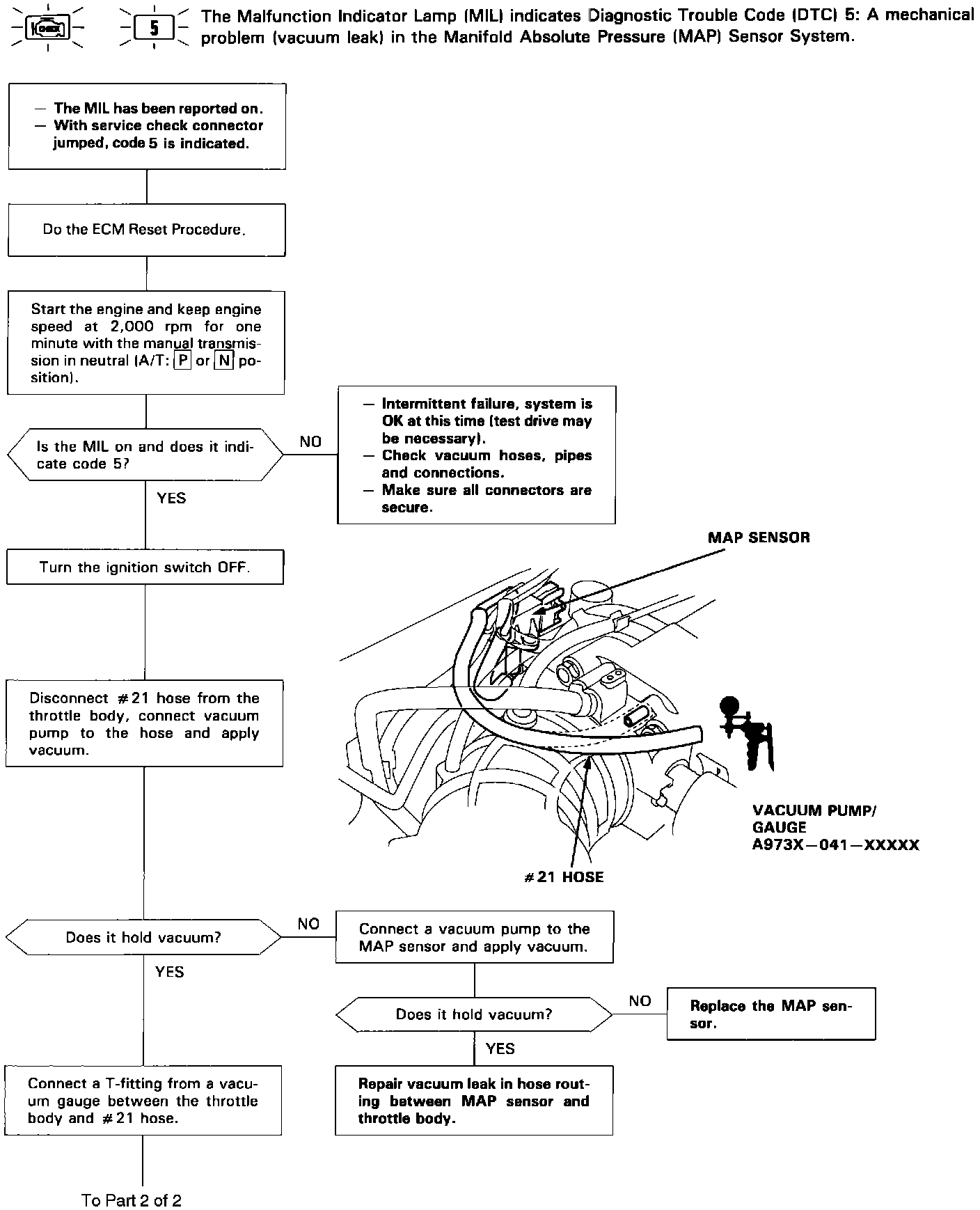

DTC 5: Manifold Absolute Pressure (MAP) Sensor (Part 1 Of 2):
