Four Wheel Steering Control System (4WS)

DTC's 10, 12, 16

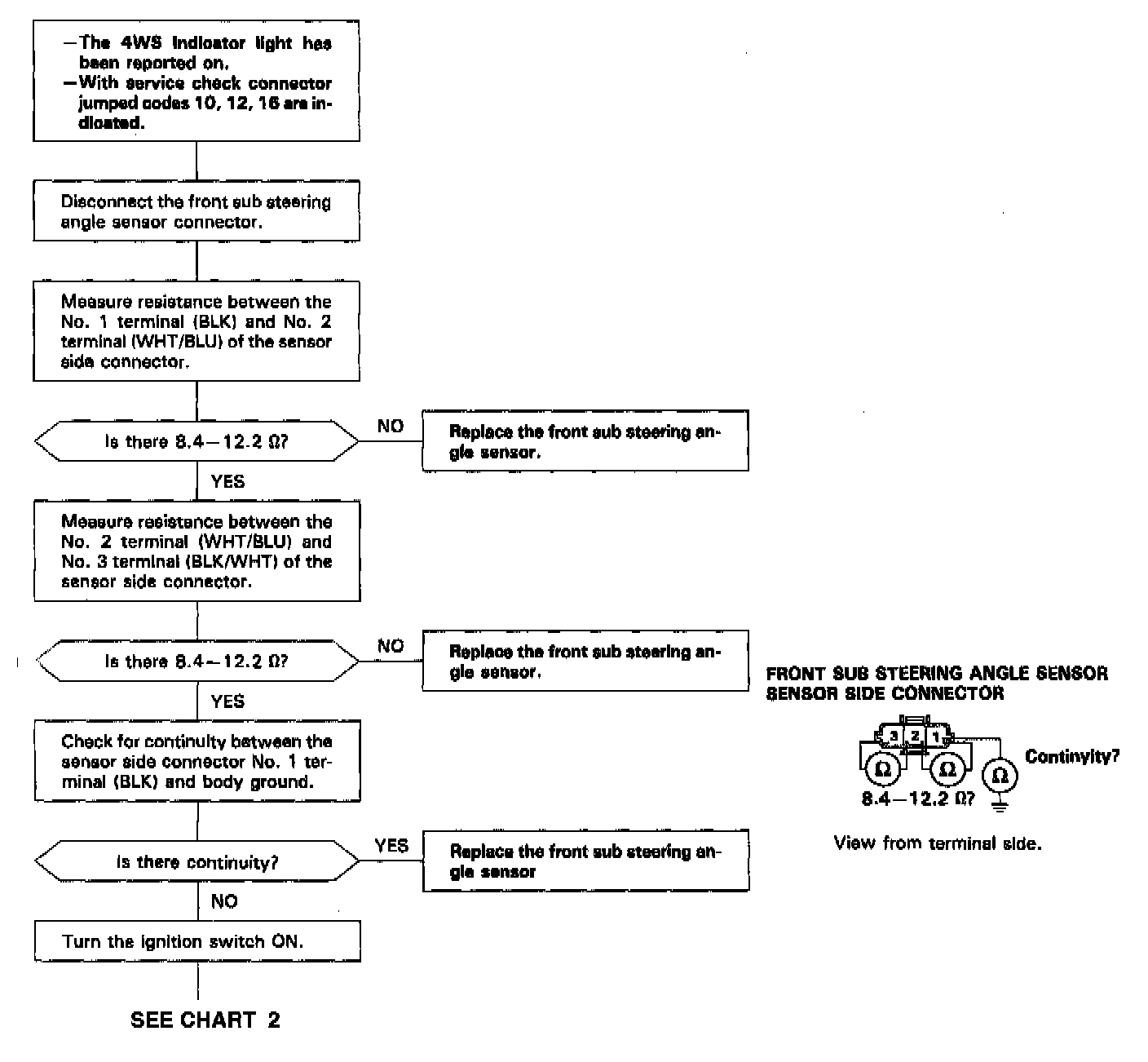

Chart 1 Of 5 DTC,s 10,12,16:





Chart 2 Of 5 DTC,s 10,12,16:

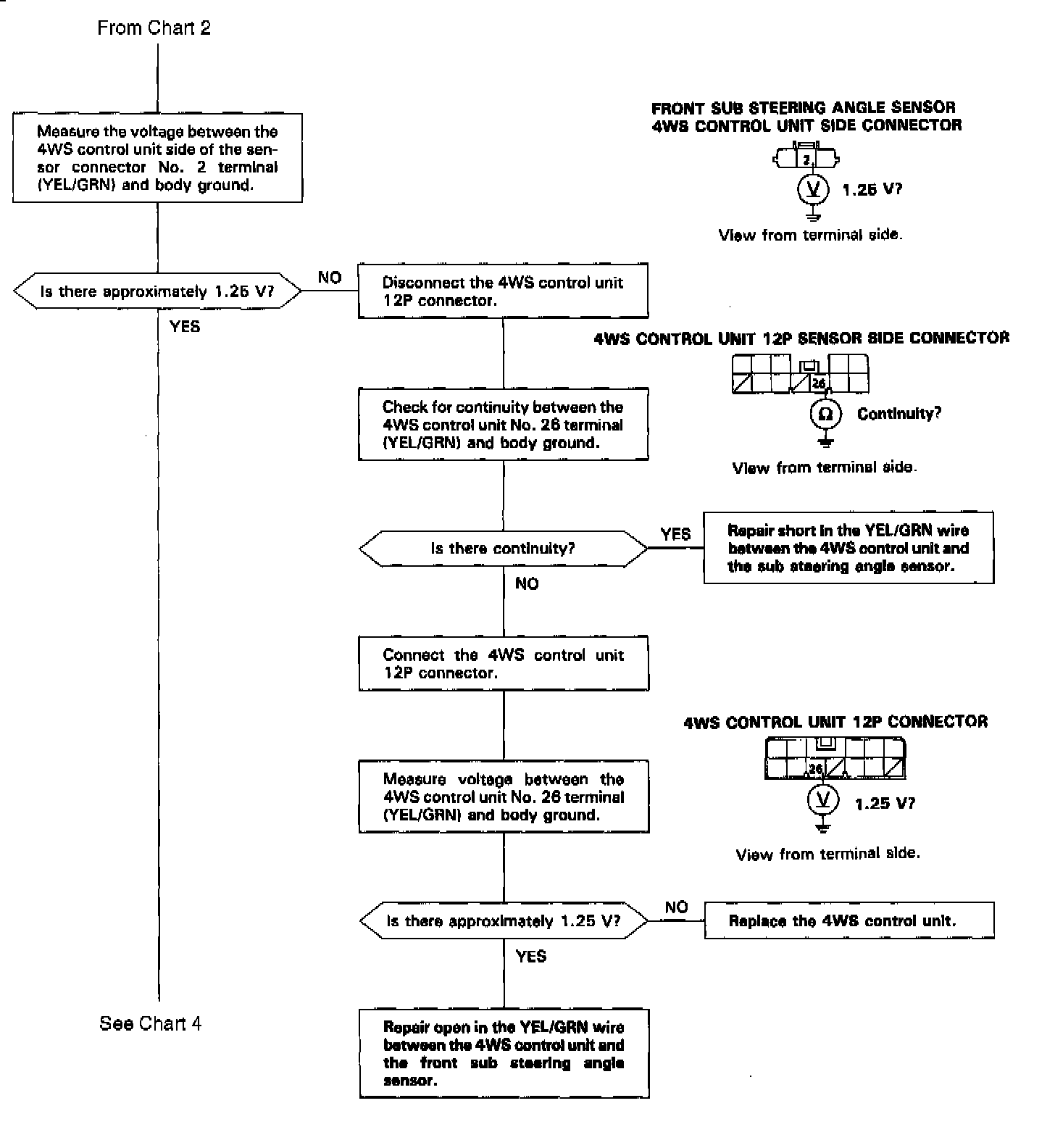

Chart 3 Of 5 DTC,s 10,12,16:

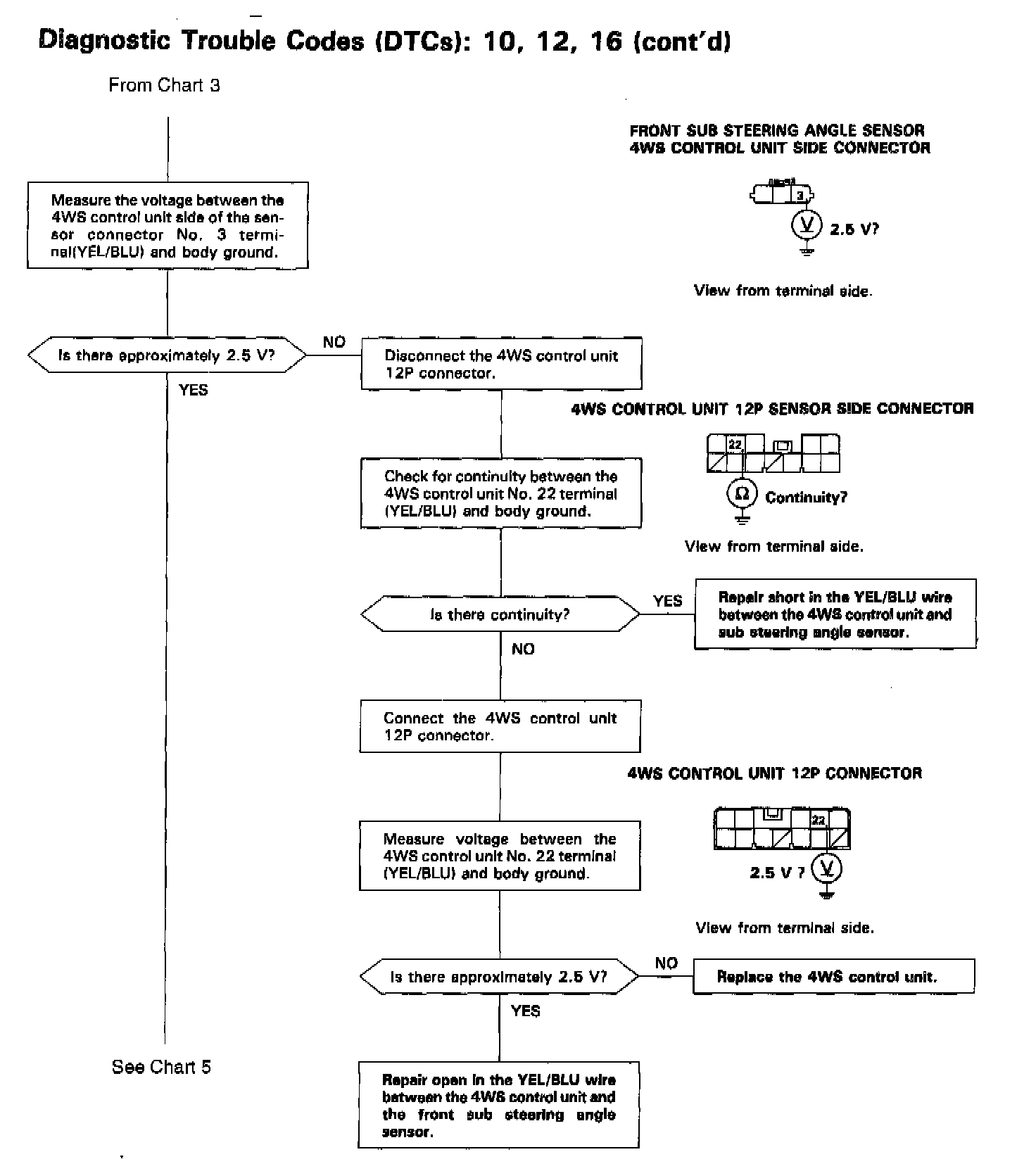

Chart 4 Of 5 DTC,s 10,12,16:

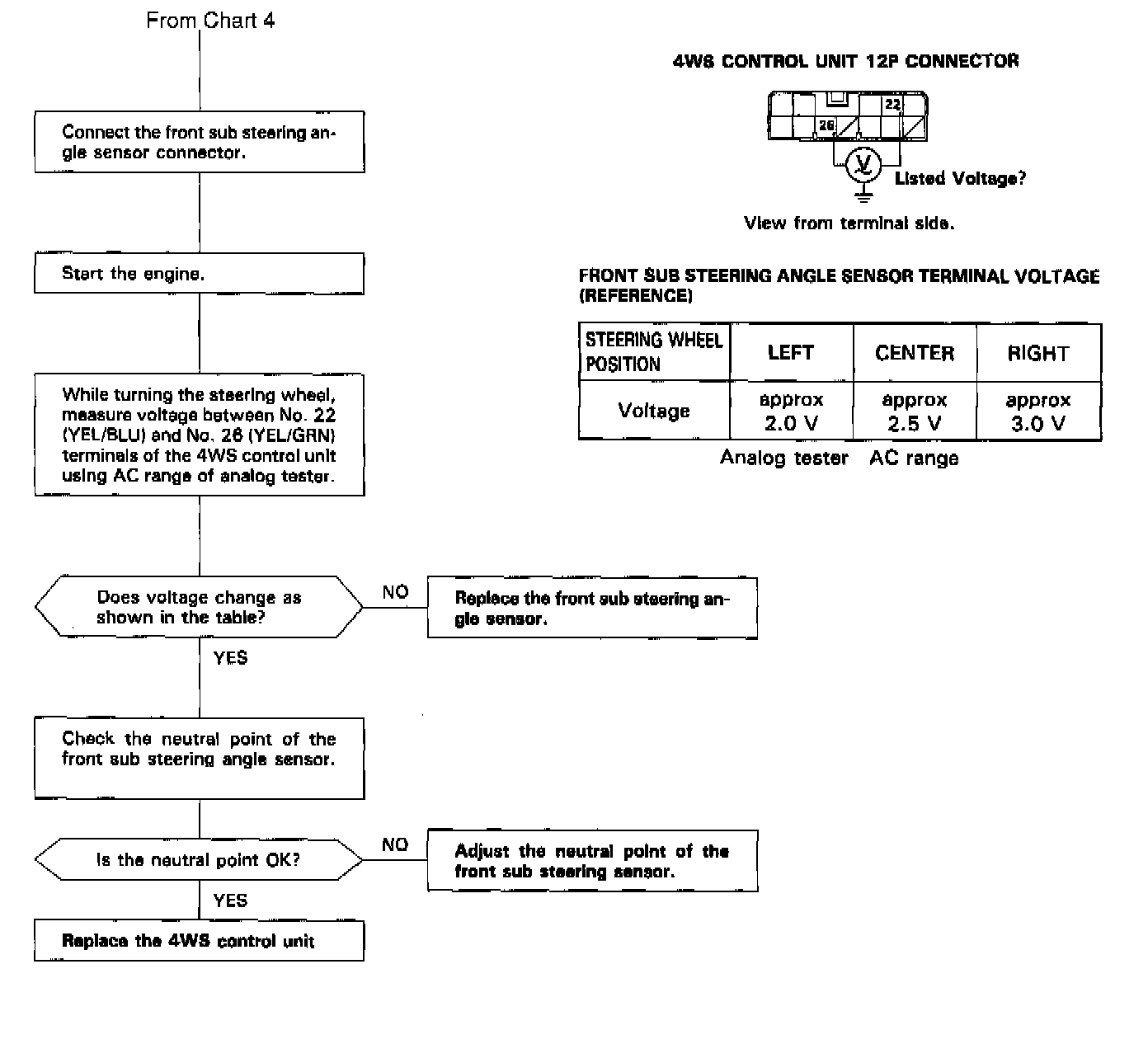

Chart 5 Of 5 DTC,s 10,12,16:
