Engine Control System

Check Engine Light blinks ten times:

Most likely a problem in the Intake Air Temperature (IAT) Sensor Circuit.

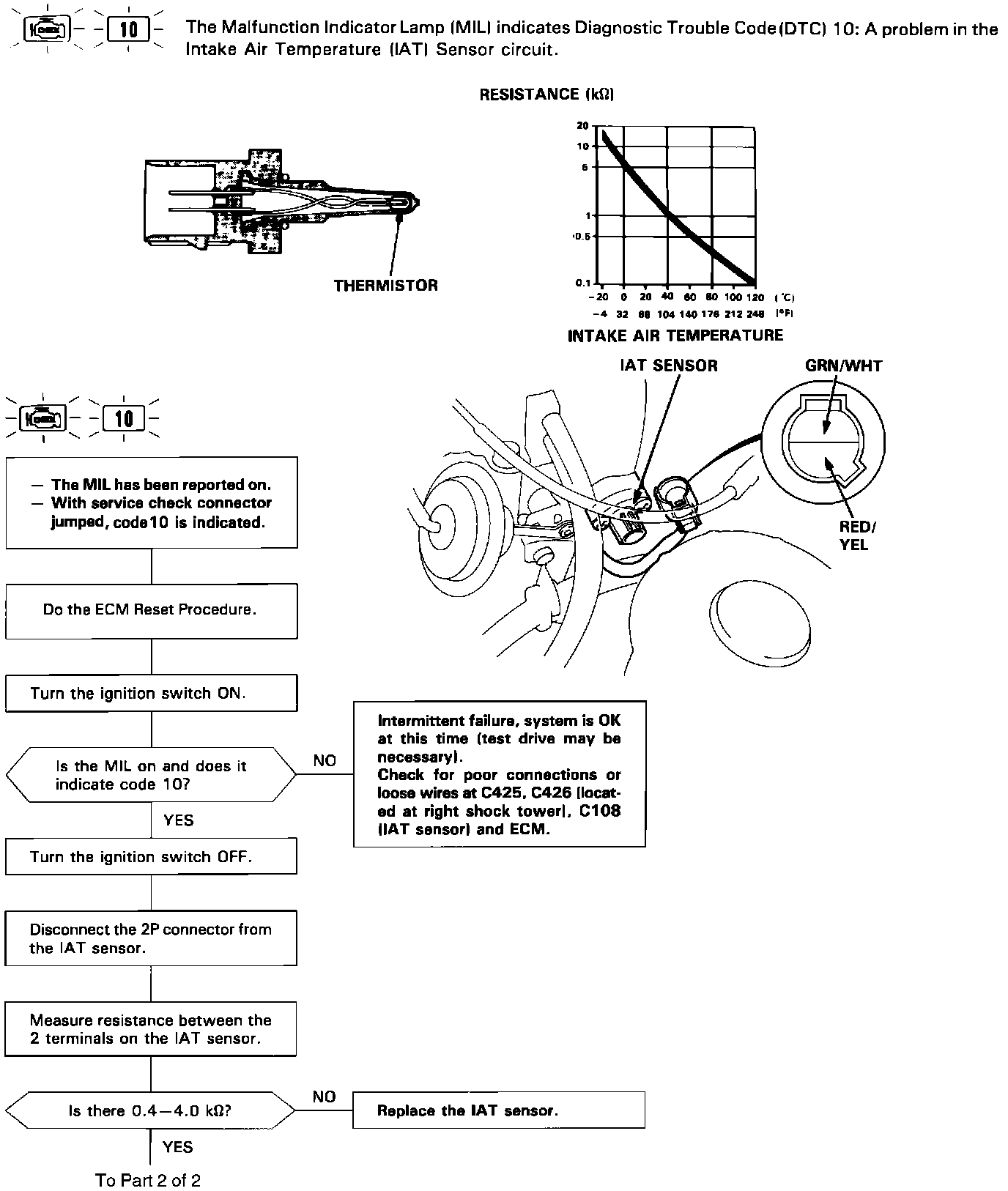

DTC 10: Intake Air Temperature (IAT) Sensor (Part 1 Of 2):

DTC 10: Intake Air Temperature (IAT) Sensor (Part 2 Of 2):

The IAT sensor is a temperature dependant resistor (thermistor). The resistance of the thermistor decreases as the intake air temperature increases as shown.

The Check Engine warning light may come on, indicating a system problem, when, in fact, there is a poor or intermittent electrical connection. First, check the electrical connections, clean or repair connections if necessary.
