Part 1 of 2 - Preliminary Inspection

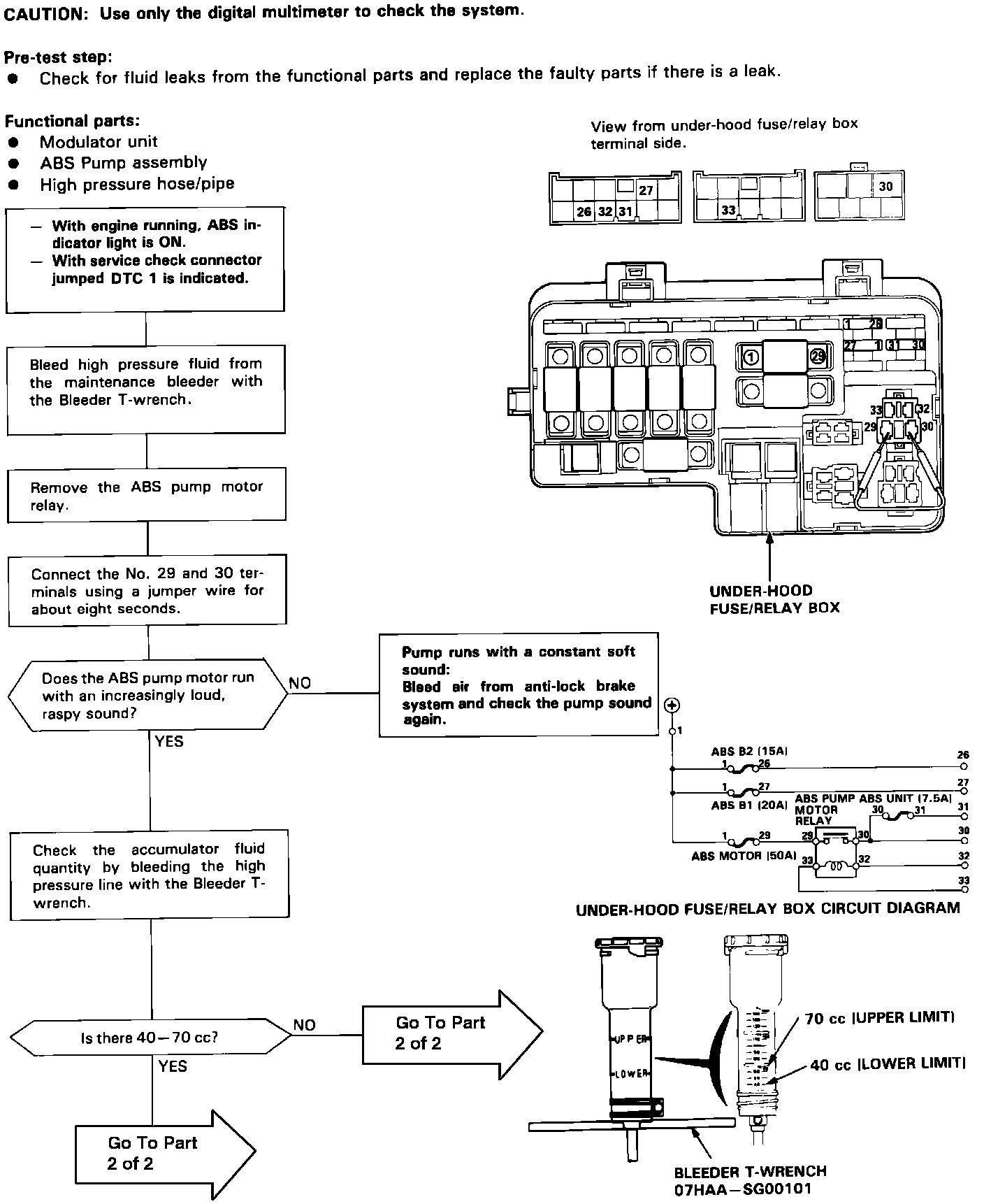

DTC 1: ABS Pump Over-Run (Part 1 Of 2):

CAUTION: Use only the digital multimeter to check the system.

Pre-test step:
- Check for fluid leaks from the functional parts and replace the faulty parts if there is a leak.

Functional parts:
- Modulator unit terminal side.
- ABS Pump assembly
- High pressure hose/pipe
