Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 1-2 >> Part 2 of 3 - Circuit Testing

Part 2 of 3 - Circuit Testing

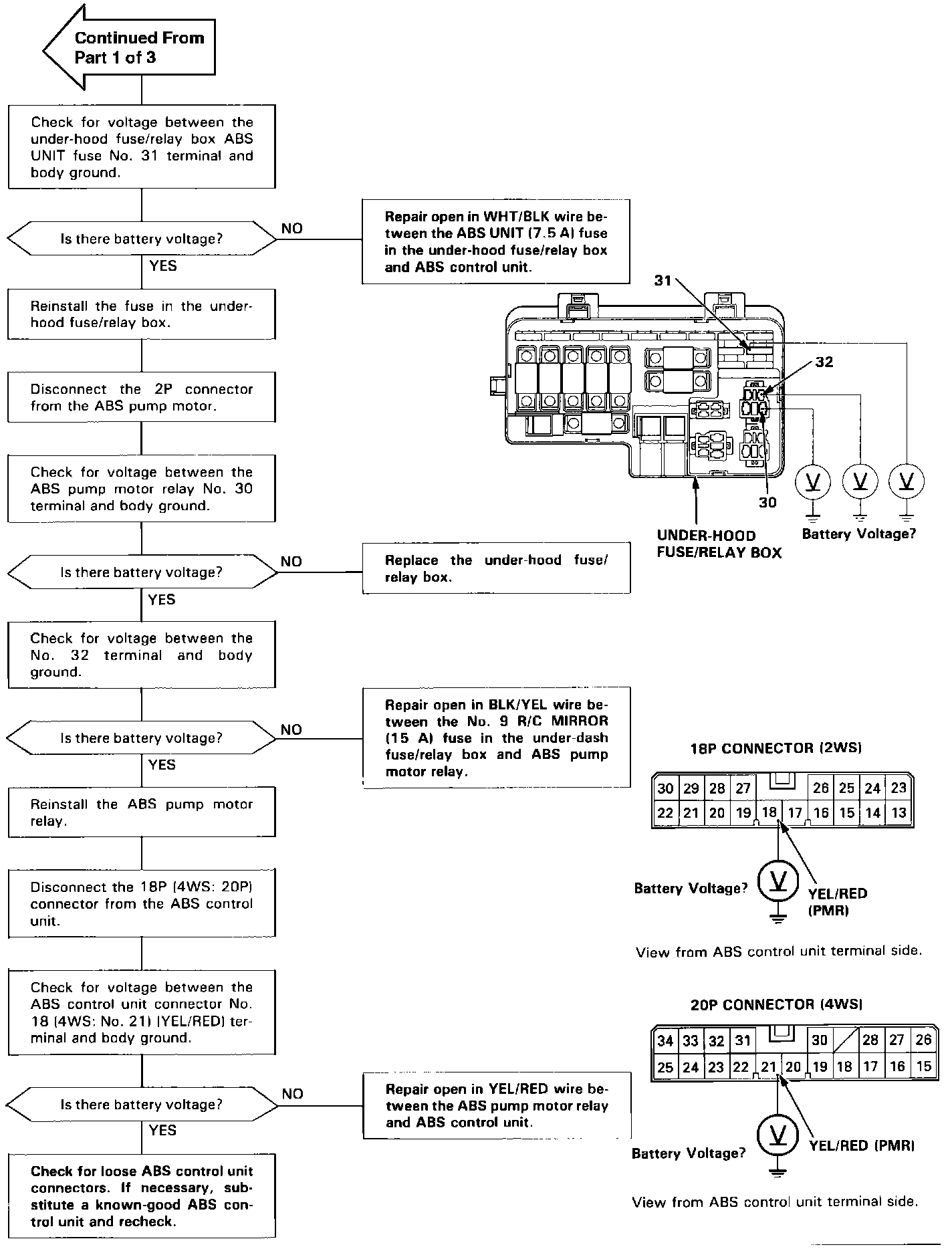

DTC 1-2: ABS Pump Motor Circuit Problem (Part 2 Of 3):
