Reverse Idler Gear

REMOVAL

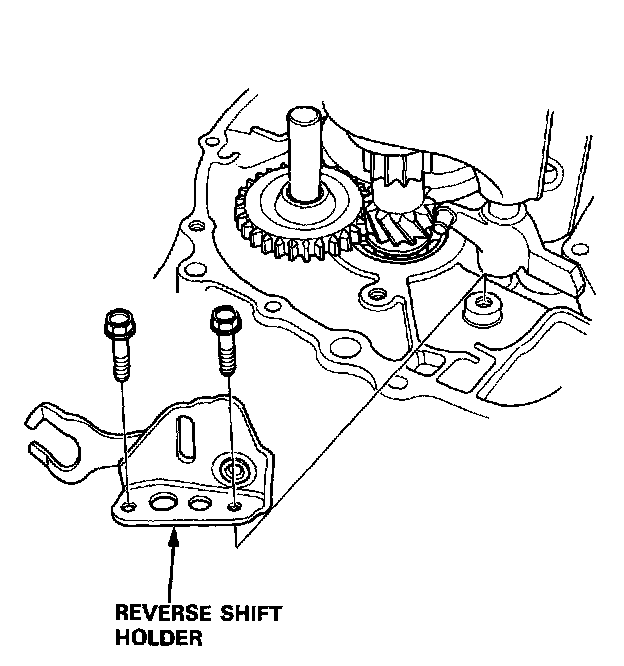

1. Remove the reverse shift holder.




2. Remove the reverse idler gear shaft and reverse idler gear.
