Reassembly

CAUTION: When installing the 3rd/4th and 5th synchro hubs, support the shaft on the steel blocks and install synchro hubs using a press.

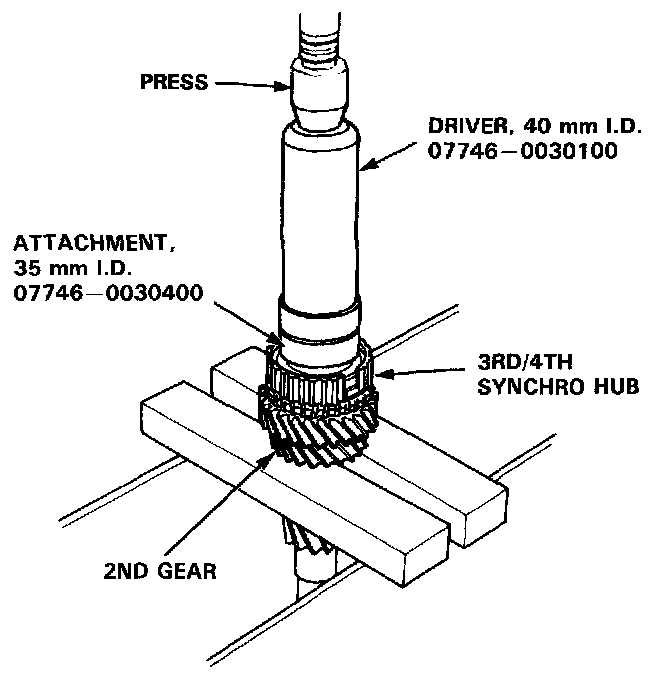

1. Support 2nd gear on steel blocks as shown, then install the 3rd/4th synchro hub using the special tools and a press as shown.

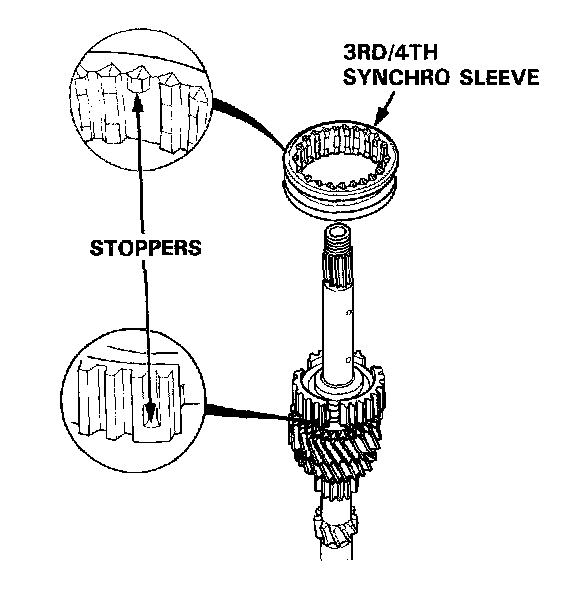

2. Install the 3rd/4th synchro sleeve by align the stoppers of the 3rd/4th synchro sleeve and hub.

NOTE: After installing, inspect the operation of the 3rd/4th synchro hub set.

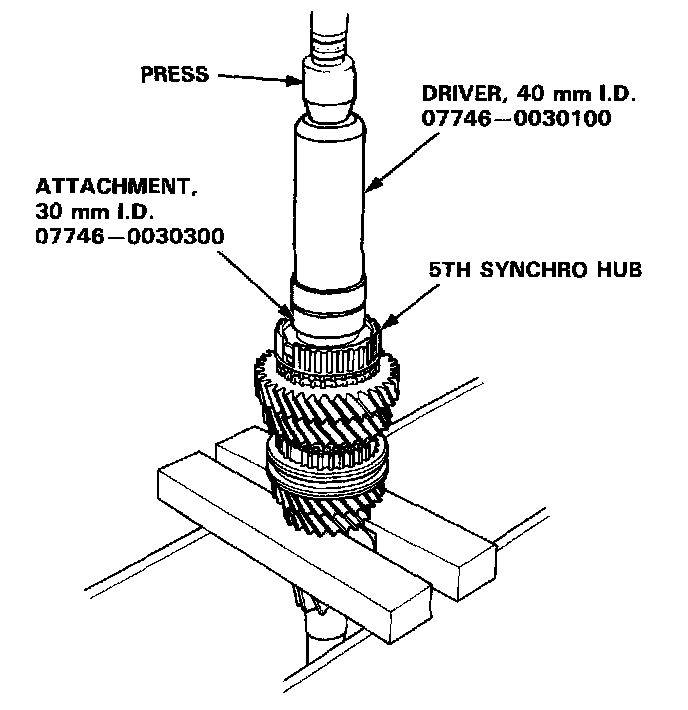

3. Install the 5th synchro hub using the special tools and a press as shown.

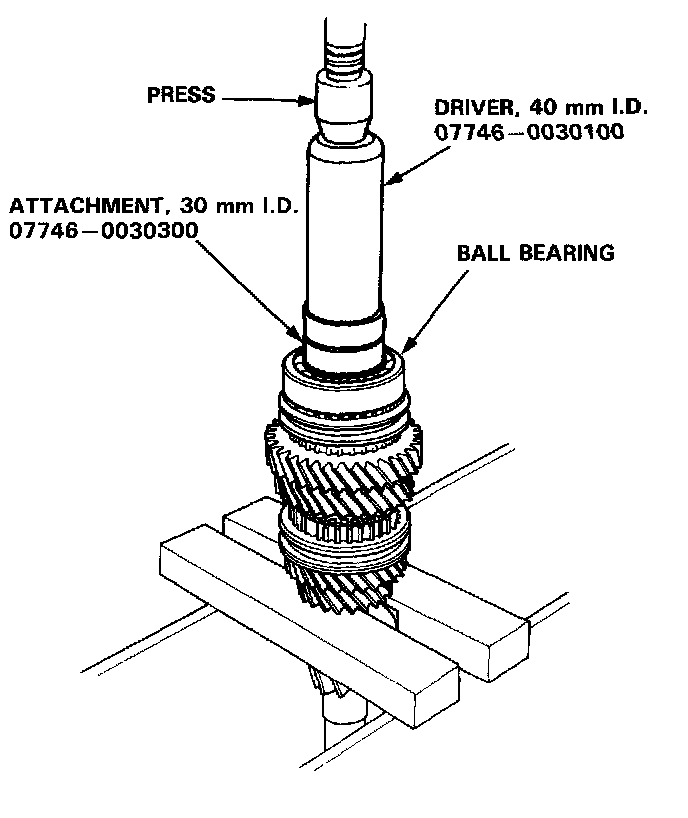

4. Install the ball bearing using the special tools and a press as shown.
