Disassembly

DISASSEMBLY

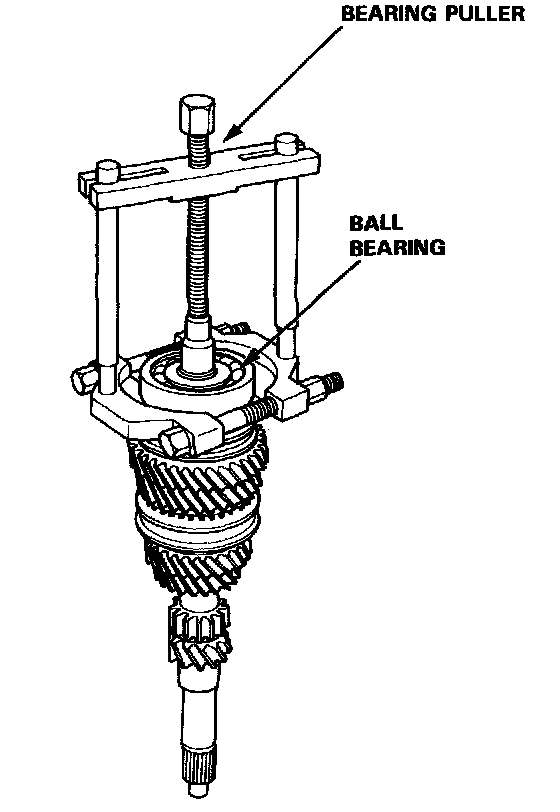

1. Remove the ball bearing using a bearing puller as shown.

CAUTION: Remove the synchro hubs using a press and steel blocks as shown. Use of a jaw-type puller can cause damage to the gear teeth.

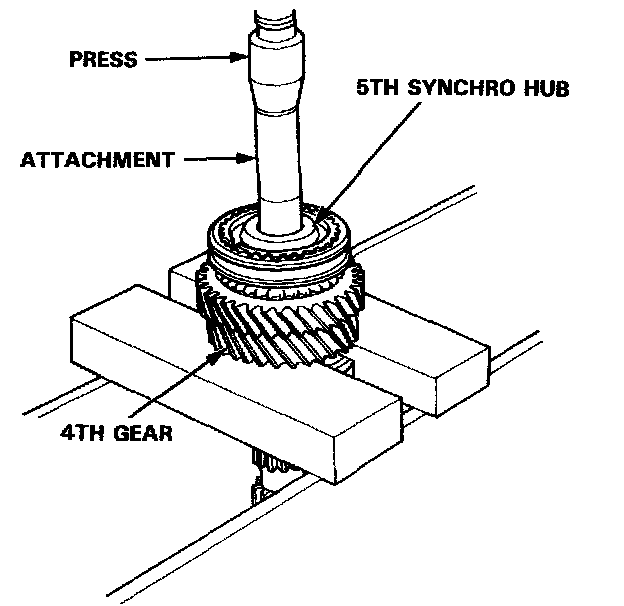

2. Support 4th gear on steel blocks as shown and press the shaft out of the 5th synchro hub.

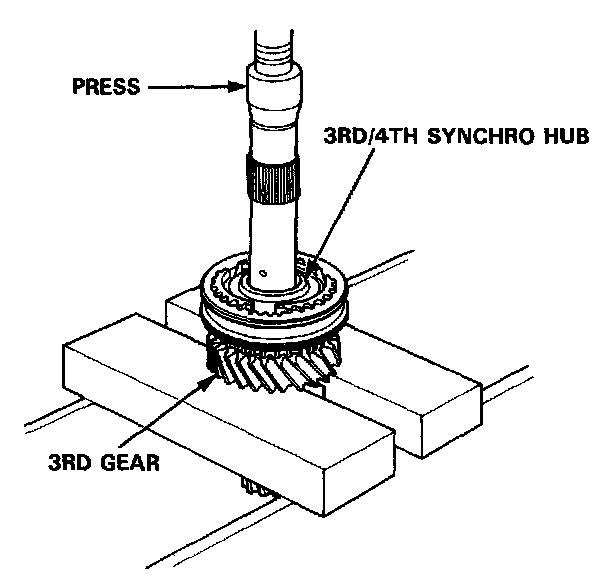

3. Support the 3rd gear on steel blocks as shown and press the shaft out of the 3rd/4th synchro hub.
