Reassembly

Reassemble the starter in the reverse order of disassembly.

Brush Holder Assembly:

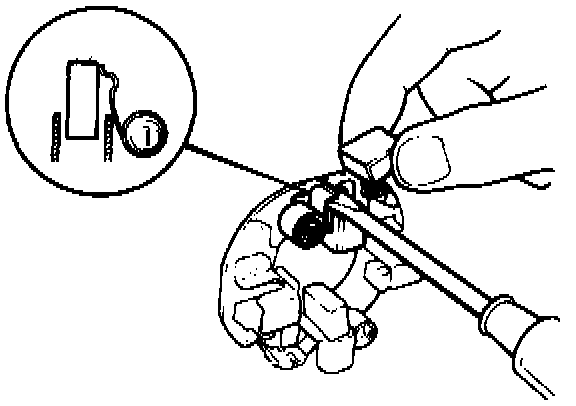

1. Pry back each brush spring with a screwdriver, then position the brush about halfway out of its holder, and release the spring to hold it there.

Installation Of Brush Housing Onto The Armature:

2. Install the armature in the housing. Next pry back each brush spring again and push the brush down until it seats against the commutator, then release the spring against the end of the brush.

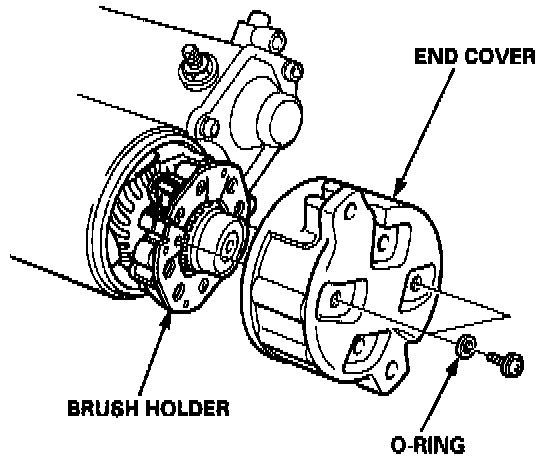

Starter Reassembly (Mitsuba Type):

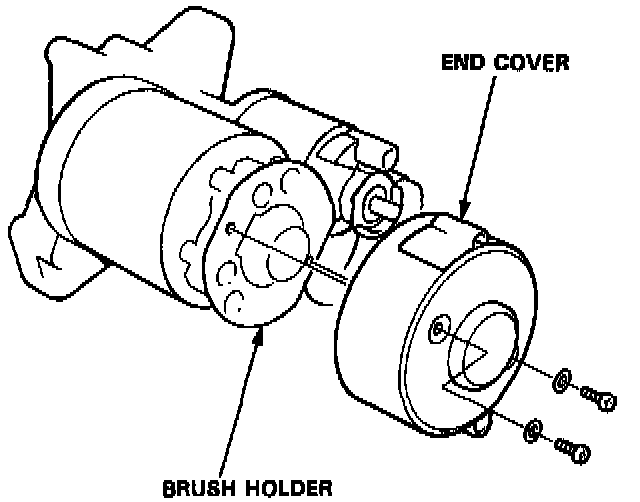

Installation Of End Cover Onto Starter Motor (Nippondenso Type):

3. Install the end cover on the brush holder.
