Under-Dash Fuse/Relay Box

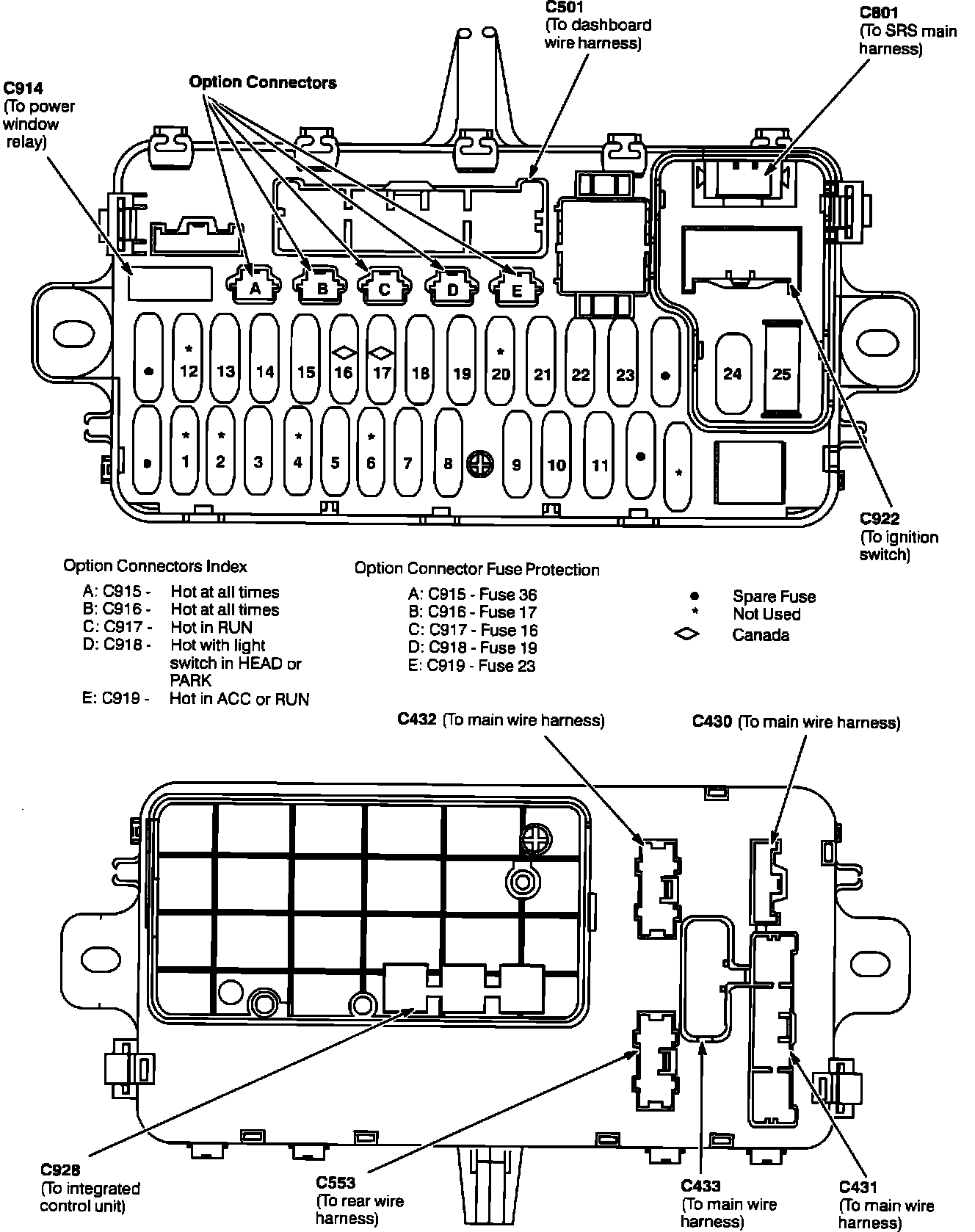

Under-dash Fuse / Relay Box:

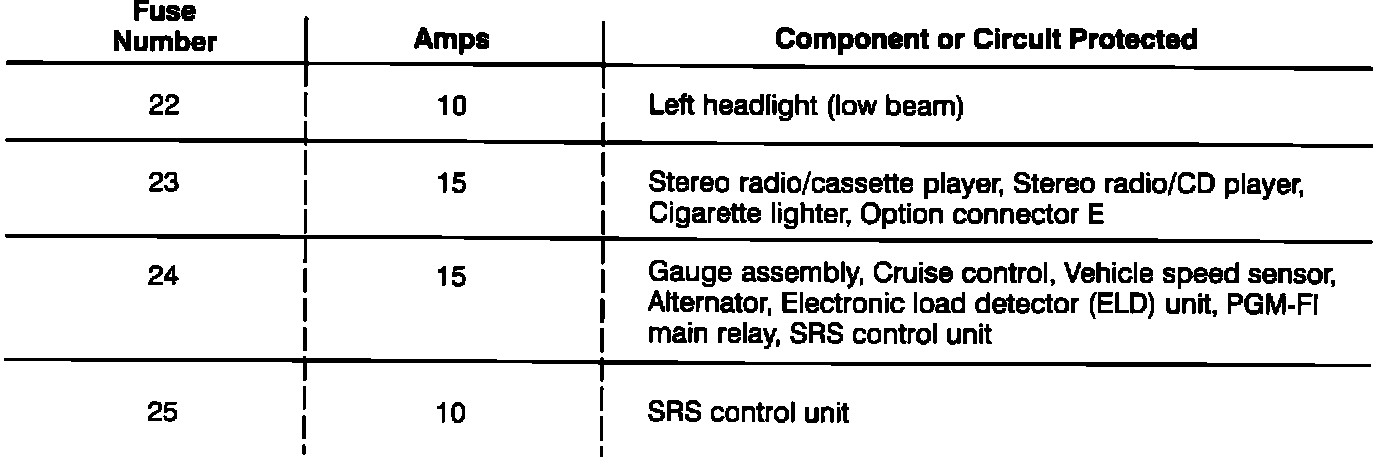

Component Or Protected Circuits:

Component Or Protected Circuits:
