Del Sol L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>
Connector Locations
>>
Trunk Area
Trunk Area

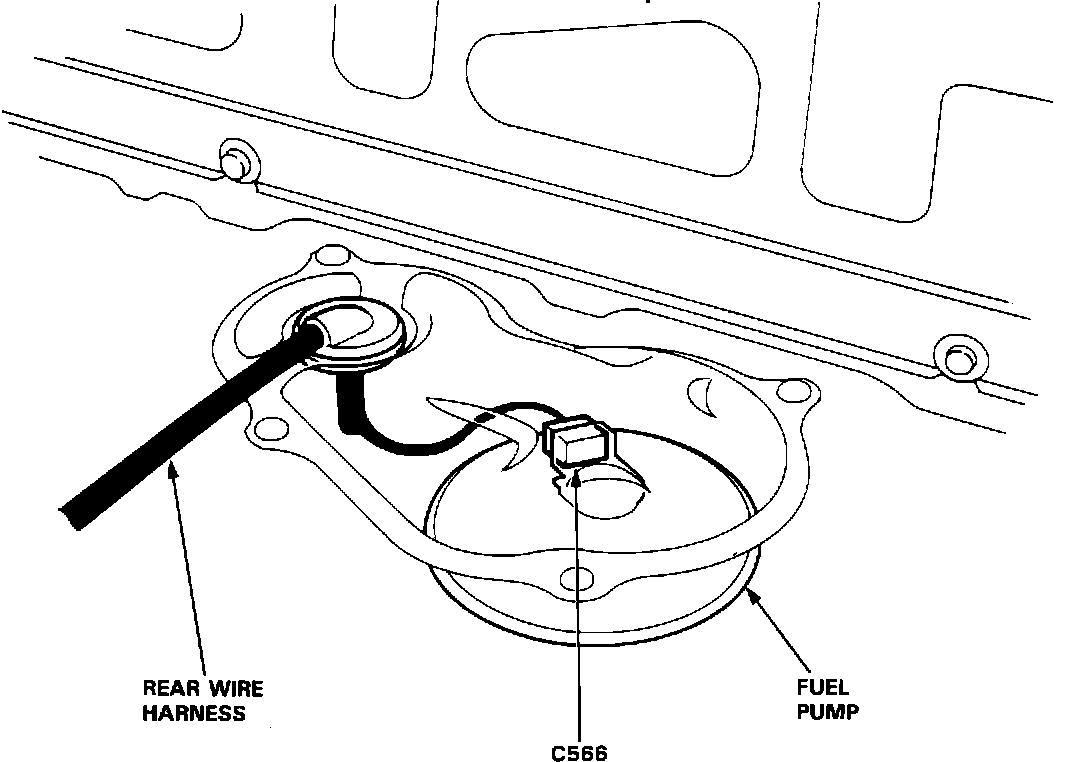

Wiring Harness Trunk Area:
